Yueqing Langir Electric Co., Ltd. >> Ls16 Waterproof Flat Stainless Steel Ring Illumination Momentary Pushbutton Switch

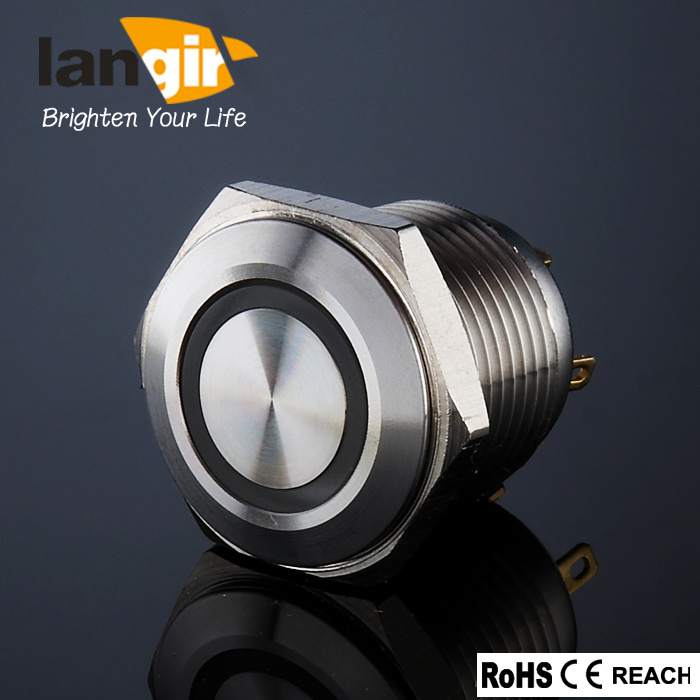

Ls16 Waterproof Flat Stainless Steel Ring Illumination Momentary Pushbutton Switch

Ls16 Waterproof Flat Stainless Steel Ring Illumination Momentary Pushbutton Switch
Price: US $ 3.58/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 20/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: Ls16-F-M1-S-R
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Is Customized: Yes
Material: Stainless Steel
Function: Momentary
LED Shape: Ring Illumination
Usage: Reset Button

Product Description

Ls16 Waterproof  Flat Stainless Steel Ring illumination momentary pushbutton switch
is_customized                     Yes
Material                                Stainless steel
Function                               Momentary
LED shape                          Ring illumination

TypeLs16-FLs16-F/RLs16-F/D
Illuminated TypeNon-IlluminatedRingDot
TerminalPin(2.8*0.5)



Max.Switch RatingIth:2A Ui:36VDC



Contact Ressistance≤50mΩ



Insulation Resistance≥1000mΩ



Dieletric Strengh2000VAC



Operation Temp_20C~+55C



Mechanical Life1000000 Cycles



Electric Life200000 Cycles



Contact MaterialSliver Alloy



Torque5~14Nm



Operation Pressure3~5N



ProtectionIP65/IK08



Material





ActuatorStainless Steel/*Anodized Aluminum



BodyStainless Steel/Nickel Plated Brass/*Anodized Aluminum
TypeLED



BasePBT



Voltage6V/12V/24V/36V/110V/230V



LifeApprox:40000 hours




Profile

LANGIR A professional design, manufacture of Anti Vandal Switches, Piezo switches, Capacitive switches, Piezo Keypads and DC circuits - Miniature circuit-breakers for DC and solar generation; The switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.

Established in 2009, Langir Company has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Langir products have exported to many regions and many countries.

We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.

Assets

Technical and industrial excellence:

1. Strong technical expertise: R&D departments, large number of design tools, technological

Monitoring…

2. In-house design and fabrication of tooling

3. Control of numerous technologies and all the production processes

4. Large production capacity: Automated processes

Quality of products and services:

1. The widest product offering on the switch market

2. Numerous approvals and certifications (RoHS, REACH, CE, CCC, CB and TUV … )

3. Continuity in the supply of all product ranges

4. Industrial autonomy

Engineering & Production

LANGIR vertical integration for customer service from raw material transformation - plastic powders, metal bands - to finished products, through the design and production of tooling, LANGIR controls all the production stages. LANGIR has a strong reputation for quality, confirmed by the ISO9001: 2008 certification. Our products are designed and produced in accordance with quality standards and environmental requirements.
