LSZH Jacket Duplex Sc-LC Fiber Optic Patch Pigtail for Optical Access Network Telecommunication

Name: LSZH Jacket Duplex Sc-LC Fiber Optic Patch Pigtail for Optical Access Network Telecommunication
Brand: all-electronics-online.com
SKU: 808308115
Availability: InStock
Rating: 4.8 (77 reviews)

Price:	US $ 0.2/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC-LC Fiber Optic Patch Cord
Connector:	LC/Sc/FC/St...
Od:	0.6/0.9/2.0/3.0mm
Ce:	RoHS, SGS, ISO
Minimum Order Quantity:	20PCS
Packaging Details:	100PCS/CTN
Outer Sheath Color:	Black
Inside:	Ceramic
Fiber Type:	Single Mode
Fiber Counts:	Simplex or Duplex
Application:	Fiber Optic Equipments
Certification:	Reach
Type:	Fiber Optics
Connection Structure:	Optical Fiber
Core:	2-144 Core
Brand:	OEM or Tw-Scie
Sheath Material:	ABS

Product Description

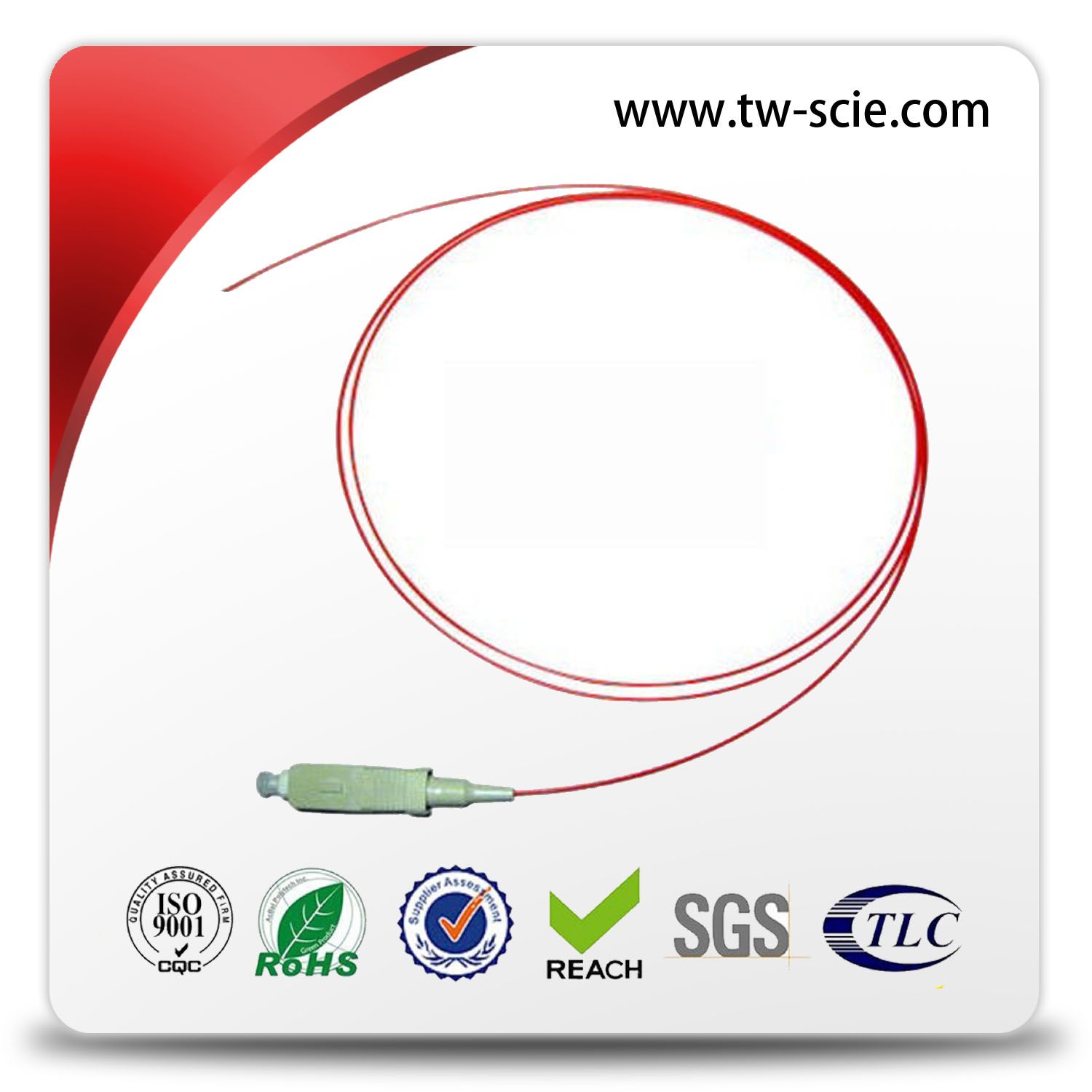

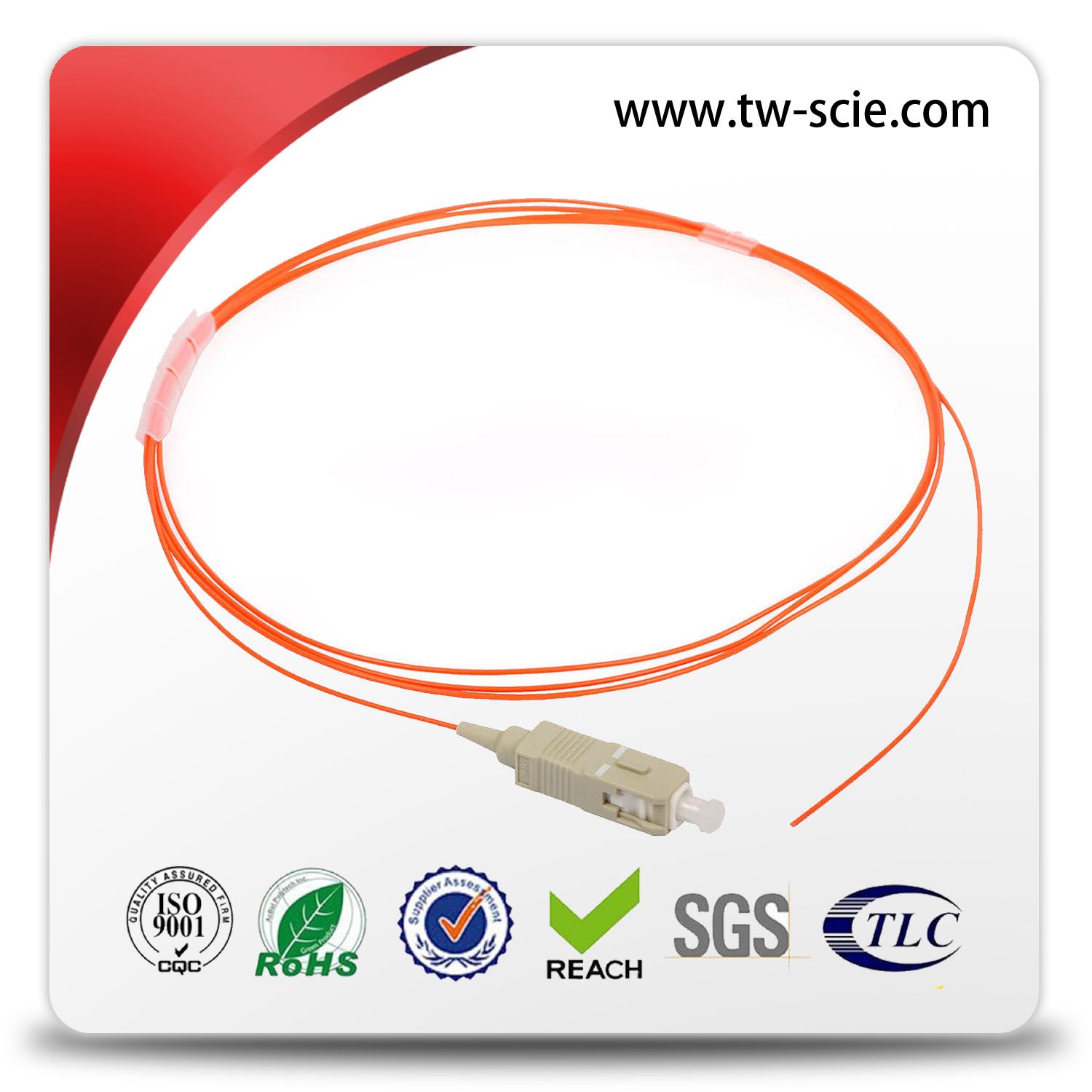

LSZH Jacket Duplex SC-LC Fiber Optic Patch Pigtail for Optical Access Network Telecommunication

Quick Details:

LC, SC, OM3, OM4 fiber patch cord
Boot color: Beige, Red, Black
Mode: SM, MM, OM3, OM4
Cable core: Duplex
Ferrule End-face: PC, UPC
Cable color: Orange, Aqua, Volient
Cable diameter: 0.9mm, 2.0mm, 3.0mm
Cable jacket: PVC, LSZH, OFNR, OFNP

Features:

Guaranteed Zero Defects
Insertion & Return Loss Tested
Serialized & Individual Test Records
Meets Telcordia Endface GeometryRequirements
Custom Configurations Available at No Extra Charge

Applications:

Optical access network
Telecommunication networks
Fiber optic communication networks
CATV, LAN, MAN, WAN, Test &Measurement

Specification:

Item	Single Mode	Multi Mode
Insertion Loss	<= 0.2dB	<= 0.3bB
Return Loss	PC≥50dB, UPC≥55dB, APC≥60dB
Insert-pull Test	1000 times
Repeatability	<=0.1
Tensile strength	≥10KG
Operating Temperature	-40°C ~ +85°C
Ceramic Ferrule Specification	125.5um concentricity deviations:<=1um	127um concentricity deviations:<=3um
Suitable Fiber	9/125um	50/125um,62.5/125um

Packing:

One piece per PE bag with stick label (we could add customer's logo in the label.)

Shipping:

Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
Airport to Airport: by air
Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

	FAQ

1.Why choosing TTIFIBER Cable be one of your partner?
(1).Professional manufacturer: Low MOQ, free samples are available.
2).Quality assurance:Stable high quality.
(3).Customers solutions:Quick.
(4).Win-Win Price:Save much costs, bring more benefits for customers.

2. Do you accept OEM, such as: print our LOGO?
Yes, OEM order is welcome, Customized Logo is available.

3.What's the method of shipment?
The goods will be sent by International express, such as DHL/Fedex. It takes 3~7 days.

Tag:

multimode fiber patch cord,

fiber optical cable

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
