Product Description

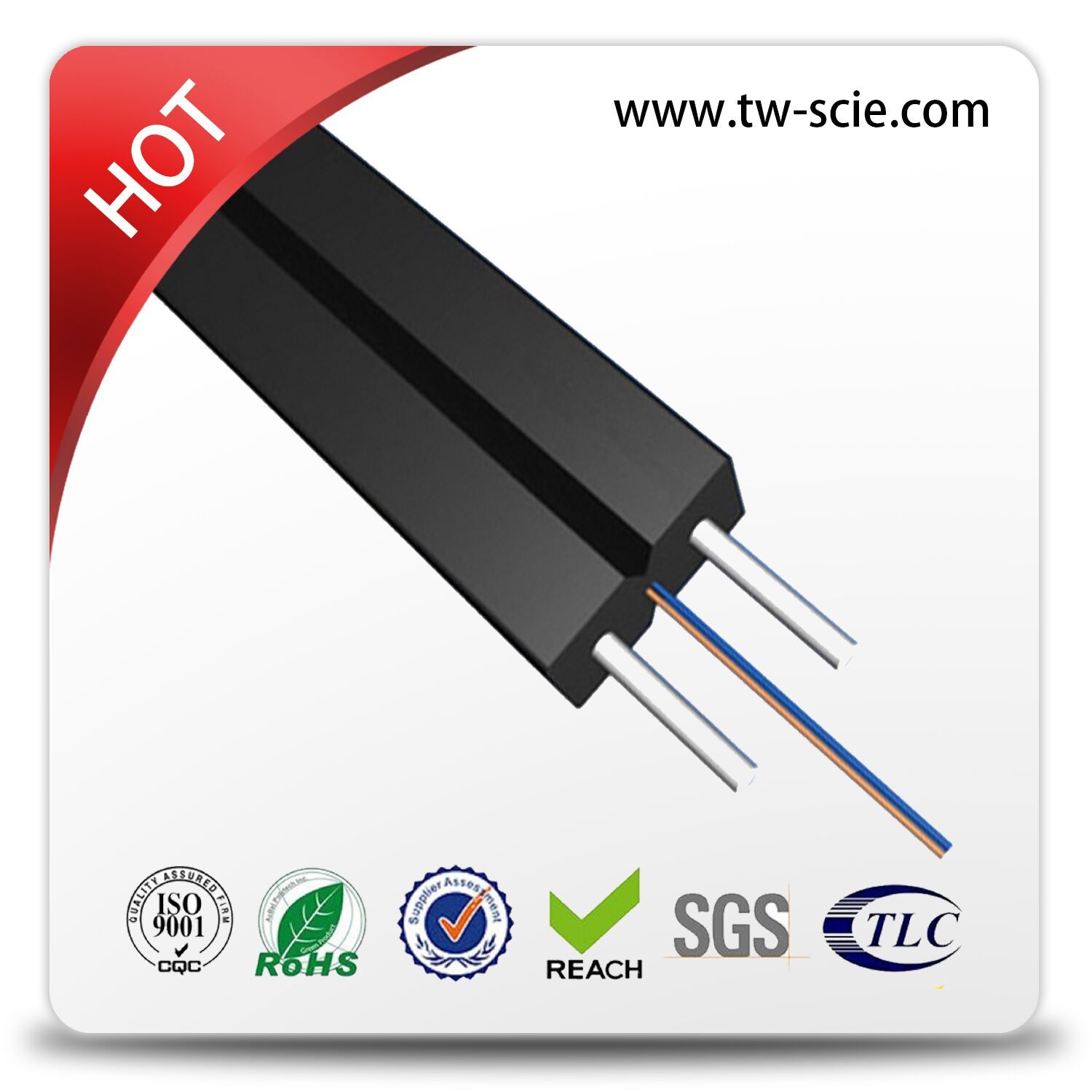

Lszh Sheath FTTH Drop Cable / 2 Core Fiber Optic Cable
Description:

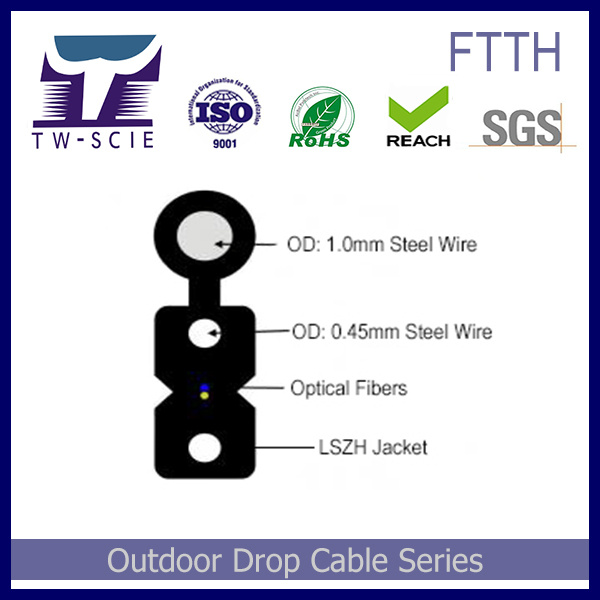

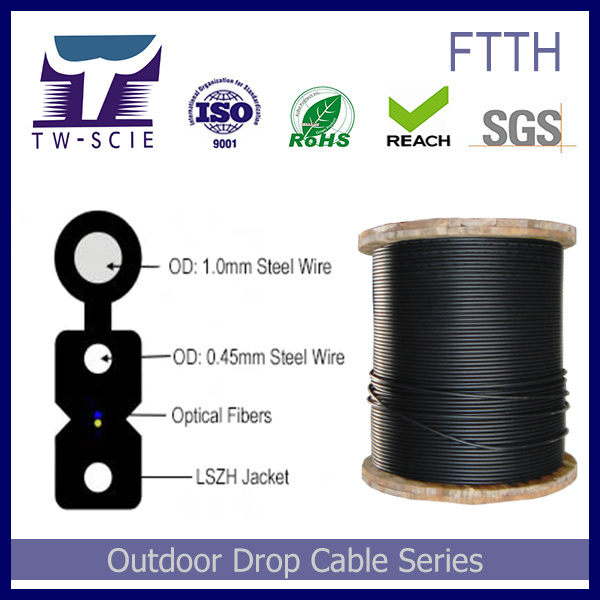

The FTTH drop cable is positioned in the centre. Two parrallel fiber reinforced plastics(FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath. The typical self-supporting bow-type drop fiber optic cable consists of GJXFH/GJXH cable and an additional strength member (steel wire or stranded steel wire).
Characteristics:
1.Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
2.Two parallel FRP/ steel strength members ensure good performance of crush resistance to protect the fiber.
3. Novel groove design, easily strip and splice, simplified installation and maintenance, higher tensile strength.
4. Single Steel wire as the additional strength member ensures good performance of tensile strength.
5. Simple structure light weight and high practicability.
6. Novel flute design, easily strip and splice, simplify the installation and maintenance.
7. Low smoke, zero halogen and flame retardant sheath, environment-friently, good safe.
Application:
1. High performance optical network operating
2. High speed optical routes in buildings (FTTH)
3. Suitable as cable extending from outdoor (as aerial cable) to indoor
Standards:
Comply with standard YD/T 1997-2009,ICEA-596,GR-409,IEC 60794.
FTTH drop cable Technical Data:
Items | Specifications |
Fiber Count | 2 |
Colored Coating Fiber | Dimension | 250mm±15μm |
Color | Blue,Orange |
Tight buffer | 0.9mm Tight buffer no jelly |
Supporting messenger wire | Dimension | 0.33* 7 |
Material | Galvanized steel wire strands |
Strength member | Dimension | 0.45mm±0.10 |
Material | FRP (or steel wire) |
Outer Jacket | Material | LSZH Lower smoke zero haloge frame retardant & UV Ant |
Color | Black |
Cable Diameter dimensions | 2.0( Height) × 5.3 W ± 0.1 mm(width) |
Optical fiber data:
No. | Items | Unit | Specification |
G.652D |
1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
1550nm | μm | 10.4±0.5 |
2 | Cladding Diameter | μm | 125±0.5 |
3 | Cladding Non-Circularity | % | ≤0.7 |
4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
5 | Coating Diameter | μm | 245±5 |
6 | Coating Non-Circularity | % | ≤6.0 |
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 |
8 | Cable Cutoff Wavelength | nm | λcc≤1260 |
9 | Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
1550nm | dB/km | ≤0.22 |
Mechanical and Environmental Characteristics:
Items | Unit | Specifications |
Tension(Long Term) | N | 500 |
Tension(Short Term) | N | 800 |
Crush(Long Term) | N/100mm | 1000 |
Crush(Short Term) | N/100mm | 2200 |
Min. Bend Radius(Dynamic) | mm | 20D |
Min. Bend Radius(Static) | mm | 10D |
Installation Temperature | ºC | -0ºC to + 60ºC |
Operating Temperature | ºC | -20ºC to + 70ºC |
Storage Temperature | ºC | -20ºC to + 70 |
Note:
1.Not all the FTTH cables are in the list. 1,2,4,6,8 fibers are available. Steel wire/FRP/KFRP material of strength member and messenger wire are available.
2.Cables can be supplied with a range of single mode or multimode fibers.
3.The dimensions and raw materials can be designed according to the demand of the customers.
4.Standard Reel Length: 1000m/reel: other lengths available on request.
Packaging & Shipping
*Standard Packaging:The FTTH drop cable is rolled by Plastic Reel or wooden drum.1KM /drum or other required.
*Sheath mark:The following printing(white hot foil indentatioin)is applied at 1-meter intervals.
a. Supplier: KSD or as cuctomer required
b. Standard Code(Product Type, Fiber Type, Fiber Count)
c. Year of manufacture: xxx
d. Length marking in meters
Shipping:we have shipping department with professional guys work together with the experienced shipping agent overall the world.
