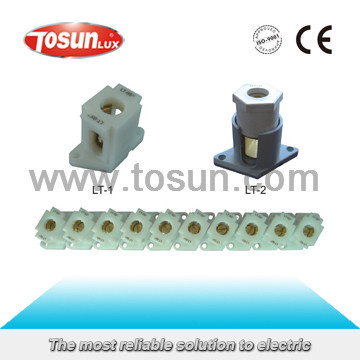

Lt Series Square Terminal Block

Name: Lt Series Square Terminal Block
Brand: all-electronics-online.com
SKU: 756709925
Availability: InStock
Rating: 5 (51 reviews)

Price:	US $ 0.3-13/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LT-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Temperature:	115
Material:	Nickel-Plated Brass
Application:	Communication
Environmental Protection:	Resistance to Environmental
Connection Mode:	In-Line Connector
Contact Termination Form:	Screws Fixed
Shape:	Square
Brand:	Tosunlux

Product Description

APPLICATION:

1. Built and tested according to UNE-EN60998.
2. Flammability to UL94 V2.
3. Short time working temperature: 160ºC.
4. Nickel-plated brass.
5. Insulating part and screws: Polyamide 6 natural colour.
6. Continuous working temperature: 115ºC.
7. Conductor block and screw.

SPECIFICATION:

Model	m Spec.	A	B	C	D1	D2	L
LT-1-16	16m	17	30	32	13*4.8	4.3	40
LT-1-25	25m	21	36	37.7	14*6.8	4.3	46
LT-1-35	35m	24.4	42	42.4	16*8.4	4.3	53
LT-1-50	50m	27	51	48.8	20*9.3	5	63
LT-1-70	70m	29	53	53	2310.5	5	64
LT-1-95	95m	33.5	55	57	25*12.6	5	67
LT-1-120	120m	35.8	57	61.5	31*13.8	5	68
LT-2-50	50m	31.5	33	60	20*10	3	49
LT-2-70	70m	37.8	42	70	25*12	3	50
LT-2-100	100m	44.8	56	83	16*14.5	4.5	70
LT-2-160	160m	64.4	82	110	33*20	4.5	105
