| Prod Model: |
VV, VLV, VV32, VLV32 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Cu or Al |
| Sectional Area Size For 1 Core: |
up to 1000mm2 |
| Sectional Area Size For 2core: |
up to 185mm2 |
| Sectional Area Size For 3core: |
up to 400mm2 |
| Sectional Area Size For 4 Core: |
up to 400mm2 |
| Sectional Area Size For 3+1 Core: |
up to 400mm2 |
| Sectional Area Size For 5 Core: |
up to 300mm2 |
| Sectional Area Size For 3+2 Core: |
up to 300mm2 |
| Sectional Area Size For 4+1 Core: |
up to 240mm2s |
| Rated Voltage: |
0.6/1kv,3.6/6kv |
| Voltage: |
Low and Medium Voltage Cable |
| Insulation Material: |
PVC |
| Current: |
AC Cable |
| Application: |
Power Station |
| Certification: |
VDE |
| Model: |
VV22,VV23,VV32,VV33 |
| Brand: |
Yifang |
Product Description
PVC Insulated Power Cable and Fire Resistant Cable
The PVC insulated power cable and fire resistant cable are suitable for fixed laying in power transmission and distribution lines with A.C.50Hz and voltage rating of up to or including 6kV.
1.Performance Characteristics:
1) The long-term permissible operation temperature of conductor shall not be higher than 70ºC
2) Conductor maximum short circuit(not more than 5seconds)temperature shall not be higher than 190ºC
3) The cable is not limited by drop in level when being laid,and the environment temperature shall not be 0ºC
4) Perfectly chemical stability,resistant against acids,alkalis,grease, and organic solvents,and flame retardance.
5) Light weight,perfect bending properties,installed and maintained easily and conveniently.
Voltage rating:0.6/1kV,3.6/6kV
Conductors:copper or aluminum
Number of cable cross:1,2,3,4,5,3+1,3+2
We provide armored type and non-armored type for cables stated above.
Outer sheath:PVC or PE
Our company has been carrying out Chinese national standard GB12706 and GB12666.6(equivalent to IEC60502 and IEC60331)for PVC insulated power cable and fire resistant cable needed by domestic customer,and for foreigner customers we can manufacture in accordance with BS,DIN and other countries standards.In addition,we can design and manufacture PVC insulated power cable with special characteristic according to needs of customers.
2.Technical Requirements
| Cu core | Al core | Description |
VV
NH-VV | VLV
NH-VLV | Cu(Al) core PVC-insulated PVC-sheathed power cable
Cu(Al) core PVC-insulated PVC-sheathed fire resistant cable |
VY
NH-VY | VLY
NH-VLY | Cu(Al) core PVC-insulated PE-sheathed power cable
Cu(Al) core PVC-insulated PE-sheathed fire resistant cable |
VV22
NH-VV22 | VLV22
NH-VLV22 | Cu(Al) core PVC-insulated steel tape armored PVC-sheathed power cable
Cu(Al) core PVC-insulated steel tape armored PVC-sheathed fire resistant cable |
VV23
NH-VV23 | VLV23
NH-VLV23 | Cu(Al) core PVC-insulated steel tape armored PE-sheathed power cable
Cu(Al) core PVC-insulated steel tape armored PE-sheathed fire resistant cable |

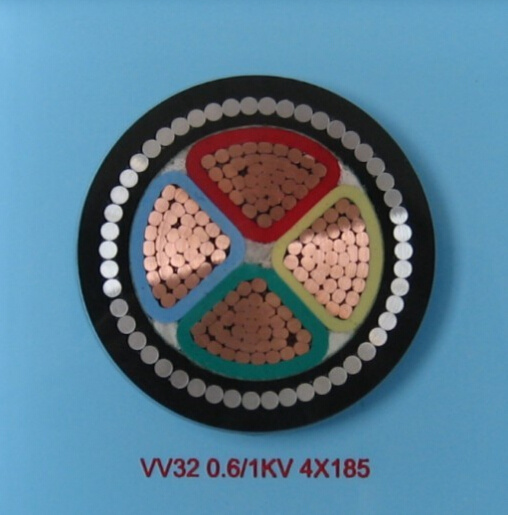

VV32
NH-VV32 | VLV32
NH-VLV32 | Cu(Al) core PVC-insulated fine steel wire armored PVC-sheathed power cable
Cu(Al) core PVC-insulated fine steel wire armored PVC-sheathed fire resistant cable |
VV33
NH-VV33 | VLV33
NH-VLV33 | Cu(Al) core PVC-insulated fine steel wire armored PE-sheathed power cable
Cu(Al) core PVC-insulated fine steel wire armored PE-sheathed fire resistant cable |
VV42
NH-VV42 | VLV42
NH-VLV42 | Cu(Al) core PVC-insulated Thick fine steel wire armored PVC-sheathed power cable
Cu(Al) core PVC-insulated Thick fine steel wire armored PVC-sheathed fire resistant cable |
VV43
NH-VV43 | VLV43
NH-VLV43 | Cu(Al) core PVC-insulated thick fine steel wire armored PE-sheathed power cable
Cu(Al) core PVC-insulated thick fine steel wire armored PE-sheathed fire resistant cable |
Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.
There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.
Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc
We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
