| Prod Model: |
ES-201609-60 |
| Manufacturer: |
Since 2001 |
| OEM/ODM: |
Yes |
| Test Report: |
Yes |
| Color: |
Black |
| Key Word: |
Aerial Bundled Cable |
| Quality Check: |
All Products Checked by Experienced QC |
| OEM: |
Welcome |
| Guarantee: |
20 Years |
| Trail Order: |
Welcome |
| Factory Area: |
200, 081mm2 |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Insulation Material: |
XLPE |
| Certification: |
TUV |
| Conductor Material: |
ACSR/AAAC/AAC |
| Range Of Application: |
Overhead Line |
| Brand: |
Asian Sun |
Product Description

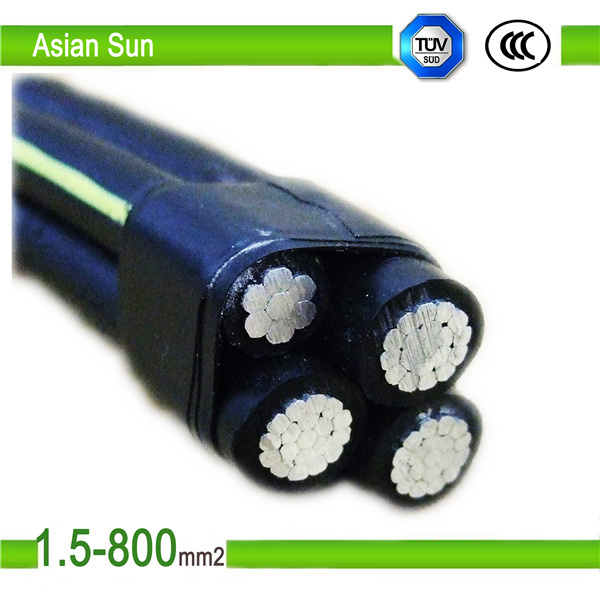

LV Suspension ABC Cable Aerial Bundled Cable Wire
Construction
Conductor
The conductor of phase, neutral and street lighting conductor shall be H68 condition aluminium in accordance with BS 2627,
compacted cicular stranded
Insulation
Cross-linked Polyethylene (XLPE) shall be extruded over phase, neutral, street lighting conductor.
Assembly
Left hand (S) direction of lay.
Core identification:
First phase conductor shall be identified by single rib, while the second and third conductors by two and three ribs respectively. The neutral conductor shall be identified by ribs all-around the circumference.
Street lighting conductor shall be marked with words "S/L"
Specification
service drop cable meets or exceeds the following ASTM specifications:
· B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
· B-231 Aluminum Conductors, Concentric-Lay-Stranded.
· B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
· B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
· B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire
DES/LVC/ABC specification0.6/1(1.2)kV
| Size of cable | | 3C X 25mm² + 25mm² | 3C X 35mm² + 35mm² |
| Phase conductor | | | |
| Nominal cross-sectional area | mm2 | 25 | 35 |
| Nominal thickness of insulation | mm | 1.4 | 1.4 |
| Approx. each core diameter | mm | 9.0 | 9.9 |
| Max. d.c. resistance of conductor at 20°C | Ohm/km | 1.2 | 0.868 |
| Messenger | | | |
| Nominal cross-sectional area | mm2 | 25 | 35 |
| Nominal thickness of insulation | mm | 1.4 | 1.4 |
| Approx. each core diameter | mm | 9.0 | 9.9 |
| Minimum breaking load | kN | 3.1 | 4.3 |
| Completed cable | | | |
| Approx. overall diameter | mm | 21.7 | 23.9 |
| Approx. cable weight | kg/km | 421 | 549 |
| Approx. overall diameter | mm | 15.3 | 19.2 |
| Approx. cable weight | kg/km | 162 | 289 |
DES/LVC/ABC specification
0.6/1(1.2)kV
| Size of cable | | 3C X 120mm2 + 120mm2+ 25mm2 | 3C X 185mm2 + 185mm2 + 25mm2 |
| Phase conductor | | | |
| Nominal cross-sectional area | mm2 | 120 | 185 |
| Nominal thickness of insulation | mm | 1.7 | 2.2 |
| Approx. each core diameter | mm | 16.5 | 20.8 |
| Max. d.c. resistance of conductor at 20°C | Ohm/km | 0.253 | 0.164 |
| Messenger | | | |
| Nominal cross-sectional area | mm2 | 120 | 185 |
| Nominal thickness of insulation | mm | 1.7 | 2.2 |
| Approx. each core diameter | mm | 16.5 | 20.8 |
| Minimum breaking load | kN | 15.0 | 23.0 |
| Street lighting | | | |
| Nominal cross-sectional area | mm2 | 25 | 25 |
| Nominal thickness of insulation | mm | 1.4 | 1.4 |
| Approx. each core diameter | mm | 8.8 | 8.8 |
| Completed cable | | | |
| Approx. overall diameter | mm | 40.0 | 51.0 |
| Approx. cable weight | kg/km | 1783 | 2707 |
| Max. d.c. resistance of conductor at 20°C | Ohm/km | 1.91 | 1.91 |
| Completed cable | | | |
| Approx. overall diameter | mm | 40.5 | 54.8 |
| Approx. cable weight | kg/km | 1325 | 2407 |
Our service
1) Inquiries are typically answered within 12 hours and OEM is welcome.
2) We have experienced QC to control the quality of different kind of cables.
3) We're CCC certificated, and can provide CE, Rohs and SGS certificates before exporting.
4)We have grown from a small factory with an annual turnover of USD50,000 to over USD50,000,000 during these 10 years.
5) Huge Inventory Allows Us To Ship Your Order Immediately
6)Our employees are all capable and professinal. They can offer you the Prompt Courteous Service.
7) We ship worldwide.
