Lw28GS Padlock Type Automatic Changeover Switch

Product Description

W28GS Padlock Type Power Cut Off Changeover Switch

 General

        LW28GS series Padlock type Power cut off switch is derived product of LW28 universal changeover switch. The main use to the power cut-off switch of machine tool that can be locked by a padlock, in the open position("O" or "OFF")and on position ("1" or "ON")can be locked by a pedlock to prevent the misuse and operation control by unauthorized personnel.
The product comply with GB14048.3-2001, IEC60947-3.

Classification

• Padlock type switch specification has 20A, 25A, 32A, 63A, 125A, 165A four ratedcurrent.
• In (1) type switch,20A has big and small two size panels,the remaining  specification is big size that can use 3 locks at the same time,and small size canuse 2 locks at the same time.
• The (2) type is big panel and can use 3 locks at the same time.
• Padlock type switch can be divided by use with general and emergency stop style.
• General style(LW28GS-/03) is black panel, black handle.
• Emergency style(LW28GS-/04) is ergency stop sign, yellow panel red handle.

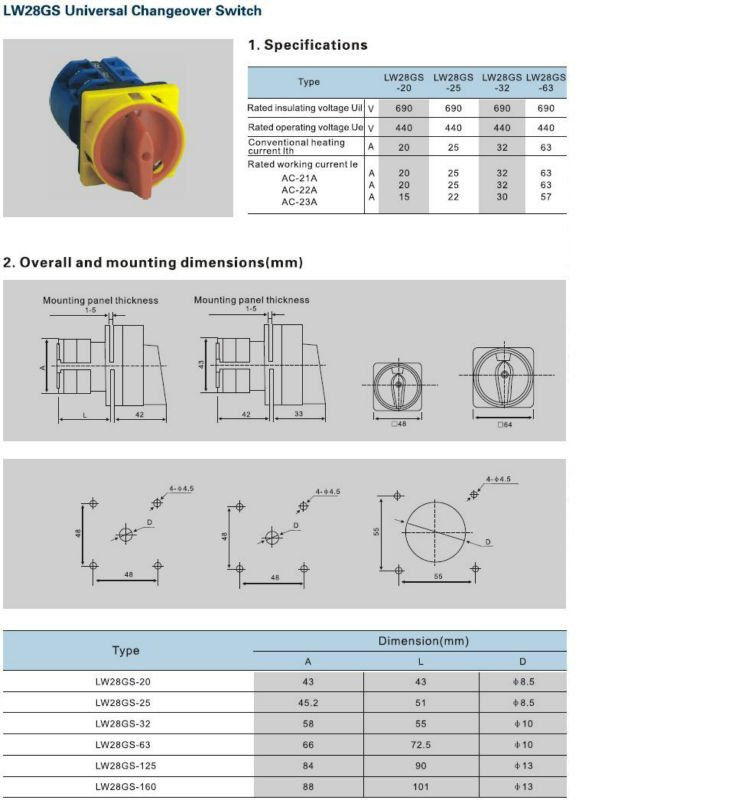

Speicification
