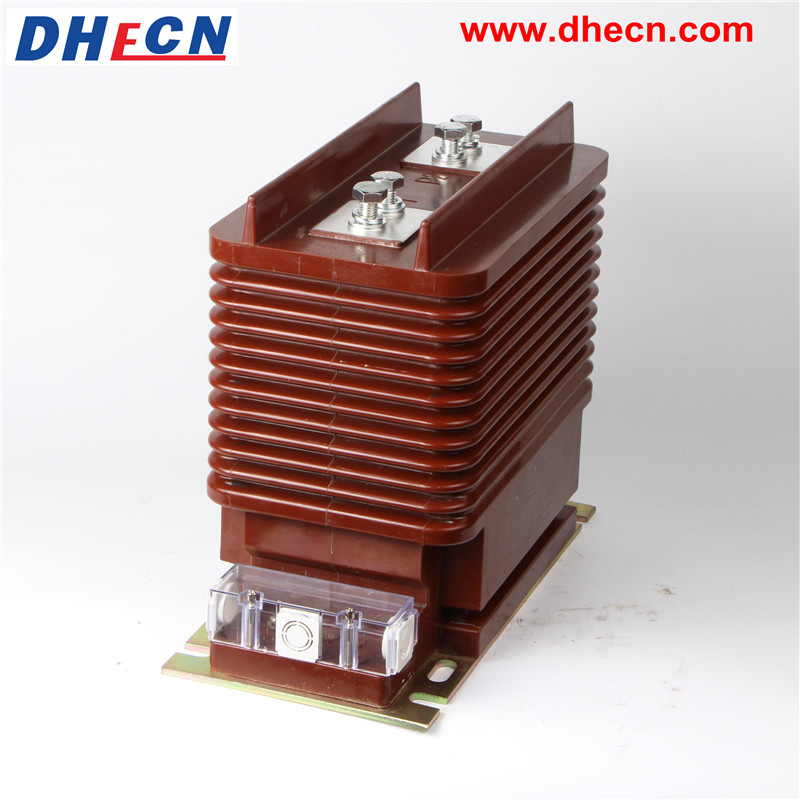

LZZB9-24/180b/2(4) Type Current Transformer

Applications

LZZB9-24/180b/2(4) Current transformer is suitable for power measurement, current monitoring and relay protection in power system with rater frequency 50Hz or 60Hz and rater voltage 10kV.
Applicable Standard: IEC60044-1, GB 1208

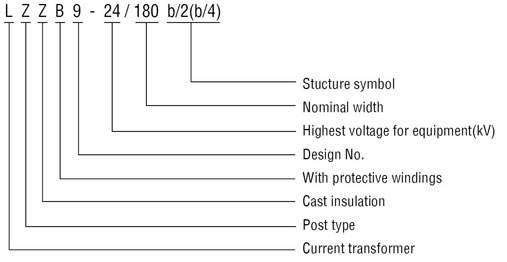

Type Designation

Operation Conditions

Installation area: Indoor.
Ambient temperature: Max. temperature 40ºC;Min. temperature -5ºC;Daily average temperature can't exceed 30ºC.
Air conditions: No heavy pollution in air.

Technical Parameter

Technical parameters of LZZB9-24/180b/2 current transformer

Model	Rated primary current (A)	Combined accuracy classes	Rated output (VA)	Rated short-time thermo current (kA/s)	Rated dynamic stability current (kA/s)
LZZB9-24/180b/2	20	0.2/0.2 0.2/0.5 0.2/10P10 0.5/10P10 0.2/10P15 0.5/10P15	10/10 10/10 10/15 10/15 10/10 10/10	3	7.5
	30			4.5	11.25
	40			6	15
	50			7.5	18.75
	75			11.25	28.125
	100			15	37.5
	150			22.5	56.25
	200			31.5	80
	300			45	112.5
	400
	500
	600	0.2/0.2 0.2/0.5 0.2/10P10 0.5/10P10 0.2/10P15 0.5/10P15	15/15 15/20 10/20 15/20 10/15 15/15	63	130
	800			63	130
	1000			80	160
	1200
	1250

Rated secondary current: 5A or 1A.
Insulation level: 24/65/125kV.

Technical parameters of LZZB9-24/180b/4 current transformer

Model	Rated primary current (A)	Combined accuracy classes	Rated output (VA)	Rated short-time thermo current (kA/s)	Rated dynamic stability current (kA/s)
LZZB9-24/180b/4	20	0.2/0.2/0.2 0.2/0.5/0.5 0.2/10P10/10P10 0.5/10P10/10P10 0.2/10P15/10P15 0.5/10P15/10P15	10/10/10 10/10/10 10/15/15 10/15/15 10/10/15 10/10/15	3	7.5
	30			4.5	11.25
	40			6	15
	50			7.5	18.75
	75			11.25	28.125
	100			15	37.5
	150			22.5	56.25
	200			31.5	80
	300			45	112.5
	400
	500
	600	0.2/0.2/0.2 0.2/0.5/0.5 0.2/10P10/10P10 0.5/10P10/10P10 0.2/10P15/10P15 0.5/10P15/10P15	15/15/15 15/20/20 10/20/20 15/20/20 10/15/15 15/15/15	63	130
	800			63	130
	1000			80	160
	1200
	1250

Structure and Feature

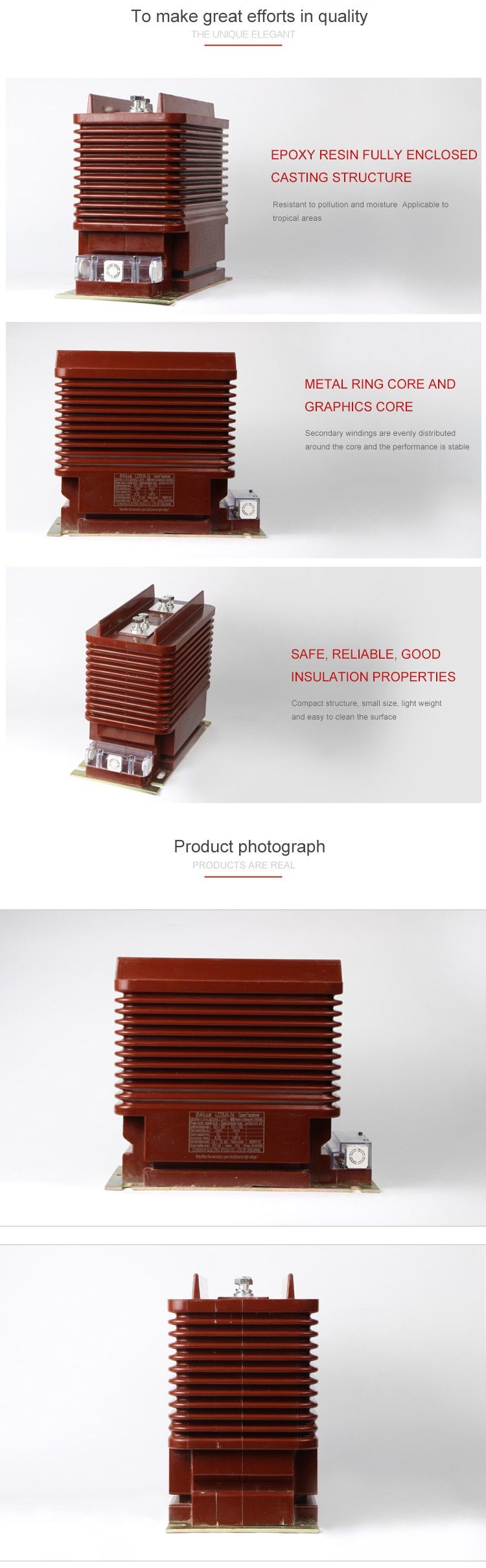

Current transformer have the whole-sealed structure with epoxty resin as its main insulation. Its core adopts the crystallitic alloy or excellent silicon steel sheets to enwind becoming annular, then secondary leads are enwinded on it evenly. Primary conducts are winded by insulation belt to avoid short circuit between conducts. There are earth bolts and holes suitable for mounting on the bottom of the product suitable the mounting.

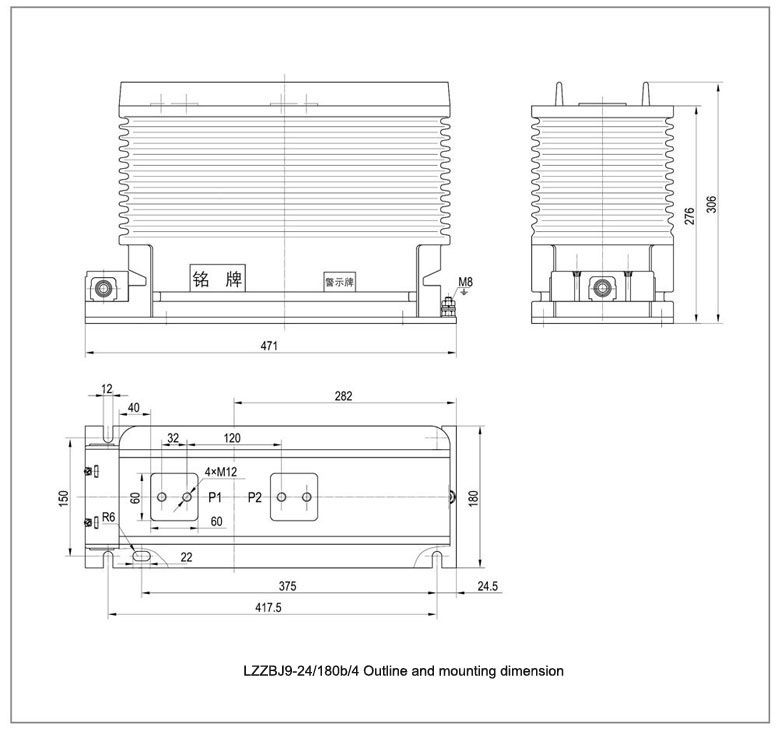

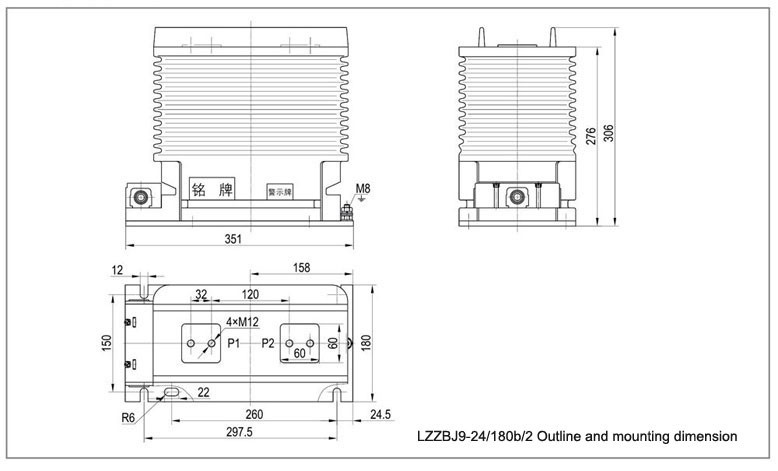

Outline and Mounting Dimensions

Information Required for Order Placing

Model.
Rated current ratio A.
Combined accuracy classes and Rated output VA.
Altitude m.
