Lzzb9-24/220b/2 (4) Type Current Transformer

Name: Lzzb9-24/220b/2 (4) Type Current Transformer
Brand: all-electronics-online.com
SKU: 663868245
Availability: InStock
Rating: 4.9 (41 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LZZB9-24/220b/2(4)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type Of Current Transformer:	Indoor Use,Epoxy Resin,Sealed Structure
Application:	Measurement for The Current ,Protection for Relay,
Type:	Current Transformer
Phase:	Single
Usage:	Protection or Measurement

Product Description

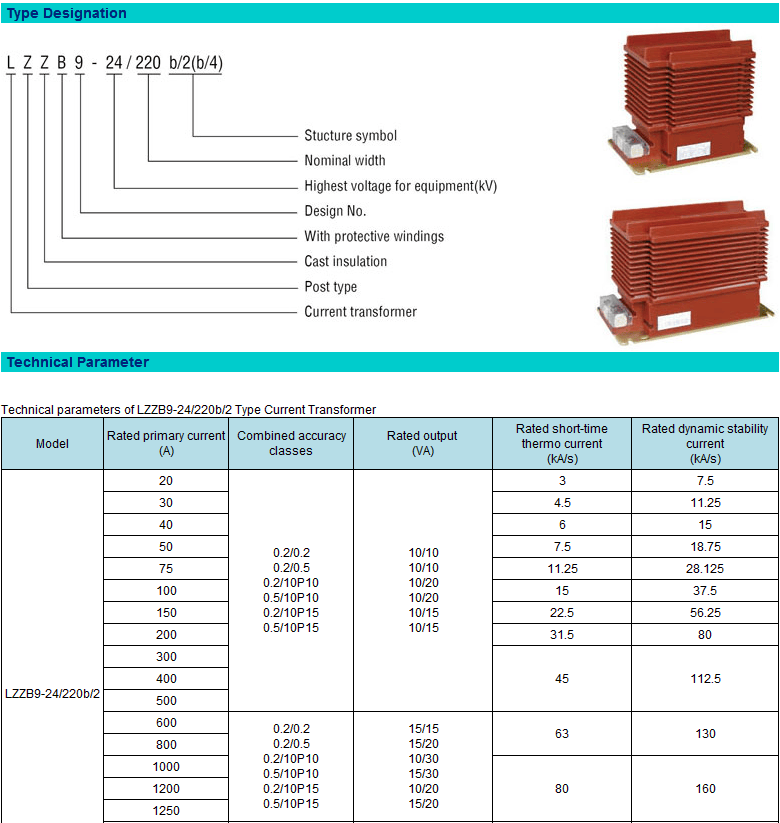

LZZB9-24/220b/2(4) type current transformer
Applications
LZZB9-24/220b/2(4) current transformer is suitable for power measuremet,current monitoring and relay protection in power system with rater frequency 50HZ or 60HZ,rated voltage 10KV.

rated secondary current : 5A or 1A
insulation level:24/65/125KV
Structure and Feature
Current transformer have the whole-sealed structure with epoxty resin as it's main insulation.It's core adopts the crystallitic alloy or excellent silicon steel sheets to enwind becoming annular ,then secondary leads are enwinded on it evenly.Primary conducts are winded by insulation belt to avoid short circuit between conducts.There are earth bolts and holes for mounting on the bottom of the product suitable the mounting.
information required for order
Model
rated current ratio
combined accuracy classes and rated output(VA)
altitude(m)

outline,dimension and else information about the product,you can visit the website www.dhecn.com to know.If you find the suitable ,you can contact with us.

Established in 1988, We specialize in manufacturing switching power supply, current transformer, voltage transformer, fuse and isolation switch. Donghua provides you a variety of high quality switching power supply, Transformer, fuse, isolation switch And professional product solution.

To supply our customers perfect products, we set up R&D department with over 20 experienced engineers and also follow a full set of computerized managementssystem. What' S more, as an ISO9001 certified company, we adopt a strict inspection process and a scientific management system with modern imported manufacturing and testing facilities, succeeded in achieving some safety sertification such as CCC, CE, CB, UL and all products are RoHS Compliance.

Advantage managent and abundant labor in China, let us provide our customers more high reliable quality and more cheaper products, by now, DHECN-SMPS is becoming more and more famous among customers worldwide due to its reliable quality, competitive price, punctual delivery and correct service.

Donghua warmly welcome all old and new customers to visit our company or contact us by Tel, Fax, E-mail. Believing we will be your long-term business cooperator either as a reliable supplier or as a close ODM/OEM partner in China.
