| Prod Model: |
LZZBJ9 |
| Application: |
Electronic |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description

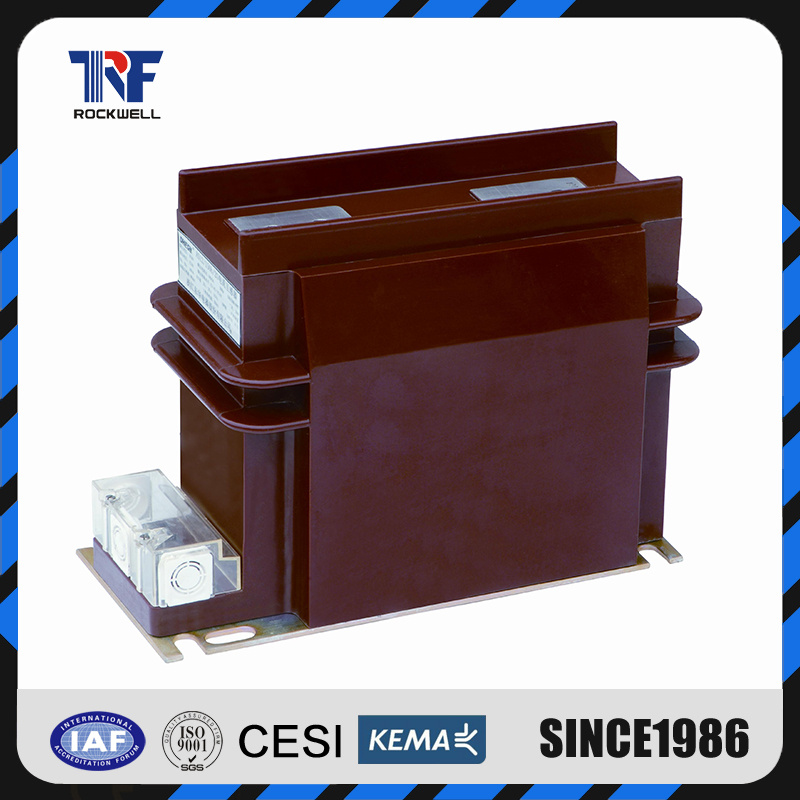

LZZBJ9-10C1,LZZBJ9-10C2 CURRENT TRANSFORME
12KV indoor single-phase epoxy resin type

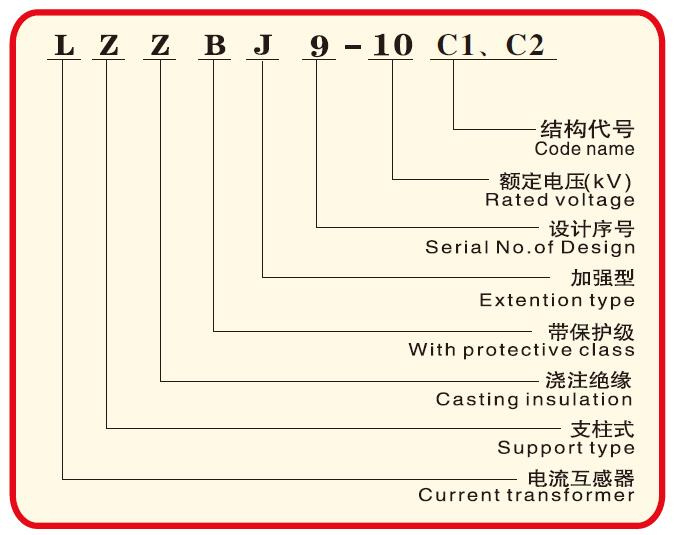

type description
Technical data
1.rated insulation level:12/42/75KV
2.rated frequency:50/60HZ
3.installation site: indoor
4.technical standard:GB1208-2006 IEC60044-1:2003
specification
LZZBJ9-10C1 single ration | rated transformation ratio(A) | accuracy
Classes
combination | COSØ=0.8 rated output | (ALF) | (FS) | short-time thermal current Ith(KA/S) | Rated dynamic current Idyn(KA) |
| measuring | protective |
| 0.2(S) | 0.5 | 10P |
| 10-200/5 | 0.2(S)/0.2(S)
0.2(S)/0.5
0.2(S)/10P
0.5/10P
0.2S/0.5/10P
0.2/0.5/10P | 10
15 | 15 | 15 | 10
15
20 | 5
(10) | 150I1n | 375I1n |
| 300/5 | 31.5 | 80 |
| 400/5 | 31.5 | 80 |
| 500/5 | 40 | 100 |
| 600/5 | 50 | 125 |
| 800/5 | 20 | 63 | 125 |
| 1000/5 | 80 | 160 |
| 1200-1500/5 | 100 | 160 |
| 1500-2000/5 | 100 | 160 |
| 2000-2500/5 | 100 | 160 |
Note:upon request we are glad to offer transformers according to other technical specs.
LZZBJ9-10C1 double ratio | rated transformation ratio(A) | accuracy classes combination |
COSØ=0.8
rated output(VA) | (ALF) | (FS) | short-time thermal current Ith(KA/S) | rated dynamic current Idyn(KA) |
| measuring | protective |
| 0.2(S) | 0.5 | 10P |
| 10-20/5 | 0.2(S)/0.2(S)
0.2(S)/0.5
0.2(S)/10P
0.5/10P | 10
15 | 15 | 15
20 | 10
15
20 | 5
(10) | 1.5 | 3.75 |
| 20-40/5 | 3 | 7.5 |
| 50-100/5 | 8 | 20 |
| 100-200/5 | 15 | 37.5 |
| 200-400/5 | 30 | 75 |
| 400-800/5 | 63 | 130 |
| 500-1000/5 | 80 | 160 |
LZZBJ9-10C2 | rated transformation ratio(A) | accuracy classes combination | COSØ=0.8
rated output(VA) | (ALF) | (FS) | short-time thermal current Ith(KA/S) | rated dynamic current Idyn(KA) |
| measuring | protective |
| 0.2(S) | 0.5 | 10P |
| 10-200/5 | 0.2(S)/0.2(S)
0.2(S)/0.5
0.2(S)/10P
0.2S/0.5/10P
0.2/0.5/10P | 10
15 | 15 | 15
20 | 10
15
20 | 5
(10) | 150I1n | 375I1n |
| 300/5 | 31.5 | 80 |
| 400/5 | 31.5 | 80 |
| 500/5 | 40 | 100 |
| 600/5 | 50 | 125 |
| 800/5 | 63 | 160 |
| 1000/5 | 80 | 160 |
| 1200-1500/5 | 80 | 160 |
| 1500-2000/5 | 100 | 160 |
| 2000-2500/5 | 100 | 160 |
| 2500-3150/5 | 100 | 160 |

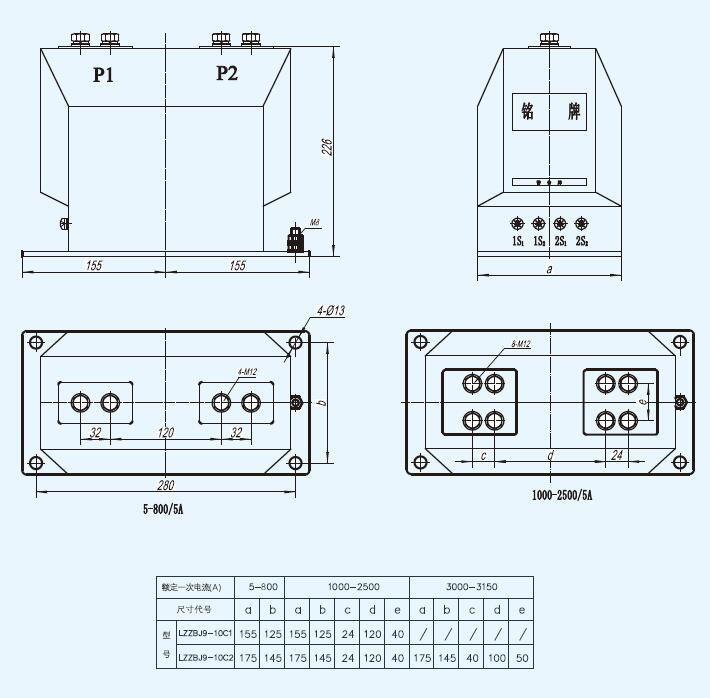

outline drawing
ATTENTION:
1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: Usually use strong plywood case for protection.
4.The material of transformer: We have two types, one is with copper and another one is with aluminum. It depends on your requirement. In fact, those two have difference if normal work well. Only except the long life. Copper is better and also higher price.
5.The logo: If you have good quantity, it absolute no problem to do OEM.
6.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation..
7.Warranty: in 12 month since BL date.
