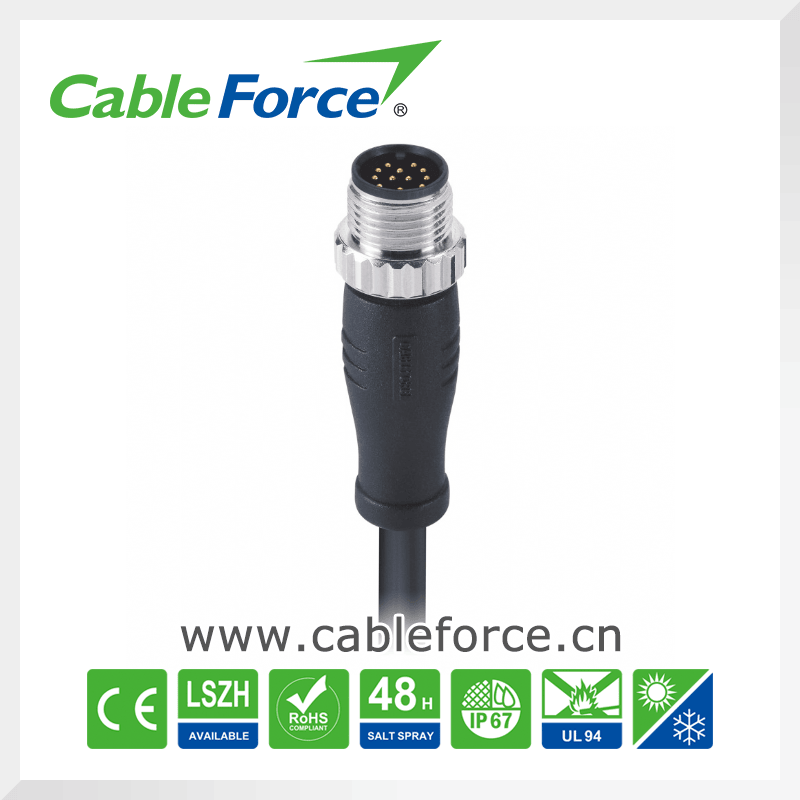

M12 12 Pins Male Straight Waterproof Connector Sensor Connector Actuator Connector Molded with Cable
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
MC12C1LSG3AB14 |
| Standard: |
IEC 61076-2-101 |
| Key Coding: |
a-Coding |
| Shielding: |
Non-Shielded |
Product Description
M12 12 Pins Male Straight Waterproof Connector Sensor Connector Actuator Connector Molded with Cable
1.DescriptionsM12 Pre-molded (PUR/PVC)cable connectors with 12mm thread locking mechanism, rated IP67 protection degree, contacts configuration covers pins of 3-, 4-, 5-, 8-, 12 poles, 360°EMC shielding is available for option. Compliant with IEC 61076-2-101 and mainly designed for signal transmission.
(1) PUR and PVC cable for option
(2) Cable length: 1M, 2M, 3M or base on customer requirement
(3) Degree of protection IP 67
(4) Anti-vibration locking screw design
Contacts plating:Gold plated, thickness 3μ"Insert/ Housing:TPUCoupling nut/screw:Brass with nickel plated screwConnector contacts:Brass with gold plated
| Standard | IEC 61076-2-101 | IP rating | IP67 |
| Key coding | A-coding | Orientation | straight |
| Sealing | o-ring | Gender | male |
| Number of pins | 4 pin | Wire gauge | 26AWG/0.14mm2 |
| Rated current | 1.5 A | Rated voltage | 30 V |

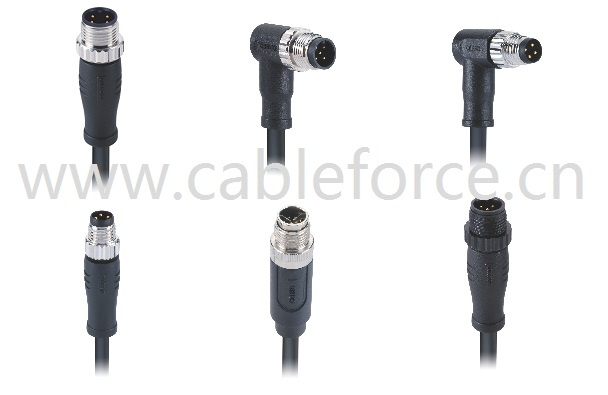

3.Similar product

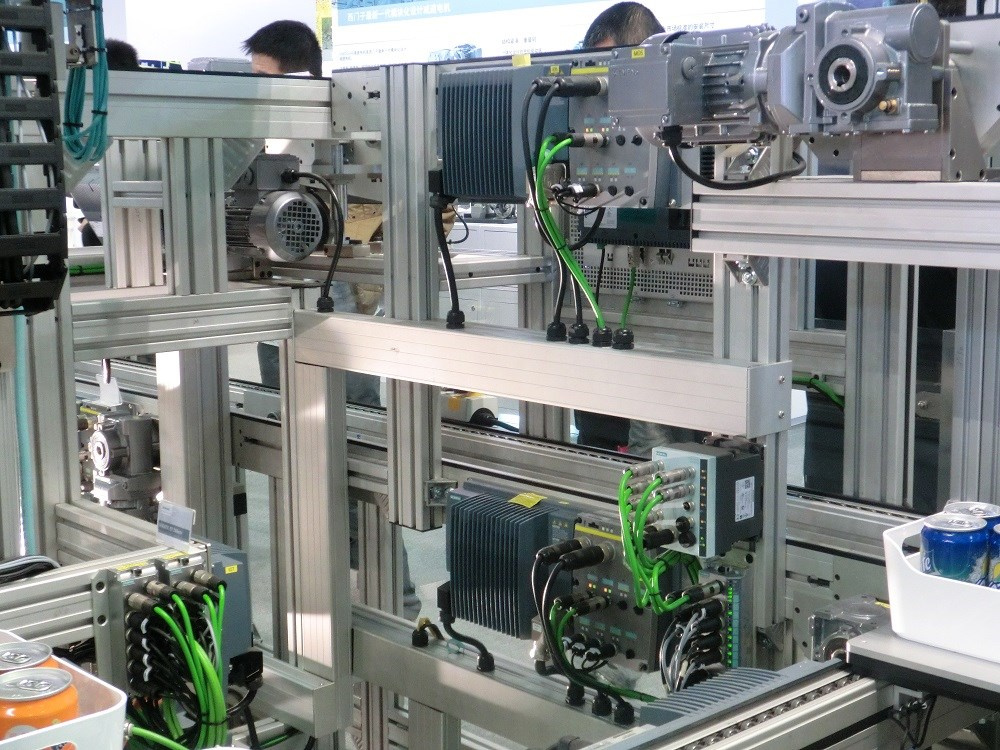

4.Applications(1) Standard sensor, actuator, encoder, servo motors
(2) Factory automation and process control
(3) Packaging, labeling and logistic devices
(4) Industrial instrumentation
(5) Commercial electronics PCBA
(6) Industrial safety light curtain, light grid, switches
(7) Power supply
(8) Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
(9) LED display panel & outdoor LED lightin
5.Our product Certifications
6.Product packaging (1) Our standand packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery : 1~ 3 weeks .
7.Our companyCableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

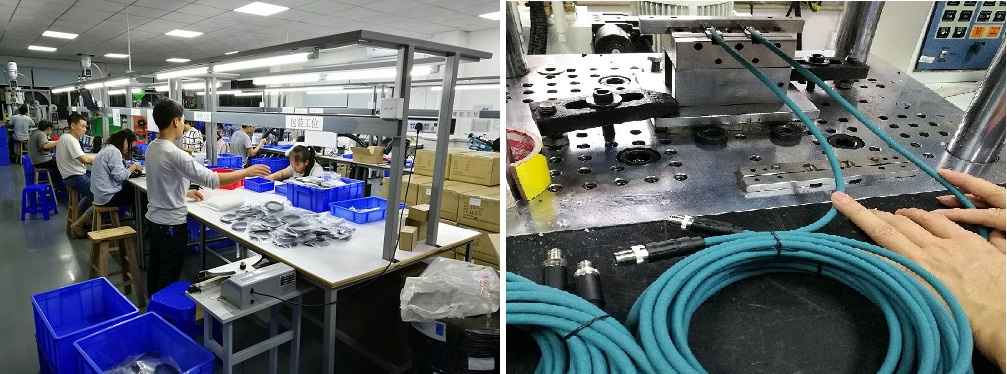

Workshop
8.FAQ(1) Q:Are you a manufacturer or trading company?
A:We are a connector factory.
(2) Q: What is the necessary information needed for quotation?
A:The series(M5,M8,M12,7/8"), coding, male or female, pin number, cable length etc.
(3) Q:What does Cableforce can provide for the product' certification?
A: IP67, CE and RoHS.
(4) Q:Can you provide samples?
A:Of course can be provided.
(5) Q:Sample lead time?
A:2-4 workdays
(6) Q: Volume order lead time?
A:3-10 workdays
(7) Q: How do you ship the finished product?
A:we can contact the shipping company or your shipping agent.The formal shipping way:DHL,FEDEX,UPS,TNT
Company Profile
Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
Business
CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.
Products range
Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;
Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;
NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;
I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
