M12 3pins Male Shielded Straight Waterproof Connector with Molded Cable Plug

Name: M12 3pins Male Shielded Straight Waterproof Connector with Molded Cable Plug
Brand: all-electronics-online.com
SKU: 822679515
Availability: InStock
Rating: 4.4 (79 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MC03C1LSG3ASB34
Insulation Resistance:	More Than 100 Mohm
Rated Current:	4 a
Rated Voltage:	250 V

Product Description

M12 3pins Male Shielded Straight Waterproof Connector with Molded Cable Plug

1.Descriptions
M12 Pre-molded (PUR/PVC) cable connectors with 12mm thread locking mechanism, rated IP67 protection degree, contacts configuration covers pins of 3-, 4-, 5-, 8-, 12 poles, 360°EMC shielding is available for option. Compliant with IEC 61076-2-101 and mainly designed for signal transmission.

(1) PUR and PVC cable for option
(2) Cable length: 1M, 2M, 3M or base on customer requirement
(3) Degree of protection IP 67
(4) Anti-vibration locking screw design

2.Material data
Coupling nut/screw:Brass with nickel plated screw
Connector contacts:Brass with gold plated
Wire insulation:PVC
Insert/ Housing:TPU
Contacts plating:Gold plated, thickness 3μ"

Standard	IEC 61076-2-101	IP rating	IP67
Orientation	straight	Gender	male
Shielding	available	Sealing	O-ring
Rated current	4 A	Wire termination	soldering
Rated voltage	250V	Key coding	A-coding

3.Applications
(1) Factory automation and process control
(2) Industrial safety light curtain, light grid, switches
(3) Industrial instrumentation
(4) LED display panel & outdoor LED lighting

4.product Certifications

5.Company information

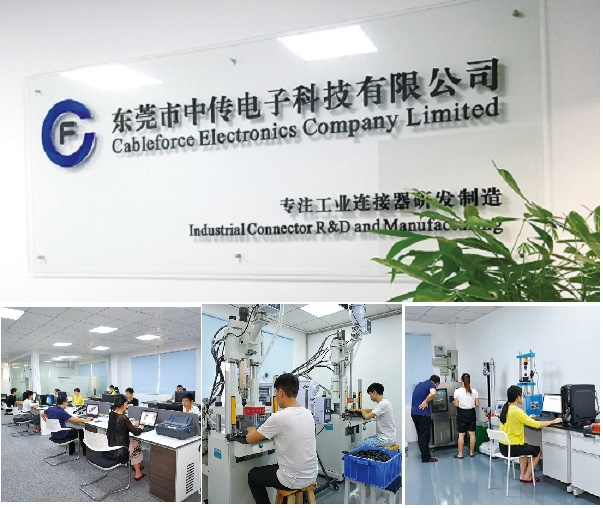

Cableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

6.Packaging
(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery : 1~ 3 weeks .

7.FAQ
(1) Q: When can I get the quotation?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.

(2) Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality counter display.
If you need the samples, we will charge for the sample Express fee. But the cost can be refundable after order confirmation when your quantity of the order is more about the MOQ.

(3) Q: What kind of files do you accept for drawing?
A: PDF, Core Draw, high resolution JPG.

(4) Q: Can you do the design for us?
A: Yes. We have a professional team having rich experience in box design and manufacturing. Just tell us your idea and we will help to carry out your ideas into perfect packing boxes. It does not matter if you do not have someone to complete files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.

(5) Q: How long can I expect to get the samples?
A: After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

(6) Q:What about the lead time for mass production?
A: Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to 15 days. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.

(8) Q: What is your terms of delivery?
A: We accept EXW, FOB ,CIF, etc. You can choose the one which is the most convenient or cost effective for you.

Company Profile

Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

Business

CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.

Products range

Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;

Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;

NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;

I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
