M12 4pin Female Right Angled Molded Cable Connector for Factory Automation with IP67 Rating
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
MC04C2RSG3AB34XX |
| Cable Length: |
Base on Customer Request |
| Connection Type: |
Single Ended Cable |
| Orientation: |
Angle |
Product Description

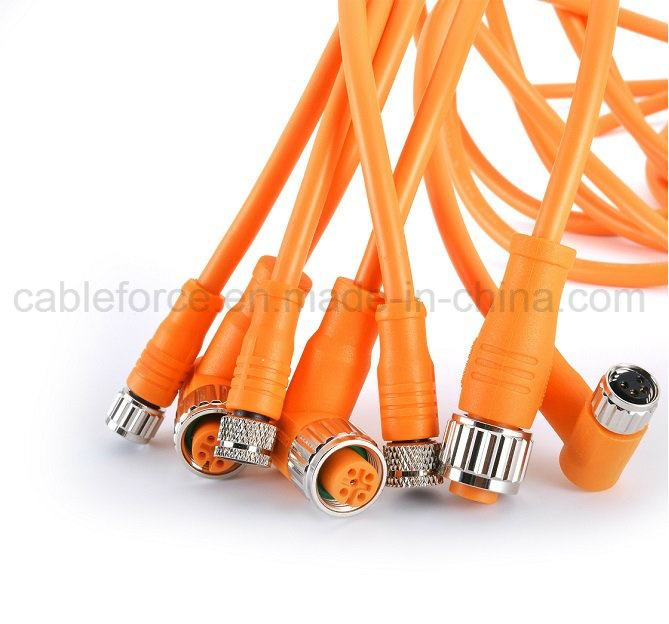

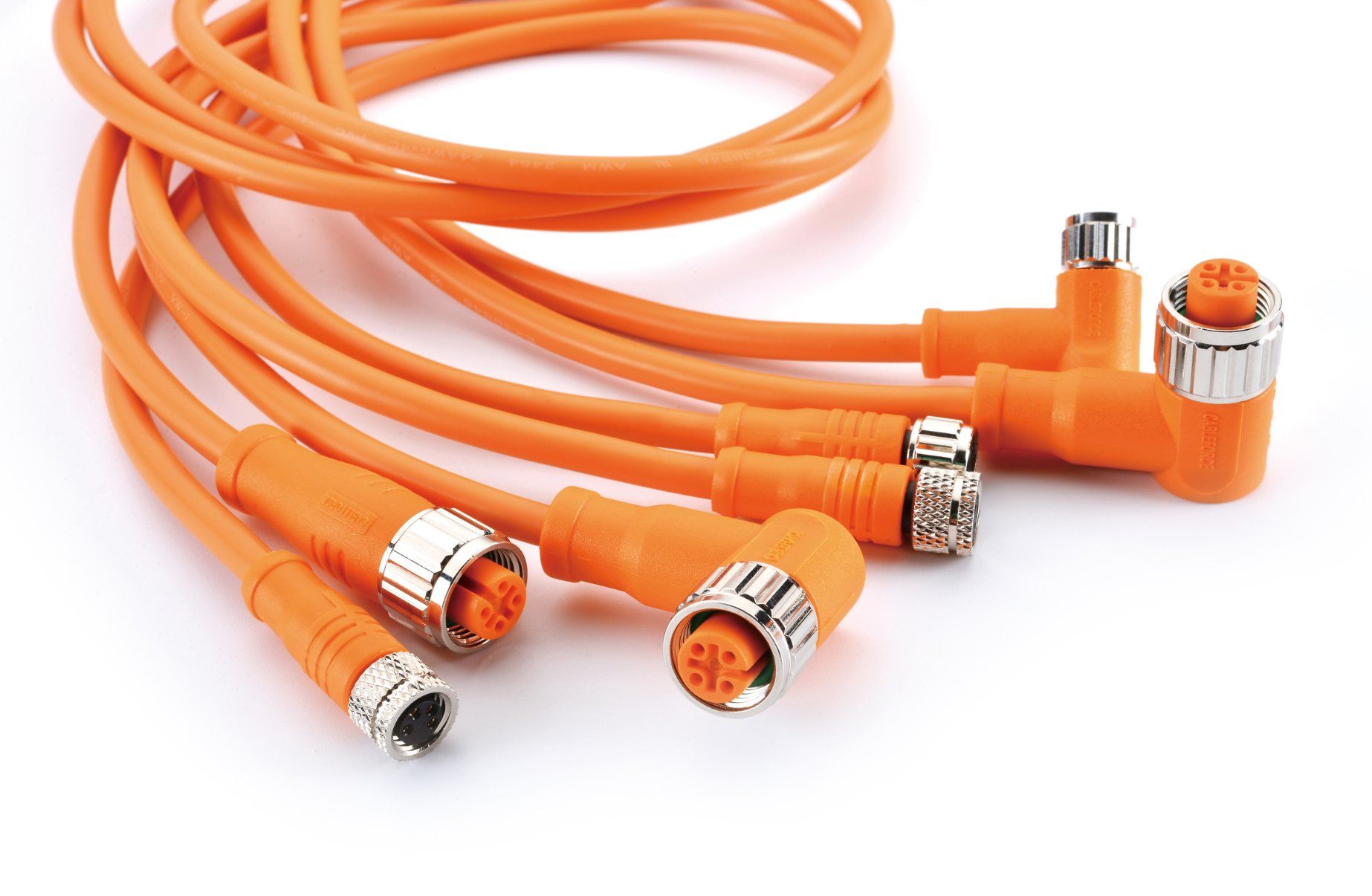

M12 4pin female right angled molded cable connector for factory automation with IP67 rating
1.DescriptionM12 Pre-molded (PUR/PVC) cable connectors with 12mm thread locking mechanism, rated IP67 protection degree, contacts configuration covers pins of 3-, 4-, 5-, 8-, 12 poles, 360°EMC shielding is available for option. Compliant with IEC 61076-2-101 and mainly designed for signal transmission.(1) PUR and PVC cable for option
(2) Cable length: 1M, 2M, 3M or base on customer requirement
(3) Degree of protection IP 67
(4) 2, 3, 4, 5, 8, 12 poles per connector are available
(5) Operating voltage 250V/60V/30V; Current range: 4A, 2A, 1.5A
(6) Anti-vibration locking screw design2.Electrical & Mechanical dataPart No.:MC04C2RSG3AB34
Standard:IEC 61076-2-101Contacts plating:Gold plated, thickness 3μ"Coupling nut/screw:Brass with nickel plated screwOvermold/ Shell:TPUInsert/ Housing:TPUConnector contacts:Brass with gold plated | 4 pin | Coding | A-code |
| Shielding | Available | | |
| | Rated current | 4A |
| | Rated voltage | 250V |
3.Applications(1) Standard sensor, actuator, encoder, servo motors
(2) Factory automation and process control
(3) Packaging, labeling and logistic devices
(4) Industrial instrumentation
(5) Commercial electronics PCBA
(6) Industrial safety light curtain, light grid, switches
(7) Power supply
(8) Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
(9) LED display panel & outdoor LED lighting
4.Quality statement
(1) Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
(2) Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
(3) Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
(4) Temperature Range: Dynamic -25 ~ 80ºC, Static: -40 ~ 80ºC/ 90ºC.
(5) Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
(6) Cable bending endurance: ≥3000 times, bending angle ±90°, loading 250g, frequency 40 times per minute, axle radius 12.7mm.
(7) RoHS compliant.
5.Product certificate

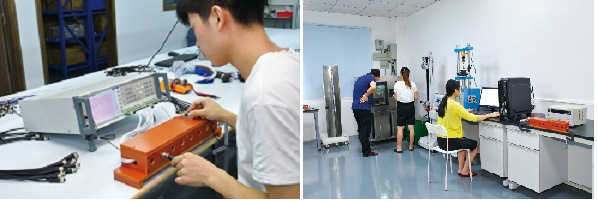

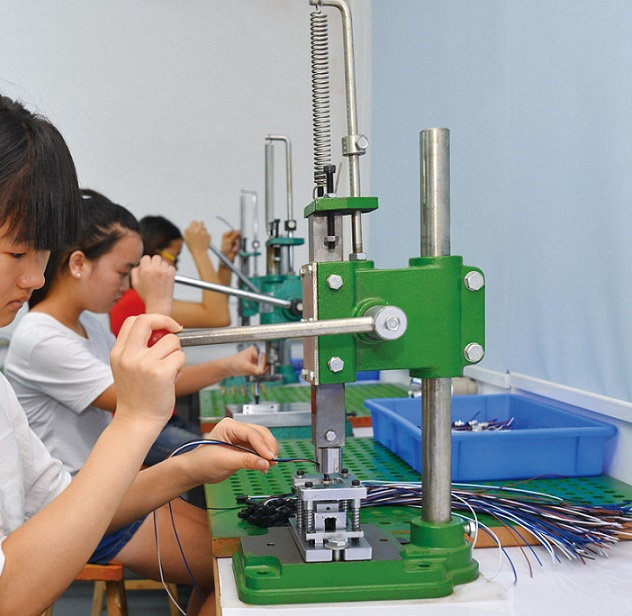

6.Company profileCableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
7.Packing(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery: 1~ 3 weeks8.Our servicewe supply M5 M8 M12 cable connectors and sockets,phoniex Pluggable Terminal Block,heavy duty circular connector,and other many kinds of terminals. If you need cable harness,we also can supply harness processing,just let us now the spec of the cable and the connectors, we will give you a cable harness drawing.
(1) We can reply your inquiry within 24 hours.
(2) Payment terms acceptable: T/T,Paypal and Western Union
(3) Many Shipping models: By Air, By Sea, Express(DHL, Fedex, TNT,UP,EMS)
(4) Lead(Delivery) time: Normally 15 days after confirming order and payment received.
(5) Port of loading: Shenzhen or Ningbo
(6) Guarantee Period : Within 12 months after shipment.
(7) Operating guide(Instruction)upon request.
(8) Customized drawing ,sample and package can be done according to your requirements.

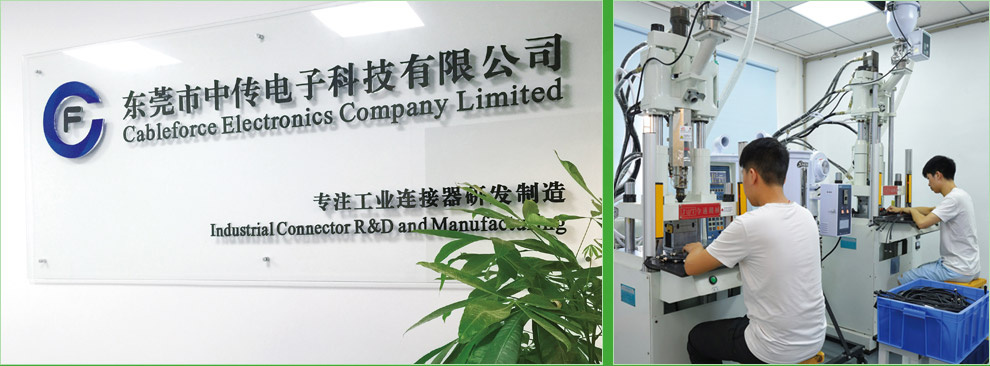

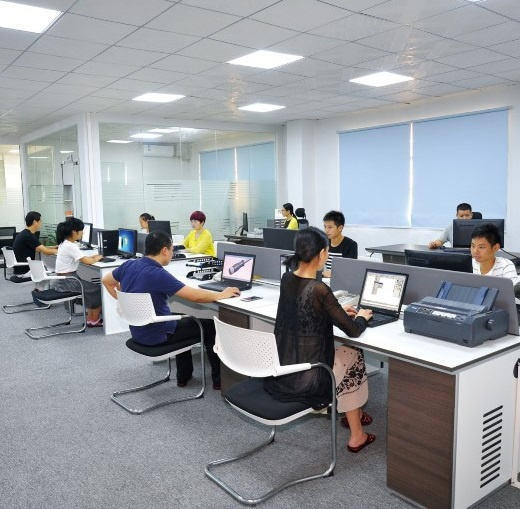

Company Profile
Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
Business
CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.
Products range
Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;
Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;
NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;
I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
