M12 4pin Male to Female Straight Molded Cable Connector for Sensor and Actuator with IP67 Rating
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
MC04C3LSG3AB34CK30 |
Product Description

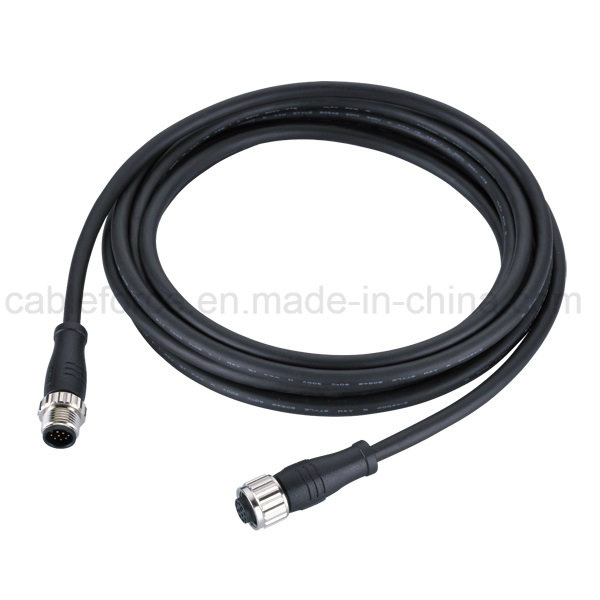

M12 4pin male to female straight molded cable connector for sensor and actuator with IP67 rating
1.DescriptionsM12 Pre-molded PUR cable connectors with 12mm thread locking mechanism, rated IP67 protection degree, contacts configuration is 4 poles. Compliant with IEC 61076-2-101 and mainly designed for signal transmission.
(1) Cable length: 3M
(2) Degree of protection IP 67
(3) 4 poles per connector are available
(4) Operating voltage 250V; Current range:4A
(5) Anti-vibration locking screw design
2.Electrical and mechanical dataStandard: IEC 61076-2-101
Cable jacket material: PVC
Connection type: Double ended cable
Insert/ Housing: TPU
Overmold/ Shell: TPU
Rated current: 4 A
Rated voltage: 250V
Ambient temperature: -25°C ~ + 80°C
Insulation resistance: ≥100 MΩ
Contacts resistance: ≤ 5 mΩ
Wire Termination: Soldering
IP rating: IP67
3.ApplicationsStandard sensor, actuator, encoder, servo motors
Factory automation and process control
Packaging, labeling and logistic devices
Industrial instrumentation
Commercial electronics PCBA
Industrial safety light curtain, light grid, switches
Power supply
Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
LED display panel & outdoor LED lighting4.Quality statement(1) Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
(2) Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
(3) Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
(4) Temperature Range: Dynamic -25 ~ 80ºC, Static: -40 ~ 80ºC/ 90ºC.
(5) Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
(6) Cable bending endurance: ≥3000 times, bending angle ±90°, loading 250g, frequency 40 times per minute, axle radius 12.7mm.
(7) RoHS compliant.
5.Product certificate
6.Company profileCableforce established in 2015, focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
7.Packing
(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery: 1~ 3 weeks.
8.FAQ(1) Q: Are you a manufacturer or trading company?
A: We are a connector factory.
(2) Q: What is the necessary information needed for quotation?
A: The series(M5, M8, M12, 7/8"), coding, male or female, pin number, cable length etc.
(3) Q: What does Cableforce can provide for the product' certification?
A: IP67, CE and RoHS.
(4) Q: Can you provide samples?
A: Of course can be provided.
(5) Q: Sample lead time?
A: 2-4 workdays
(6) Q: Volume order lead time?
A: 3-10 workdays
(7) Q: How do you ship the finished product?
A: We can contact the shipping company or your shipping agent. The formal shipping way: DHL, FedEx, UPS, TNT
Company Profile
Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
Business
CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.
Products range
Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;
Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;
NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;
I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
