M12 5 Pin Male Straight Shielded Cable Connector with CNC Screw Free End

Name: M12 5 Pin Male Straight Shielded Cable Connector with CNC Screw Free End
Brand: all-electronics-online.com
SKU: 823555605
Availability: InStock
Rating: 4.7 (82 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MC05C1LSG3ASB34
Standard:	IEC 61076-2-101
Key Coding:	a-Coding
Number Of Pins:	5 Pin
Connection Type:	Single Ended Cable

Product Description

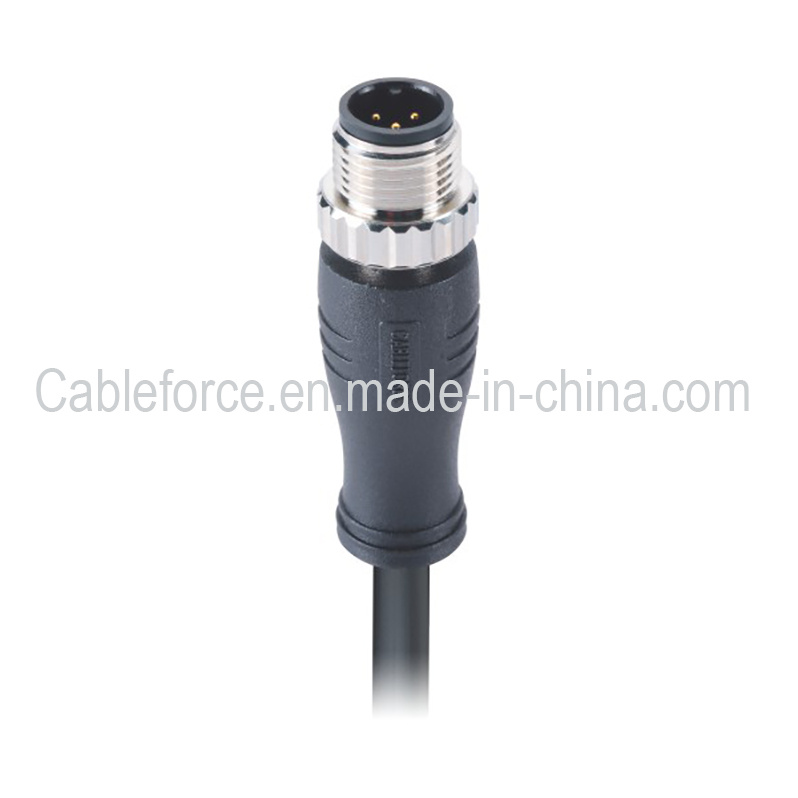

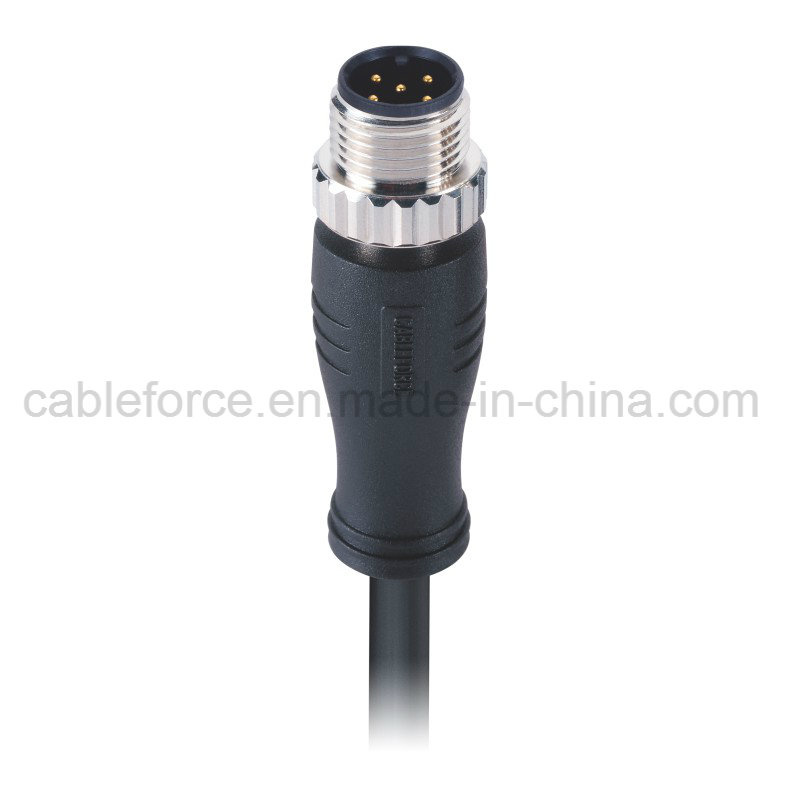

M12 5 pin male straight shielded cable connector with CNC screw free end

1. Descriptions
M12 Pre-molded (PUR/PVC)cable connectors with 12mm thread locking mechanism, rated IP67 protection degree, contacts configuration covers pins of 3-, 4-, 5-, 8-, 12 poles, 360°EMC shielding is available for option. Compliant with IEC 61076-2-101 and mainly designed for signal transmission.
(1) PUR and PVC cable for option
(2) Cable length: 1M, 2M, 3M or base on customer requirement
(3) Degree of protection IP 67
(4) 2, 3, 4, 5, 8, 12 poles per connector are available
(5) Anti-vibration locking screw design

2. Material data
Contacts plating: Gold plated, thickness 3μ"
Cable jacket material: By Custom
Overmold/ Shell: TPU
Connector contacts: Brass with gold plated
Coupling nut/screw: Brass with nickel plated screw

Standard	IEC61076-2-101	Gender	Male
Orientation	Stright	Coding	A-code
Sealing	O-ring	IP rating	IP67
Wire termination	Soldering	Rated current	4 A
Shielding	Shielded	Rated voltage	60 V
Insulation resistance	≥100 MΩ	Contacts resistance	≤ 5 mΩ

3. Applications
(1) Standard sensor, actuator, encoder, servo motors
(2) Factory automation and process control
(3) Packaging, labeling and logistic devices
(4) Industrial instrumentation
(6) Commercial electronics PCBA
(7) Industrial safety light curtain, light grid, switches
(8) Power supply

(9) Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
(10) LED display panel & outdoor LED lighting

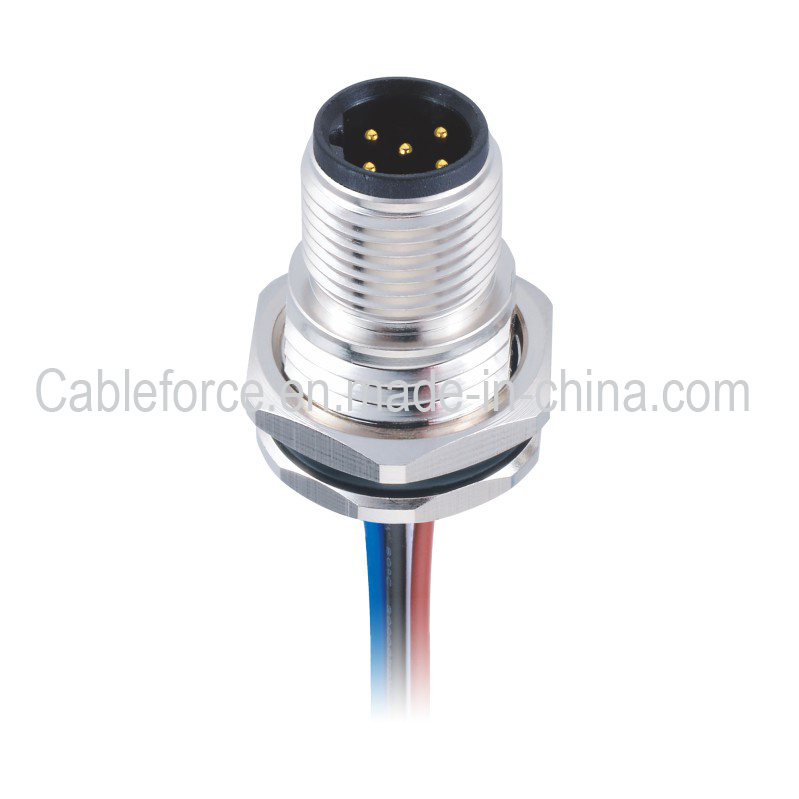

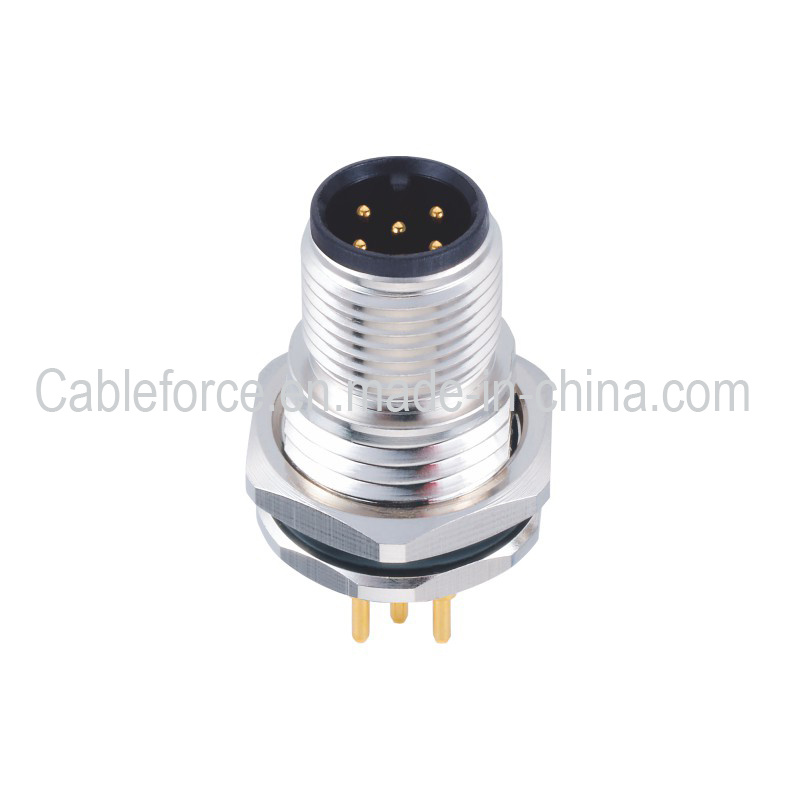

4.Similar product

5.Product centificate

6. Product packaging
(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery: 1~ 3 weeks

7.FAQ
(1) Q:Are you a manufacturer or trading company?
A:We are a connector factory.

(2) Q: What is the necessary information needed for quotation?
A:The series(M5,M8,M12,7/8"), coding, male or female, pin number, cable length etc.

(3) Q:What does Cableforce can provide for the product' certification?
A: IP67, CE and RoHS.

(4) Q:Can you provide samples?
A:Of course can be provided.

(5) Q:Sample lead time?
A:2-4 workdays

(6) Q: Volume order lead time?
A:3-10 workdays

(7) Q: How do you ship the finished product?
A:we can contact the shipping company or your shipping agent.The formal shipping way:DHL,FEDEX,UPS,TNT
