M12 5pin Female Field Wire-Able Assembly Connector
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
MC05A2LWG3AB |
| Connection Type: |
Field Wireable |
| Shielding: |
Non-Shielded |
| Wire Termination: |
Screw-Joint |
Product Description

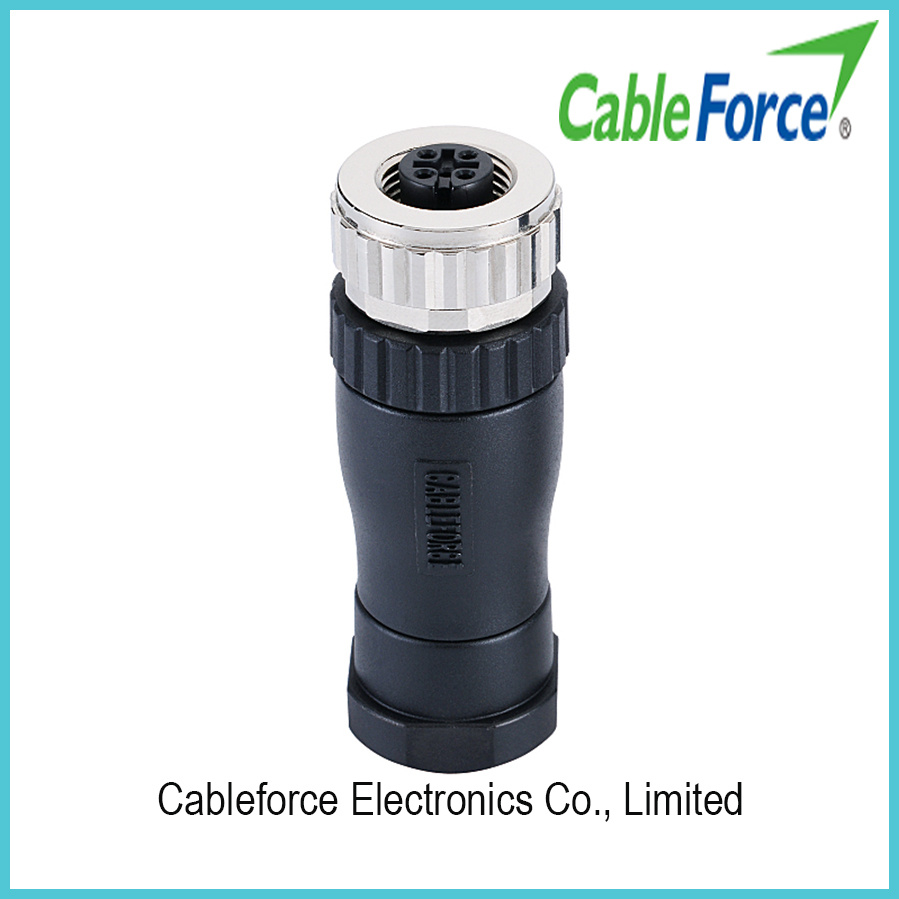

M12 5pin female field wire-able assembly connector
1.DescriptionsM12 Field wireable /installable connectors permit high flexibility for wiring cables in the field. It enables quick assembly and disassembly of often differing cable lengths. The wire connection normally use soldering termination, crimping and screw termination, CABLEFORCE offers both Plastic Shell and Metallic Shell with EMC shielding function.
(1) Screwing termination contacts
(2) 3, 4, 5, 8 poles per connector are available
(3) PUR/PVC cable accessories available upon customer requesting
(4) Operating voltage 300V-DC/ 250V-AC/ 60V/ 30V, Rated current 4A/ 2A
(5) UL94 V-0 PA66+GF plastic Housing / Metal shell
(6) Degree of protection IP672.Electrical and material dataRated current:4 A
Rated voltage:60 VInsulation resistance:≥100 MΩ
Contacts resistance:≤ 5 mΩOvermold/ Shell:NYLON66 + GF
Coupling nut/screw:Brass with nickel plated screw | Number of contacts | | | |
| O-ring | IP rating | IP67 |
| | | |
| | | 4 A |
| | | 60 V |
3.Applications (1) Sensors, actuators, encoders, servo motors
(2) Factory automation and process control
(3) Packaging, labeling and logistic devices
(4) Industrial instrumentation
(5) Commercial electronics PCBA
(6) Industrial safety light curtain, light grid, switches
(7) Power supply
(8) Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
(9) LED display panel & outdoor LED lighting
4.Quality statement(1) Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts, or Aluminum alloy screw.
(2) Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
(3) Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
(5) Temperature Range: Dynamic -25 ~ 80ºC, Static: -40 ~ 80ºC/ 90ºC.
(6) Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
(7) RoHS compliant.
5.Product certificate
6.Our companyCableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
7.Packing1. Our standard packing: Individual part with transparent PE bag with label;
2. Carton size: 44.5*36.5*23.5(mm)
3. OEM package available
4. Delivery : 1~ 3 weeks .8.FAQ(1) Q:Are you a manufacturer or trading company?
A:We are a connector factory.
(2) Q: What is the necessary information needed for quotation?
A:The series(M5,M8,M12,7/8"), coding, male or female, pin number, cable length etc.
(3) Q:What does Cableforce can provide for the product' certification?
A: IP67, CE and RoHS.
(4) Q:Can you provide samples?
A:Of course can be provided.
(5) Q:Sample lead time?
A:2-4 workdays
(6) Q: Volume order lead time?
A:3-15 workdays
(7) Q: How do you ship the finished product?
A:we can contact the shipping company or your shipping agent.The formal shipping way:DHL,FEDEX,UPS,TNT
