M12 8pin X-Code Male to Female Molded Cable Connector for Factory Automation

Name: M12 8pin X-Code Male to Female Molded Cable Connector for Factory Automation
Brand: all-electronics-online.com
SKU: 824266265
Availability: InStock
Rating: 4.6 (117 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MC08C3LSG30XSB14
Connection Type:	Double Ended Cable
Number Of Contacts:	8 Pin
Standard:	IEC 61076-2-109
Shielding:	Available

Product Description

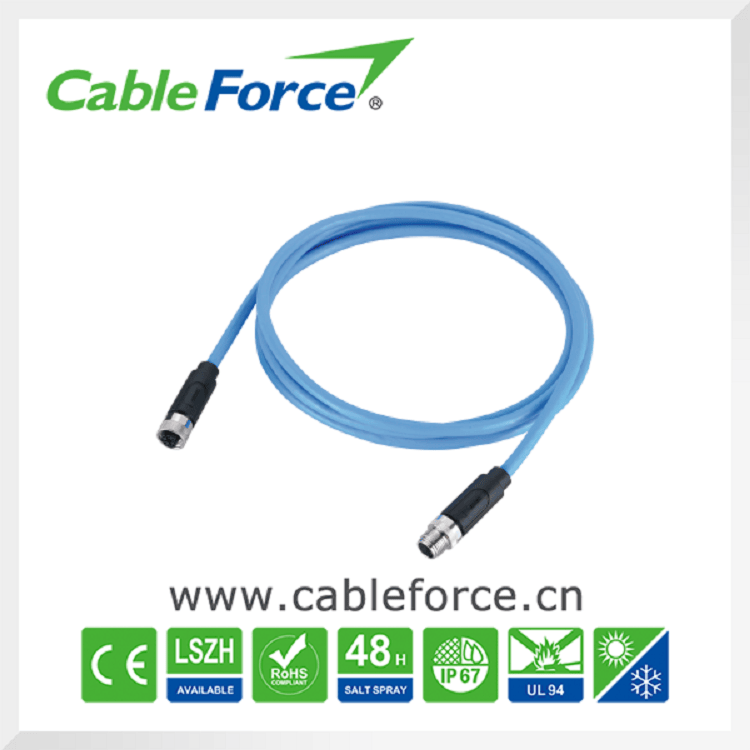

M12 8pin X-code male to female molded cable connector for industrial automation

1.Descriptions

The M12 metric size X-Coding connector, based on IEC 61076-2-109 standard, it is one of the most commonly used connector in the Industrial Ethernet, such as PROFINET, ETHERNET/IP. The M12 X-Coding offers various cable specification plugs, panel mounting receptacles and EMI shielded installable connectors. The M12 X-Coding connectors provides only 8-Pole contacts configuration with X-Coding keyway design. CABLEFORCE M12 X-Coding connectors are developed and designed to withstand harsh industrial and climatic environments with superior quality that assures very reliable connections. Cat 6E 26AWGx4pair+Al foie+Braid.Dark Green PUR Jacket.
(1) Cable plugs, field installable plugs, panel receptacles are available
(2) Cable length :3 Meters
(3) Degree of protection IP 67
(4) 8-pole per connector
(5) Operating voltage 48V; Current range: 0.5A

2.Material data

Contacts plating:Gold plated, thickness 30μ"

Overmold/ Shell:TPU

Connector contacts:Brass with gold plated

Insert/ Housing:TPU

Coupling nut/screw:Brass with nickel plated screw

Coding	X-code	Sealing	O-ring
Termination	Soldering	IP rating	IP67
Orientation	Straight	Shielding	Available
Insulation resistance	≥100 MΩ	Rated current	0.5 A
Contacts resistance	≤ 5 mΩ	Rated voltage	48 V

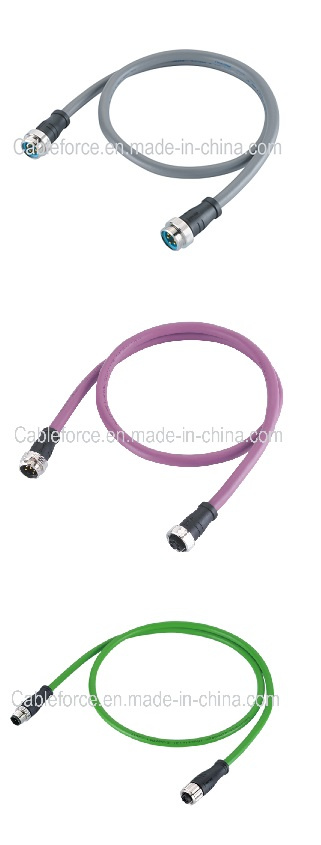

3.Similar product

4.Applications

Industrial ethernet: Ethernet/IP, Profinet
Factory automation and process control
Packaging, labeling and logistic devices
Industrial instrumentation
Commercial electronics PCBA
Industrial safety light curtain, light grid, switches
Power supply
LED display panel

5.Product centificate

6.Product packing
(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery : 1~ 3 weeks .

7.FAQ

(1) Q:Are you a manufacturer or trading company?
A:We are a connector factory.

(2) Q: What is the necessary information needed for quotation?
A:The series(M5,M8,M12,7/8"), coding, male or female, pin number, cable length etc.

(3) Q:What does Cableforce can provide for the product' certification?
A: IP67, CE and RoHS.

(4) Q:Can you provide samples?
A:Of course can be provided.

(5) Q:Sample lead time?
A:2-4 workdays

(6) Q: Volume order lead time?
A:3-10 workdays

(7) Q: How do you ship the finished product?
A:we can contact the shipping company or your shipping agent.The formal shipping way:DHL,FEDEX,UPS,TNT

Company Profile

Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

Business

CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.

Products range

Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;

Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;

NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;

I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
