M12 Cable M12 Connector M12 Circular Connector M12 Waterproof Connector
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
MC05C3LSG3AB34 |
| Standard: |
IEC 61076-2-101 |
| Connection Type: |
Double Ended Cable |
| Ambient Temperature: |
Minus 25 Degrees Celsius to 80 Degrees Celsius |
Product Description
M12 cable M12 connector M12 circular connector M12 waterproof connector
1.DescriptionsM12 Pre-molded (PUR/PVC) cable connectors with 12mm thread locking mechanism, rated IP67 protection degree, contacts configuration is 5 poles. Compliant with IEC 61076-2-101 and mainly designed for signal transmission.
(1) Cable length: 1M, 2M, 3M or base on customer requirement
(2) Degree of protection IP 67
(3) 3, 4, 5, 8, 12 poles per connector are available
(4) Operating voltage 250V/60V/30V; Current range: 4A, 2A, 1.5A
(5) Anti-vibration locking screw design2.Electrical and material dataInsulation resistance:≥100 MΩContacts resistance:≤ 5 mΩ
Rated current:4 ARated voltage:60VContacts plating:Gold plated, thickness 3μ"Connector contacts:Brass with gold platedCoupling nut/screw:Brass with nickel plated screwInsert/ Housing:TPUOvermold/ Shell:TPU | 5 pin | Coding | A-code |
| Shielding | | Termination | Soldering |
| IP rating | IP67 | Orientation | Straight |
| | Sealing | O-ring |

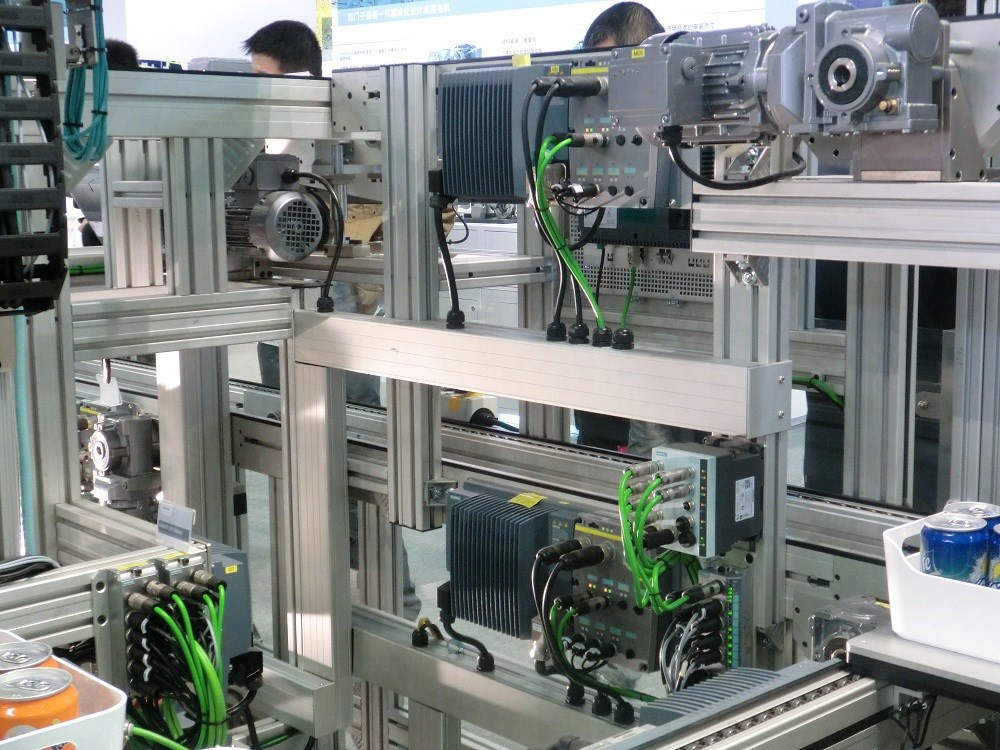

3.Applications(1) Sensor, actuator, encoder, servo motors
(2) Factory automation and process control
(3) Packaging, labeling and logistic devices
(4) Industrial instrumentation
(5) Commercial electronics PCBA
(6) Industrial safety light curtain, light grid, switches
(7) Power supply
(8) Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
(9) LED display panel & outdoor LED lighting
4.Quality statement(1) Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
(2) Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
(3) Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
(4) Temperature Range: Dynamic -25 ~ 80ºC, Static: -40 ~ 80ºC/ 90ºC.
(5) Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
(6) Cable bending endurance: ≥3000 times, bending angle ±90°, loading 250g, frequency 40 times per minute, axle radius 12.7mm.
(7) RoHS compliant.

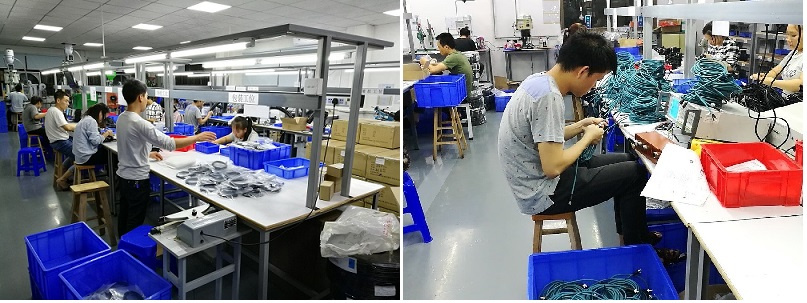

6.Company ProfileCableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

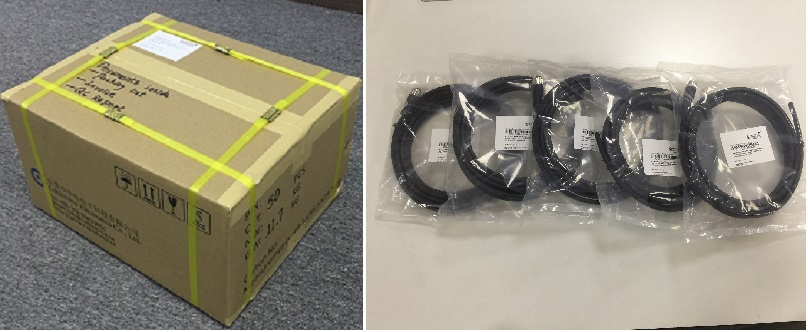

7.Product packing1. Our standard packing: Individual part with transparent PE bag with label;
2. Carton size: 44.5*36.5*23.5(mm)
3. OEM package available
4. Delivery : 1~ 3 weeks
8.FAQ(1) Q: Are you a manufacturer or trading company?
A: We are a connector factory.
(2) Q: What is the necessary information needed for quotation?
A: The series(M5, M8, M12, 7/8"), coding, male or female, pin number, cable length etc.
(3) Q: What does Cableforce can provide for the product' certification?
A: IP67, CE and RoHS.
(4) Q: Can you provide samples?
A: Of course can be provided.
(5) Q: Sample lead time?
A: 2-4 workdays
(6) Q: Volume order lead time?
A: 3-10 workdays
(7) Q: How do you ship the finished product?
A: We can contact the shipping company or your shipping agent. The formal shipping way: DHL, FedEx, UPS, TNT

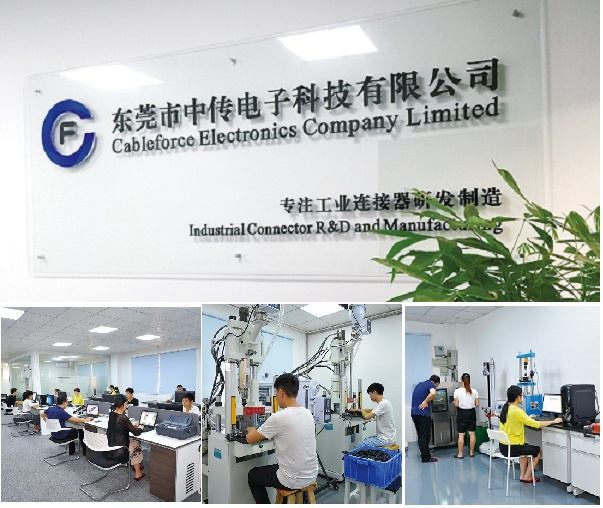

Company Profile
Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
Business
CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.
Products range
Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;
Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;
NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;
I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
