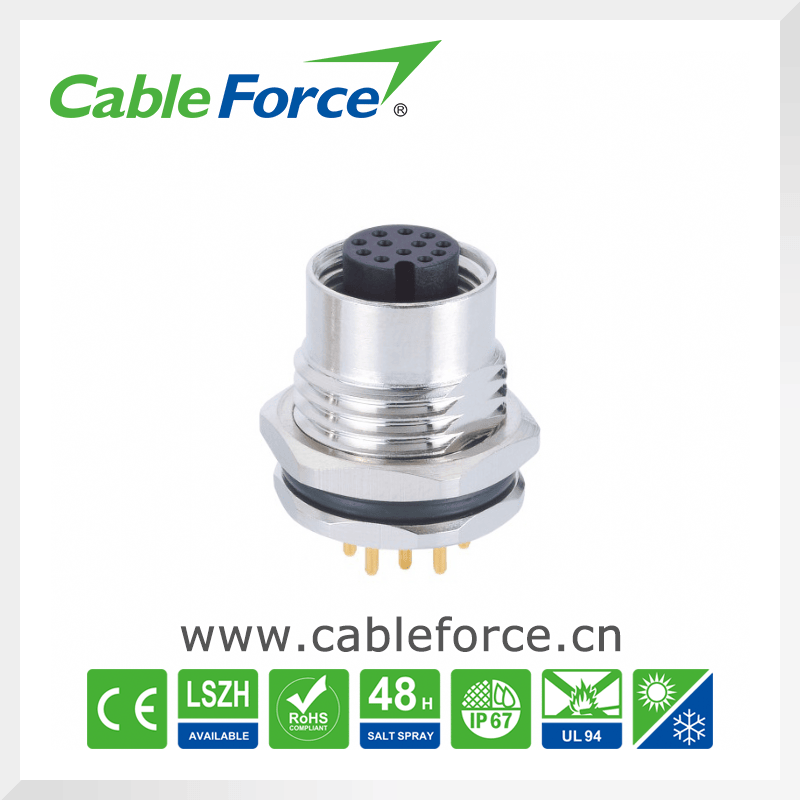

M12 Female Panel Front Mounting Electrical Connector with PCB Contacts Encoder Connector
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
MC12P2LPG3AB |
| Standard: |
IEC 61076-2-101 |
| Shielding: |
Non-Shielded |
| Connection Type: |
Panel Mount, Front Fastened |
Product Description
M12 female panel front mounting electrical connector with PCB contacts encoder connector1.Product descriptionCABLEFORCE offers a complete line of M12 panel mount connector solutions for enclosure, panel and PCB applications. These M12 connectors are offered in both male and female versions and are rated to IP67. These connectors are designed for both front mounting and rear mounting with PG9 panel locking thread.
(2) Operating voltage 250V-AC/ 60V/ 30V, current 4A / 1.5A
(3) Protection degree IP67
(4) Temperature range: -40°C ~ + 105°C
(5) UL94-V0 flame retardant degree2.Material dataContacts plating:Gold plated, thickness 3μ"
Overmold/ Shell:Metal shellConnector contacts:Brass with gold platedInsert/ Housing:NYLON66 + GFCoupling nut/screw:Brass with nickel plated screw | number of contacts | | | |
| | Sealing | |
| | | |
| | | 1.5 A |
| | | 30 V |
3.Applications(1) Standard sensor, actuator, encoder, servo motors
(2) Factory automation and process control
(3) Packaging, labeling and logistic devices
(4) Industrial instrumentation
(5) Commercial electronics PCBA
(6) Industrial safety light curtain, light grid, switches
(7) Power supply
(8) Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
(9) LED display panel & outdoor LED lighting
4.Quality statement(1) Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
(2) Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
(3) Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
(4) Temperature Range: Dynamic -25 ~ 80ºC, Static: -40 ~ 80ºC/105ºC.
(5) Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
(6) RoHS compliant.5.Our product Certifications
6.Product packing(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery : 1~ 3 weeks
7.FAQ(1) Q:Are you a manufacturer or trading company?
A:We are a connector factory.
(2) Q: What is the necessary information needed for quotation?
A:The series(M5,M8,M12,7/8"), coding, male or female, pin number, cable length etc.
(3) Q:What does Cableforce can provide for the product' certification?
A: IP67, CE and RoHS.
(4) Q:Can you provide samples?
A:Of course can be provided.
(5) Q:Sample lead time?
A:2-4 workdays
(6) Q: Volume order lead time?
A:3-10 workdays
(7) Q: How do you ship the finished product?
A:we can contact the shipping company or your shipping agent.The formal shipping way:DHL,FEDEX,UPS,TNT
Company Profile
Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
Business
CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.
Products range
Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;
Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;
NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;
I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
