M12 Waterproof Connector, 3 Pin a Code Female Right Angled IP67 Circular Connector

Name: M12 Waterproof Connector, 3 Pin a Code Female Right Angled IP67 Circular Connector
Brand: all-electronics-online.com
SKU: 822633015
Availability: InStock
Rating: 4.6 (97 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MC03C2RSG3AB34
Insulation Resistance:	More Than 100 Mohm
Key Coding:	a-Coding
Shielding:	Non-Shielded

Product Description

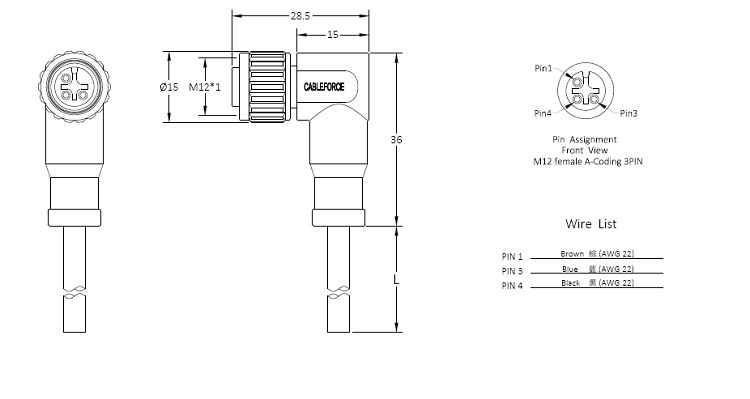

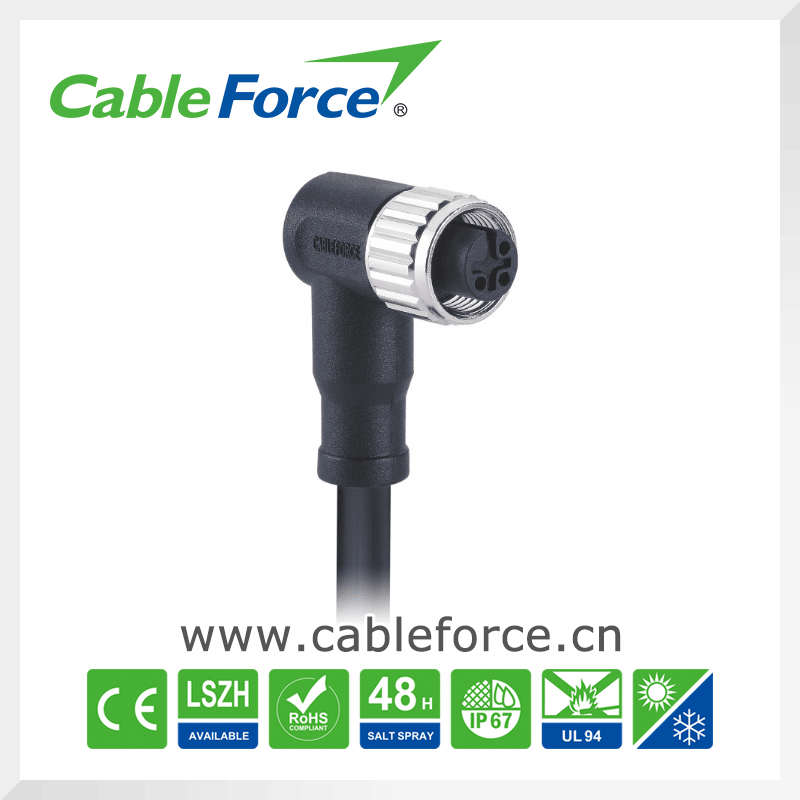

M12 Waterproof Connector, 3 Pin a Code Female Right Angled IP67 Circular Connector

1.Descriptions
M12 connector is the most commonly used connector in the factory automation,connecting with sensors ,robots, motors ,packaging and delivery system, outdoor LED modules, security light curtain or grid, railway transportation, fieldbus, boat navigation, and new energy industries. CABLEFORCE have designed and developed the M12 cable plugs with superior quality for the reliable connections in harsh industrial conditions and climatic environments.
(1) PUR and PVC cable for option
(2) M12 circular connector according to IEC 61076-2-101
(3) Waterproof rating is IP67, protected from dust and water during immersion, resistant to many oils and chemical
(4) Anti-vibration locking screw design

2.Mterial data
Coupling nut/screw:Brass with nickel plated screw
Connector contacts:Brass with gold plated
Insert/ Housing:TPU
Contacts plating:Gold plated, thickness 3μ"

Standard	IEC 61076-2-101	IP rating	IP67
Orientation	angled	Gender	female
Sealing	O-ring	Coding	A-coding
Rated current	4 A	Wire termination	soldering
Rated voltage	250 V	Shielding	Non-shielded

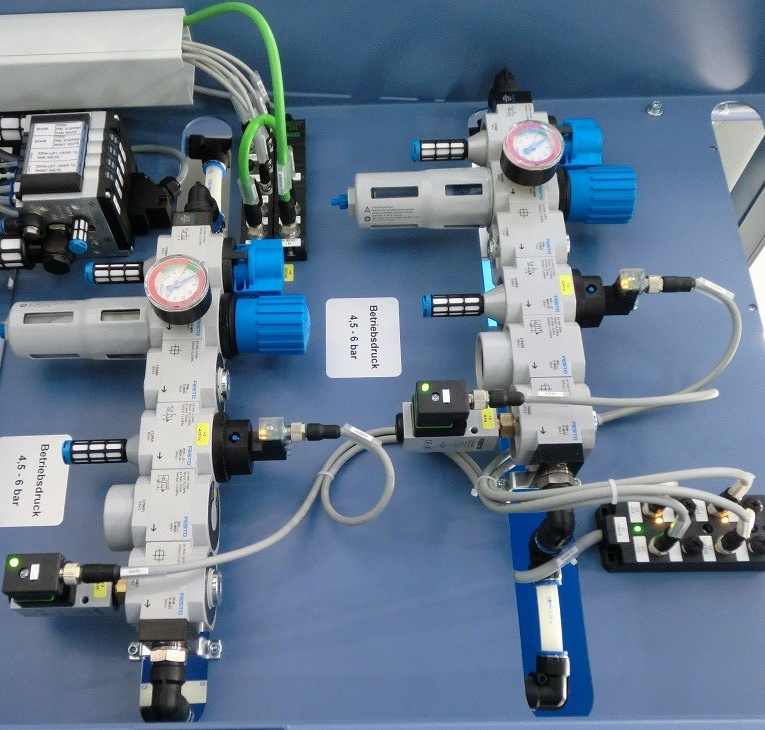

3.Applications

(1) Standard sensor, actuator, encoder, servo motors
(2) Factory automation and process control
(3) Packaging, labeling and logistic devices
(4) Industrial instrumentation
(5) Commercial electronics PCBA
(6) Industrial safety light curtain, light grid, switches
(7) Power supply
(8) Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
(9) LED display panel & outdoor LED lighting

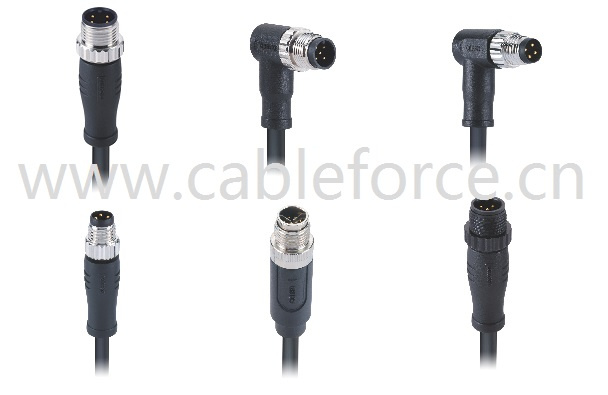

4.Similar product

5.Product centificate

6.Product packing
(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery : 1~ 3 weeks .

7.FAQ
(1) Q:Are you a manufacturer or trading company?
A:We are a connector factory.

(2) Q: What is the necessary information needed for quotation?
A:The series(M5,M8,M12,7/8"), coding, male or female, pin number, cable length etc.

(3) Q:What does Cableforce can provide for the product' certification?
A: IP67, CE and RoHS.

(4) Q:Can you provide samples?
A:Of course can be provided.

(5) Q:Sample lead time?
A:2-4 workdays

(6) Q: Volume order lead time?
A:3-10 workdays

(7) Q: How do you ship the finished product?
A:we can contact the shipping company or your shipping agent.The formal shipping way:DHL,FEDEX,UPS,TNT

Company Profile

Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

Business

CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.

Products range

Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;

Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;

NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;

I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
