M12 Waterproof Connector 8pin X-Code Male to Female Connector for Industrial Automation with Cable
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
MC08C3LSG30XSBRG30 |
| Connection Type: |
Double Ended Cable |
| Standard: |
IEC 61076-2-109 |
| Termination: |
Soldering |
| Cable Length: |
Cable Length Base on Customer Requesting |
Product Description
M12 waterproof connector 8pin X-code male to female connector for industrial automation with cable
1.DescriptionsCableforce developed the Profinet cable and connectors, M12 X-coding connector to fulfill the Profinet types application requirements and fully compatible with standard IEC 61076-2-109.2.Electrical and mechanical dataContacts plating:Gold plated, thickness 3μ"
Coupling nut/screw:Brass with nickel plated screw
Connector contacts:Brass with gold platedOvermold/ Shell:TPUInsert/ Housing:TPURated current:0.5 A
Rated voltage:48 VInsulation resistance:≥100 MΩContacts resistance:≤ 5 mΩ
| Standard | IEC61076-2-109 | Gender | Male to female |
| Orientation | Straight | Coding | X-code |
| Sealing | O-ring | IP rating | IP67 |
| Wire termination | Soldering | Shielding | Available |

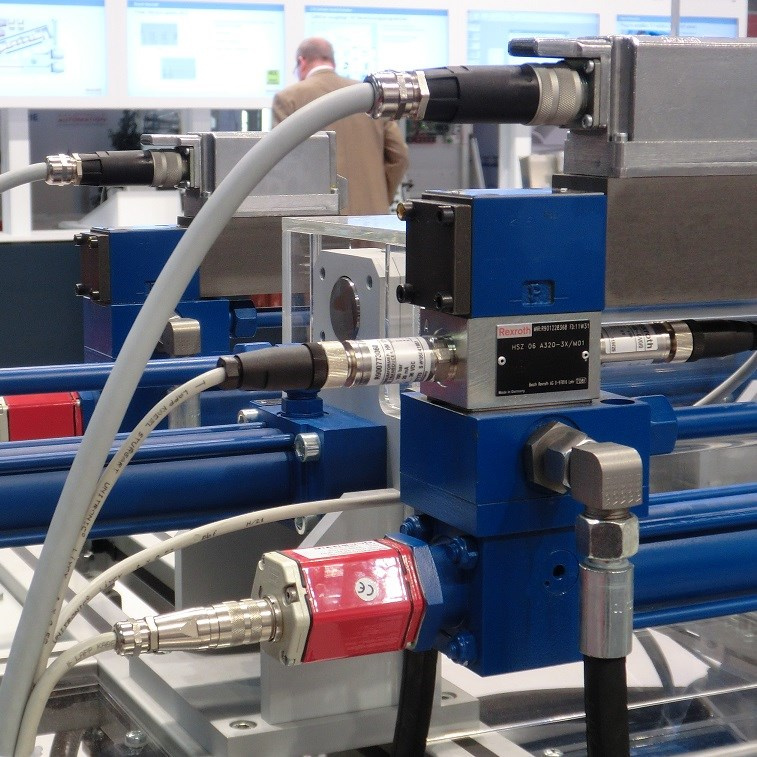

3.Applications(1) Sensor, actuator, encoder, servo motors
(2) Factory automation and process control
(3) Packing, labeling and logistic devices
(4) Industrial instrumentation
(5) Commercial electronics PCBA
(6) Industrial safety light curtain, light grid, switches
(7) Power supply
(8) Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
(9) LED display panel and outdoor LED lighting
4.Quality statement(1) Screws/nuts material: brass C3604 with 120μ nickel-plated, CNC parts
(2) male contacts material: brass C3604 with 3μ gold-plated on nickel base, machined solid pin
(3) female contacts material: Phosphor bronze C5441 with 3μ gold-plated on nickel base, machined solid pin
(4) Protection degrees: IP67 in locked status, IP68 base on customer specific requirements
(5) Cable bending endurance: ≥3000 times, bending angle ±90°, loading 250g, frequency 40 times per minute, axle radius 12.7mm
(6) RoHS Directive-compliant.
5 .Product certificate

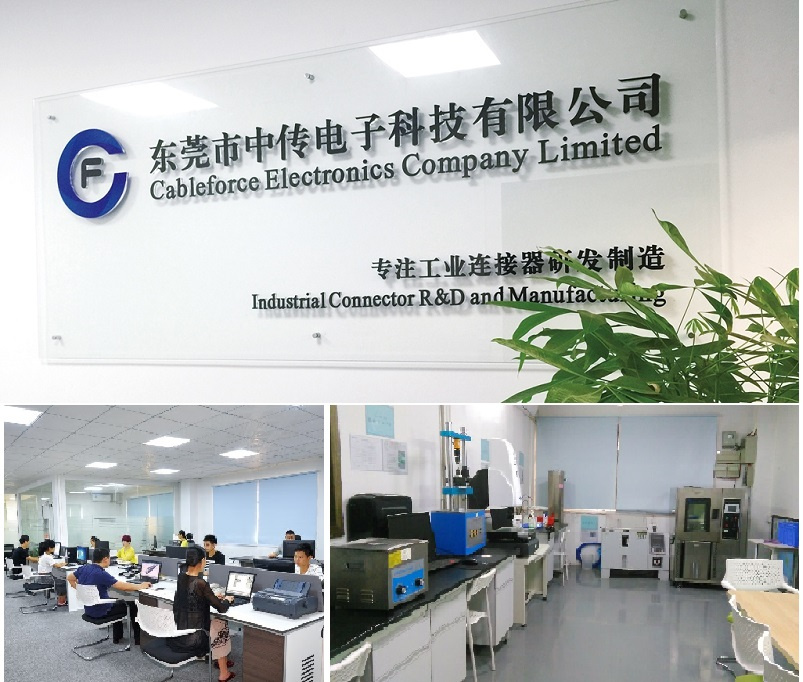

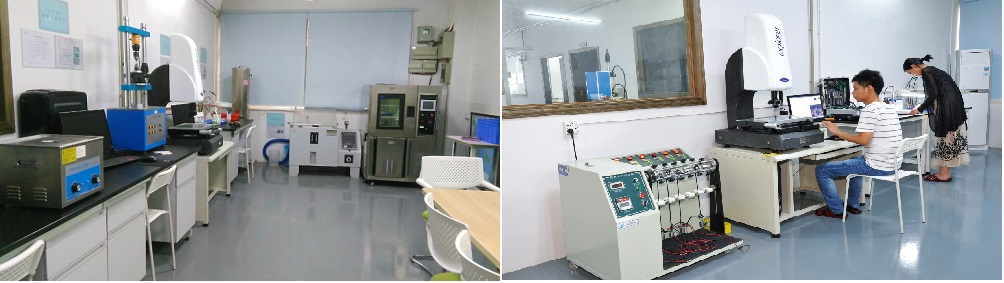

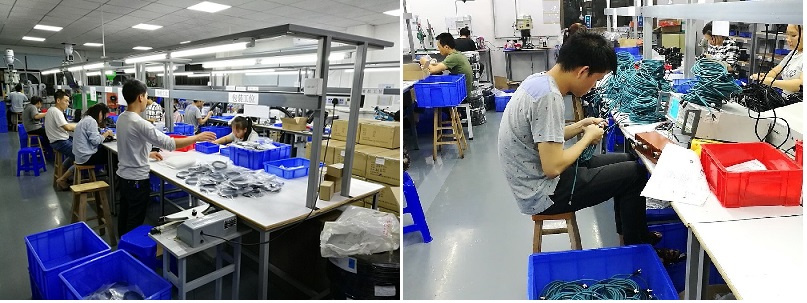

6.Company informationCableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
7.Packing(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery : 1~ 3 weeks.
8.Our servicewe supply M5 M8 M12 cable connectors and sockets,phoniex Pluggable Terminal Block,heavy duty circular connector,and other many kinds of terminals. If you need cable harness,we also can supply harness processing,just let us now the spec of the cable and the connectors, we will give you a cable harness drawing.
(1) We can reply your inquiry within 24 hours.
(2) Payment terms acceptable L/C, T/T,Paypal and Western Union,MoneyGram
(3) Many Shipping models: By Air, By Sea, Express(DHL, Fedex, TNT,UP,EMS)
(4) Lead(Delivery) time: Normally 15 days after confirming order and payment received.
(5) Port of loading: Shenzhen
(6) Guarantee Period : Within 12 months after shipment.
(7) Operating guide(Instruction)upon request.
(8) Customized drawing ,sample and package can be done according to your requirements
Company Profile
Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
Business
CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.
Products range
Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;
Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;
NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;
I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
