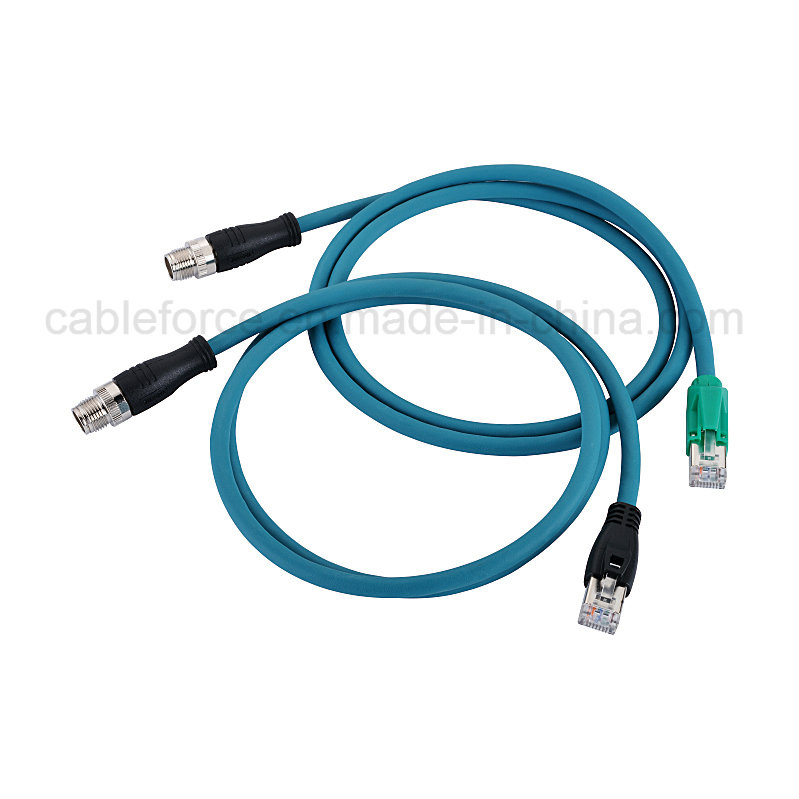

M12 Waterproof Connector 8pin X-Coding Male to RJ45 Cordset
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,D/P,Western Union,Money Gram |
| Prod Model: |
MC08C1LSG30XSB14-RJ45 |
| Shielding: |
Shielded |
| Standard: |
IEC 61076-2-109 |
| Connection Type: |
Double Ended Cable |
Product Description

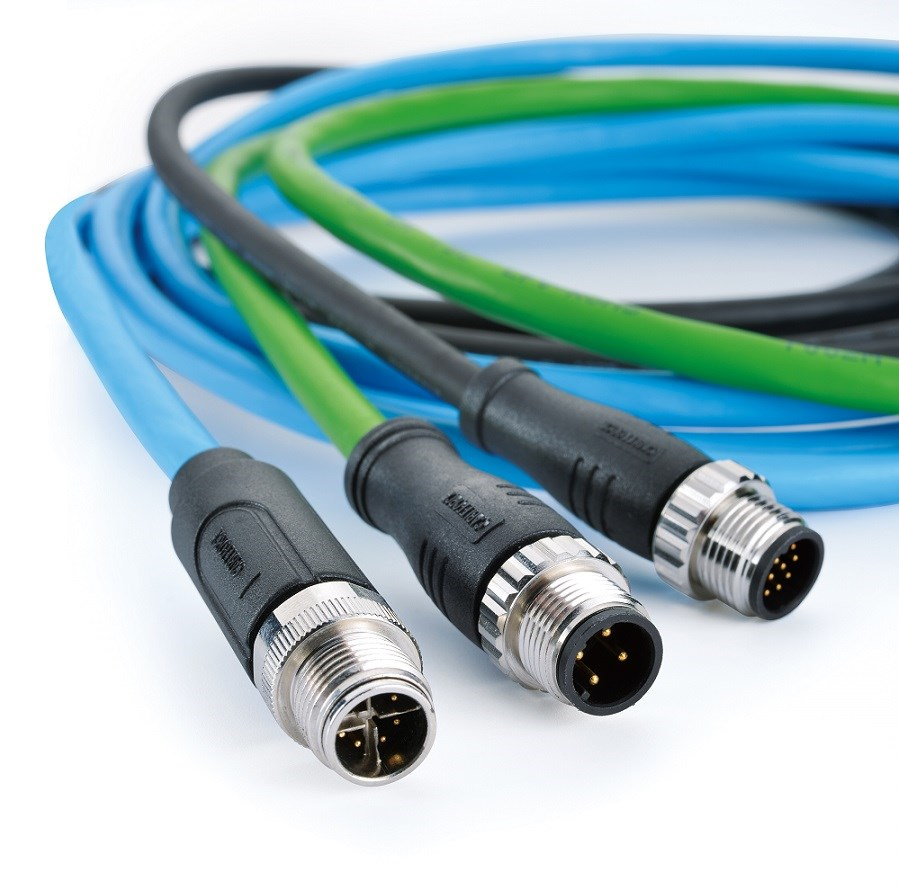

M12 waterproof connector 8pin X-coding male to RJ45 cordset
1.DescriptionsCableforce developed the Profinet cable and connectors, M12 X-coding connector to fulfill the Profinet types application requirements and fully compatible with standard IEC 61076-2-109.2.Electrical and mechanical dataCoding: X-code
Connector contacts: brass with gold-plated
Coupling nut/screw: brass with nickel-plated screw
IP rating: IP67
Wire termination: soldering
Ambient temperature: -25 to 80°C
Rated current: 0.5A
Rated voltage: 48V
Insulation resistance: ≥100MΩ
Contacts resistance: ≤5mΩ
3.Applications(1) Sensor, actuator, encoder, servo motors
(2) Factory automation and process control
(3) Packing, labeling and logistic devices
(4) Industrial instrumentation
(5) Commercial electronics PCBA
(6) Industrial safety light curtain, light grid, switches
(7) Power supply
(8) Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
(9) LED display panel and outdoor LED lighting4.Product certificate

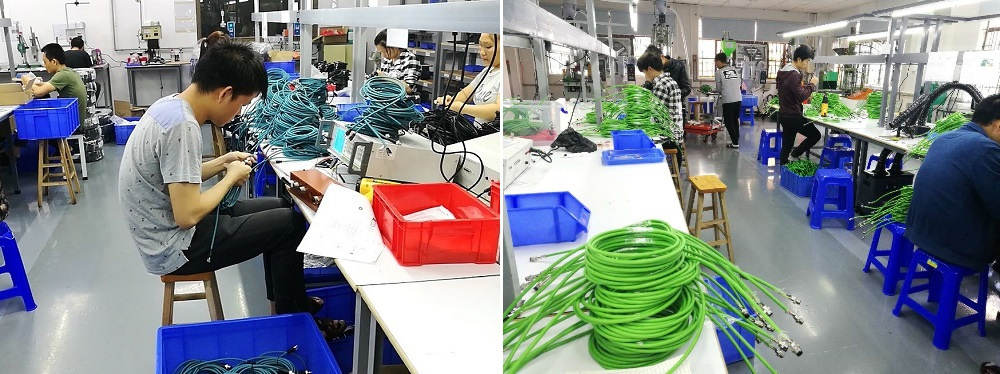

5.Our companyCableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
6.Packing(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery : 1~ 3 weeks .8.Our servicewe supply M5 M8 M12 cable connectors and sockets,phoniex Pluggable Terminal Block,heavy duty circular connector,and other many kinds of terminals. If you need cable harness,we also can supply harness processing,just let us now the spec of the cable and the connectors, we will give you a cable harness drawing.
(1) We can reply your inquiry within 24 hours.
(2) Payment terms acceptable L/C, T/T,Paypal and Western Union,MoneyGram
(3) Many Shipping models: By Air, By Sea, Express(DHL, Fedex, TNT,UP,EMS)
(4) Lead(Delivery) time: Normally 15 days after confirming order and payment received.
(5) Port of loading: Shenzhen
(6) Guarantee Period : Within 12 months after shipment.
(7) Operating guide(Instruction)upon request.
(8) Customized drawing ,sample and package can be done according to your requirements
Company Profile
Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
Business
CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.
Products range
Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;
Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;
NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;
I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
