M75.03 New Digital Underfloor Heating Thermostats Programmable Temperature Controller

Name: M75.03 New Digital Underfloor Heating Thermostats Programmable Temperature Controller
Brand: all-electronics-online.com
SKU: 800029365
Availability: InStock
Rating: 4.9 (119 reviews)

Price:	US $ 16.25/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	M75.03
Voltage:	230VAC
Current:	3A

Product Description

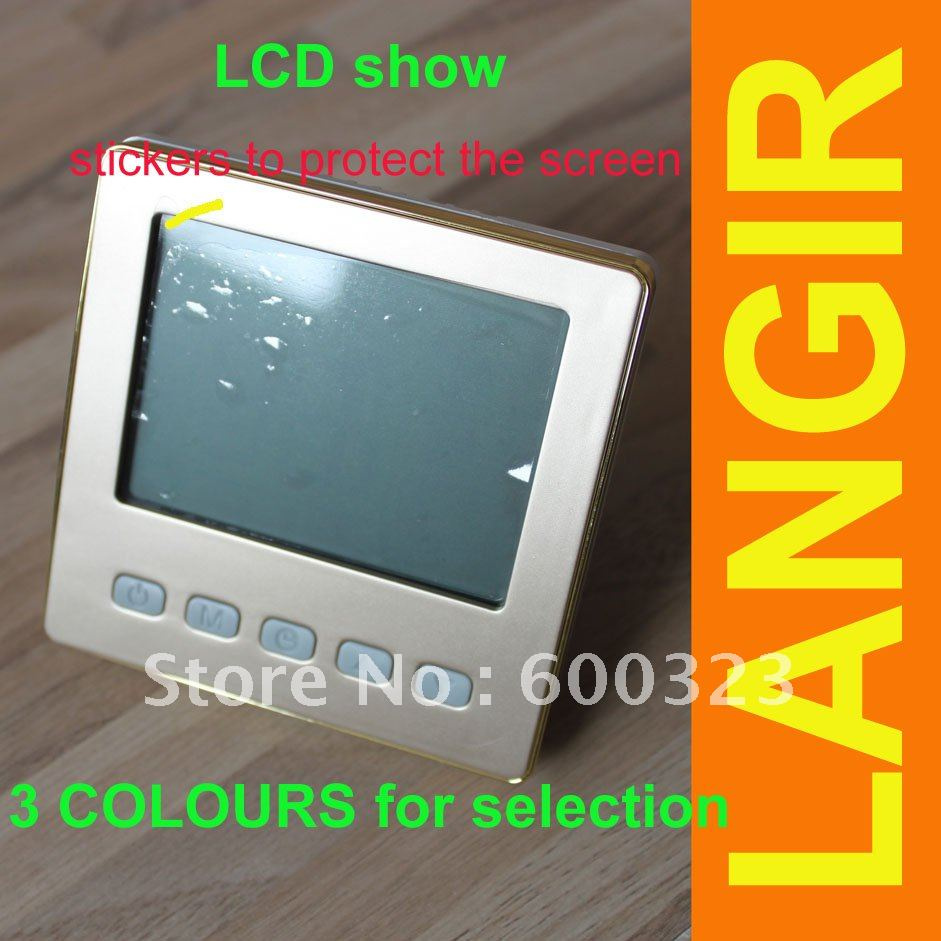

M75.03 digital heating thermostat for 3 colours

Technical data

P.S.: 3A IS FOR WATER HEATING SYSTEM

Voltage : AC230V (AC110V/AC24V available)
Power consumption : 2W
Setting range : 5°C~90°C
Limitation range : 5°C~99°C (factory setting: 28°C~32°C)
Switching differential : ±0.5K
Ambient temperature : -5°C~50°C
Protective housing : IP20
Housing material : self-extinguishing PC
Floor sensor : rubber-thermoplastic NTC sensor, cable length is 3m

Weekly circulation, it is possible to set 6 periods called events each day with different temperatures, also you can select "manual mode" or "comfort mode" according to your individual requirements. The thermostat is recommended for the control of electric heating devices or on/off valve actuator used in water-based heating systems.

Model	Current	Application
M75.03	3A	For control of electric actuator or electrothermal actuator
