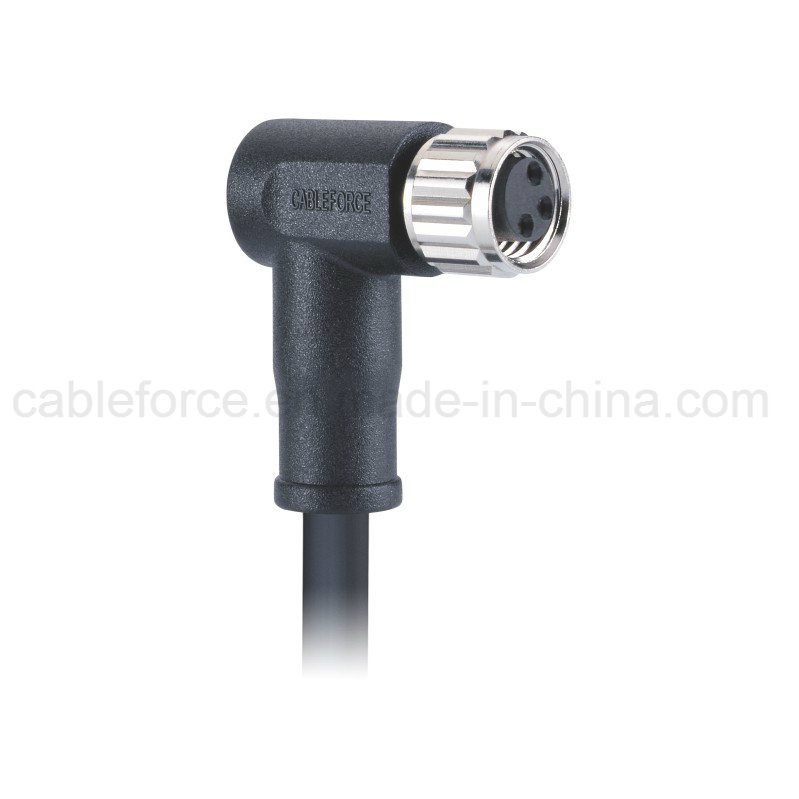

M8 3pin Female Right Angled Molded Cable Connector for Sensor with IP67 Rating
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
MB03C2RSG3AB25 |
| Cable Length: |
Base on Customer Request |
| Connection Type: |
Single Ended Cable |
| Standard: |
IEC 61076-2-104 |
Product Description
M8 3pin female right angled molded cable connector for sensor with IP67 rating
1.DescriptionsThe M8 connector is designed for the device connection for sensor/actuator boxes, field-bus modules and industrial controllers. It provides with 3, 4, 5, 6, 8 contacts configuration cable cordsets and panel receptacles, most of the connectors are either factory PUR/PVC cable overmolded or supplied with attached wire leads. 360°EMC shielding is available as option. With 8mm threaded joint, quick and easy mating and locking, even in places difficult to reach, anti vibration locking design.
Part No.:MB03C2RSG3AB25
Contacts plating:Gold plated, thickness 3μ"
Standard:IEC 61076-2-104Wire insulation:PVCOvermold/ Shell:TPUInsert/ Housing:TPUConnector contacts:Brass with gold plated
3.Applications(1) Sensor and actuators
(2) Industrial camera
(3) Industrial I/O connections
(4) Material handling
(5) Pharmaceutical manufacturing
(6) Robotic systems; Semiconductors
(8) Packaging, Labeling & Logistic
(1) Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
(2) Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
(3) Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
(4) Temperature Range: Dynamic -25 ~ 80ºC, Static: -40 ~ 80ºC/105ºC.
(5) Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
(6) Cable bending endurance: ≥3000 times, bending angle ±90°, loading 250g, frequency 40 times per minute, axle radius 12.7mm.
(7) RoHS compliant.
5.Product certification

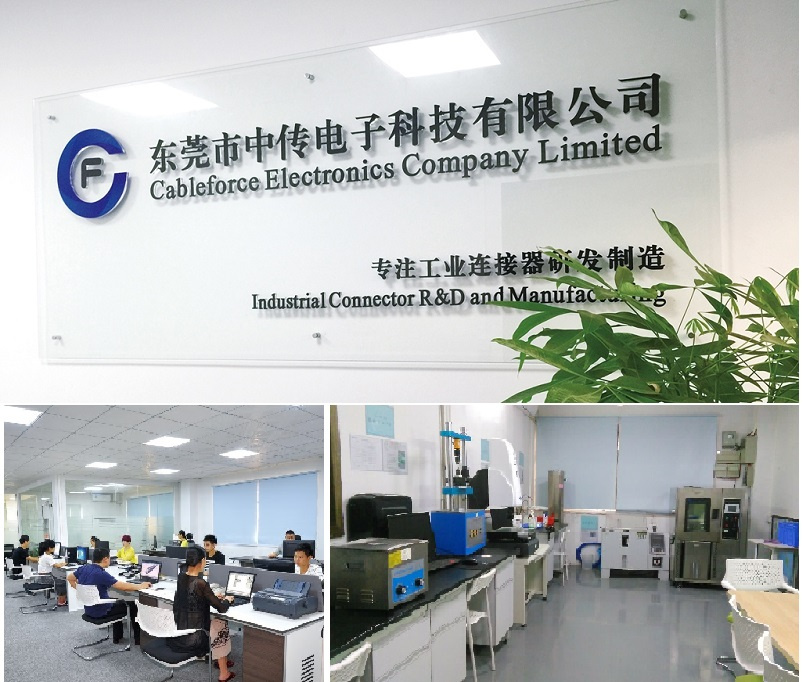

6.Company profileCableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
7.Packing(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery : 1~ 3 weeks 8.FAQ(1) Q:Are you a manufacturer or trading company?
A:We are a connector factory.
(2) Q: What is the necessary information needed for quotation?
A:The series(M5,M8,M12,7/8"), coding, male or female, pin number, cable length etc.
(3) Q:What does Cableforce can provide for the product' certification?
A: IP67, CE and RoHS.
(4) Q:Can you provide samples?
A:Of course can be provided.
(5) Q:Sample lead time?
A:2-4 workdays
(6) Q: Volume order lead time?
A:3-10 workdays
(7) Q: How do you ship the finished product?
A:we can contact the shipping company or your shipping agent.The formal shipping way:DHL,FEDEX,UPS,TNT
Company Profile
Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
Business
CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.
Products range

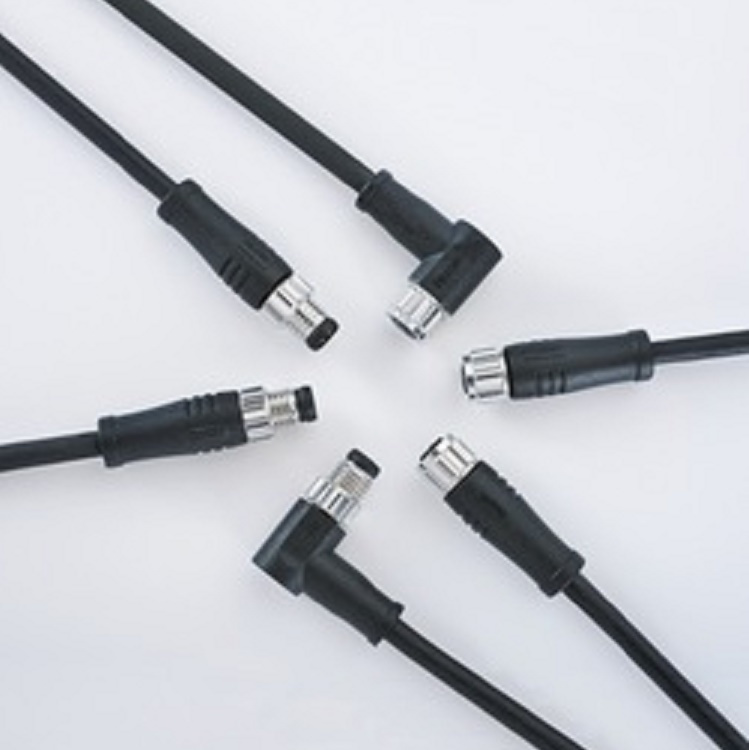

Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;
Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;
NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;
I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
