M8 3pin Male Panel Mount Connector Front Fastened Circular Wire Cnnector

Name: M8 3pin Male Panel Mount Connector Front Fastened Circular Wire Cnnector
Brand: all-electronics-online.com
SKU: 826003085
Availability: InStock
Rating: 4.5 (68 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MB03P1LSG3AB25
Standard:	IEC 61076-2-104
Shielding:	Non-Shielded
Connection Type:	Panel Mount, Front Fastened

Product Description

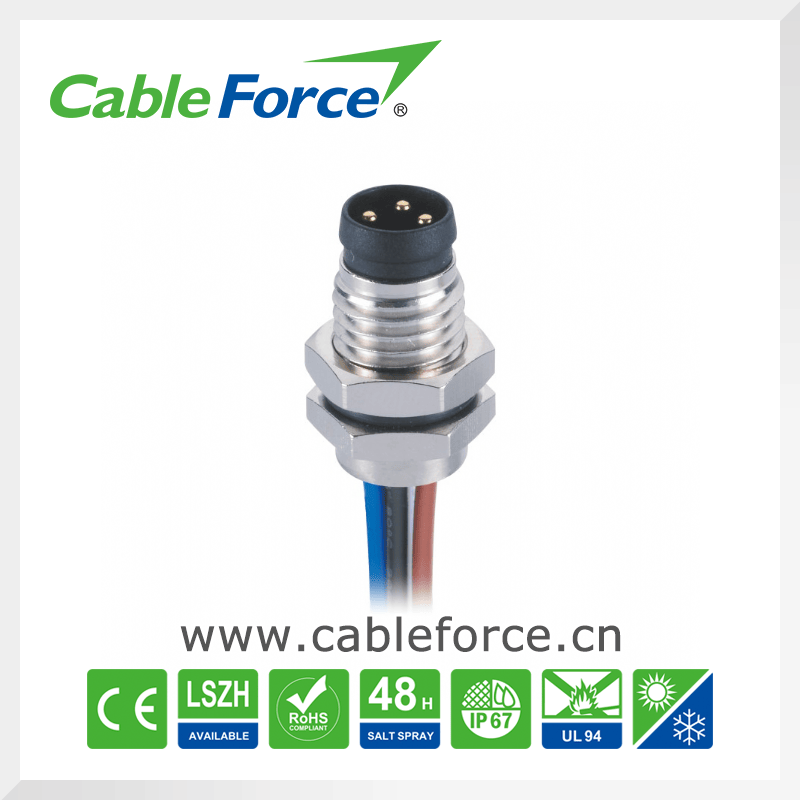

M8 3pin male panel mount connector front fastened circular wire cnnector

1.Product description

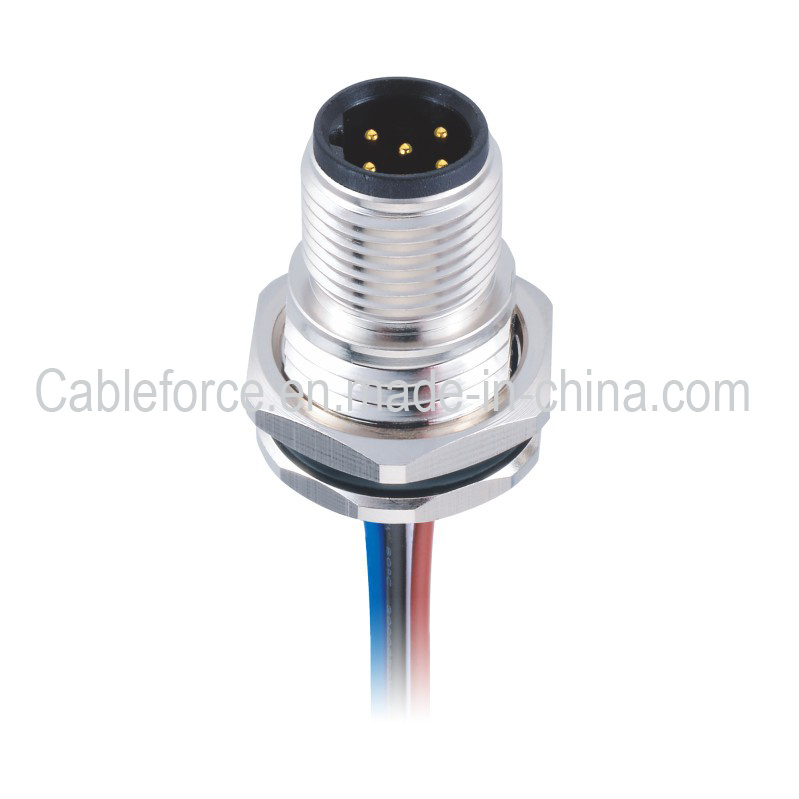

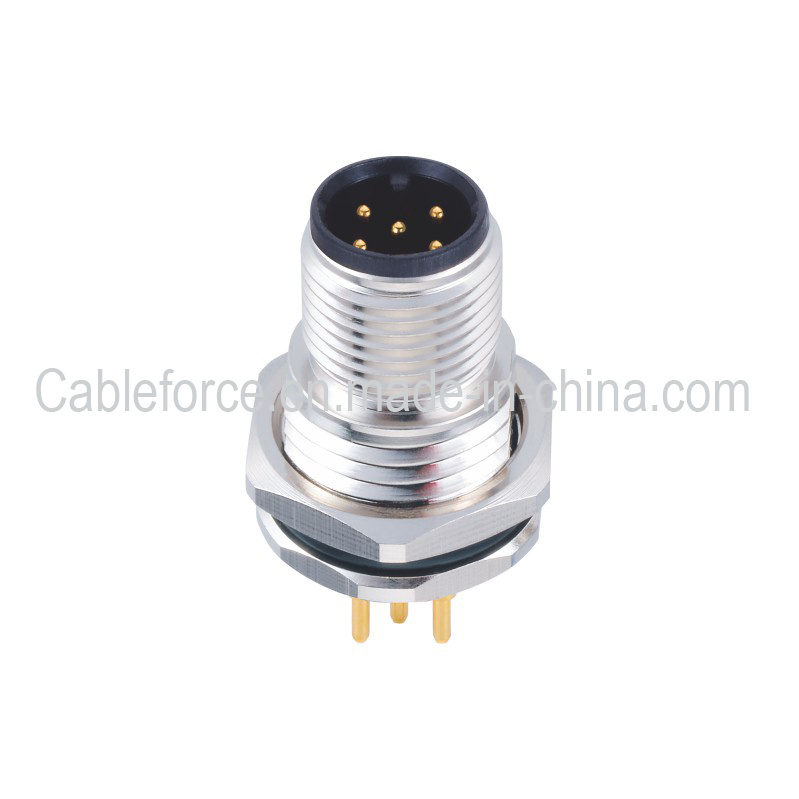

The M8 panel receptacles are ideal for compact and space-sensitive industrial applications. CABLEFORCE M8 panel connectors are available with solder termination and PCB panel assembly type, with rear mounting and front mounting.

(1) 3, 4, 5 (B-Coding), 6, 8 poles are available
(2) Operating voltage 60V/ 30V, rated current 3A/1A
(3) Protection degree IP67
(4) Temperature range: -40°C ~ + 105°C

2.Material data

Contacts plating:Gold plated, thickness 3μ"

Wire insulation:PVC

Overmold/ Shell:Metal shell

Connector contacts:Brass with gold plated

Insert/ Housing:TPU

Coupling nut/screw:Brass with nickel plated

Number of contacts	3 pin	Coding	A-Code
Sealing	O-ring	IP rating	IP67
Shielding	Non-Shielded	Orientation	Straight
Wire gauge	24AWG/0.25mm2	Rated current	3 A
Wire Termination	Soldering	Rated voltage	60 V

3.Applications
Sensor and actuators

Industrial camera
Industrial I/O connections
Material handling
Pharmaceutical manufacturing
Robotic systems; Semiconductors
Packaging, Labeling & Logistic

4.Similar product

5.Our product Certifications

6.Product packing
(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery : 1~ 3 weeks

7.Our service
we supply M5 M8 M12 cable connectors and sockets,phoniex Pluggable Terminal Block,heavy duty circular connector,and other many kinds of terminals. If you need cable harness,we also can supply harness processing,just let us now the spec of the cable and the connectors, we will give you a cable harness drawing.
(1) We can reply your inquiry within 24 hours.
(2) Payment terms acceptable: L/C,T/T,Paypal and Western Union
(3) Many Shipping models: By Air, By Sea, Express(DHL, Fedex, TNT,UP,EMS)
(4) Lead(Delivery) time: Normally 15 days after confirming order and payment received.
(5) Port of loading: Shenzhen
(6) Guarantee Period : Within 12 months after shipment.
(7) Operating guide(Instruction)upon request.
(8) Customized drawing ,sample and package can be done according to your requirements
