M8 4pin Male to Female Straight Cable Connector for Sensor and Actuators with CNC Screw

Name: M8 4pin Male to Female Straight Cable Connector for Sensor and Actuators with CNC Screw
Brand: all-electronics-online.com
SKU: 826598825
Availability: InStock
Rating: 4.5 (84 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MB04C3LSG3AB25
Standard:	IEC 61076-2-104
Cable Length:	Base on Customer Request
Shielding:	Non-Shielded

Product Description

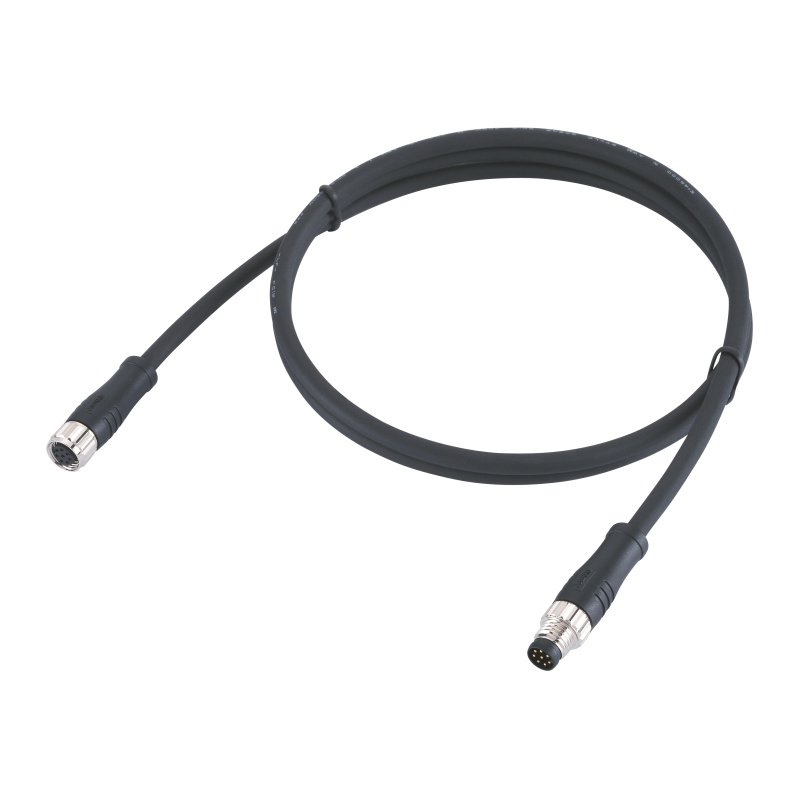

M8 4pin male to female straight cable connector for sensor and actuators with CNC screw

1.Descriptions

The M8 connector is designed for the device connection for sensor/actuator boxes, field-bus modules and industrial controllers. It provides with 3, 4, 5, 6, 8 contacts configuration cable cordsets and panel receptacles, most of the connectors are either factory PUR/PVC cable overmolded or supplied with attached wire leads. 360°EMC shielding is available as option. With 8mm threaded joint, quick and easy mating and locking, even in places difficult to reach, anti vibration locking design.

2,General information

Number of contaccs	4 pin	Coding	A-code
Connection type	Double ended cable	Termination	Soldering
Ambient temperature	-25°C ~ + 80°C	Orientation	Straight
Rated current	3 A	Sealing	O-ring
Rated voltage	60 V	Insert	TPU

3.Applications

(1) Sensor and actuators
(2) Industrial camera
(3) Industrial I/O connections
(4) Material handling
(5) Pharmaceutical manufacturing
(6) Robotic systems; Semiconductors
(7) Packaging, Labeling & Logistic

4.Quality statement

(1) Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
(2) Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
(3) Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
(4) Temperature Range: Dynamic -25 ~ 80ºC, Static: -40 ~ 80ºC/ 90ºC.
(5) Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
(6) Cable bending endurance: ≥3000 times, bending angle ±90°, loading 250g, frequency 40 times per minute, axle radius 12.7mm.
(7) RoHS compliant.

5.Product certificate

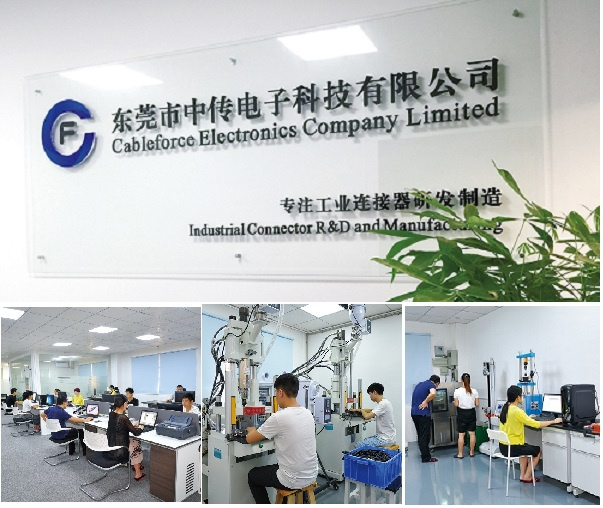

6.Company profile

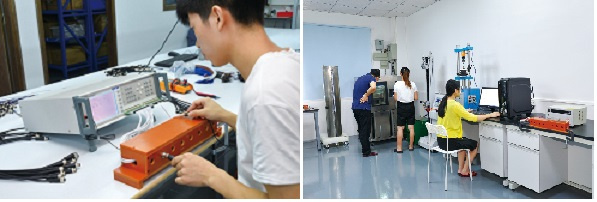

Cableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

7.Packing
(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery : 1~ 3 weeks .

8.Our service
we supply M5 M8 M12 cable connectors and sockets,phoniex Pluggable Terminal Block,heavy duty circular connector,and other many kinds of terminals. If you need cable harness,we also can supply harness processing,just let us now the spec of the cable and the connectors, we will give you a cable harness drawing.
(1) We can reply your inquiry within 24 hours.
(2) Payment terms acceptable L/C, T/T,Paypal and Western Union,MoneyGram
(3) Many Shipping models: By Air, By Sea, Express(DHL, Fedex, TNT,UP,EMS)
(4) Lead(Delivery) time: Normally 15 days after confirming order and payment received.
(5) Port of loading: Shenzhen
(6) Guarantee Period : Within 12 months after shipment.
(7) Operating guide(Instruction)upon request.
(8) Customized drawing ,sample and package can be done according to your requirements

Company Profile

Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

Business

CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.

Products range

Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;

Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;

NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;

I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
