M8 5pin B-Code Male Panel Mount Connector Front Fastened Circular Connector for Sensor with Wires

Name: M8 5pin B-Code Male Panel Mount Connector Front Fastened Circular Connector for Sensor with Wires
Brand: all-electronics-online.com
SKU: 827343665
Availability: InStock
Rating: 4.8 (26 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MB05P1LSG3BB25
Standard:	IEC 61076-2-104
Shielding:	Non-Shielded
Connection Type:	Panel Mount, Front Fastened
Number Of Contacts:	5 Pin

Product Description

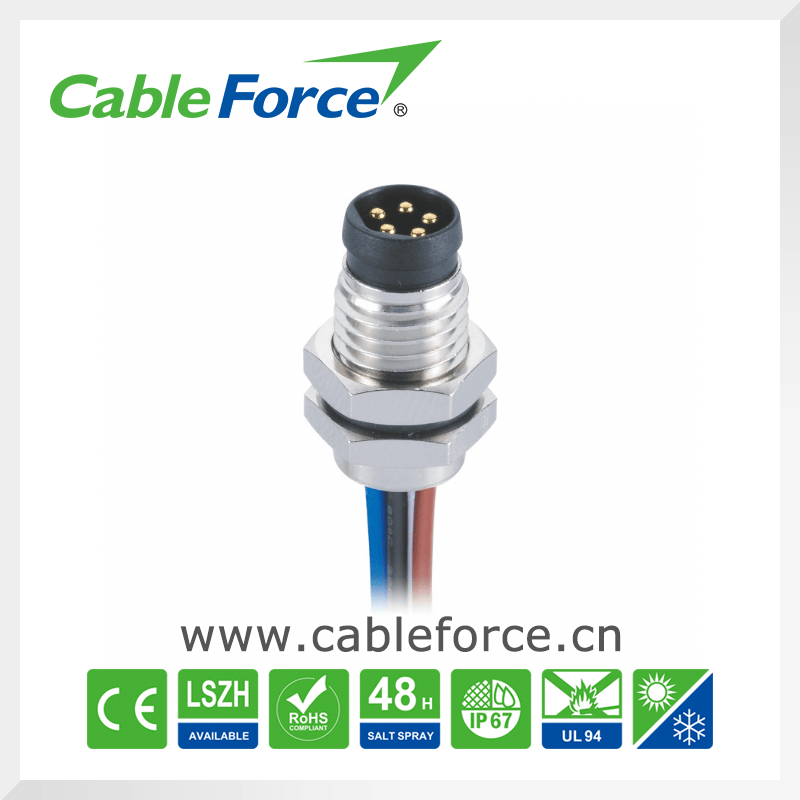

M8 5pin B-code male panel mount connector front fastened circular connector for sensor with wires

1.Product description

The M8 panel receptacles are ideal for compact and space-sensitive industrial applications. CABLEFORCE M8 panel connectors are available with solder termination and PCB panel assembly type, with rear mounting and front mounting.

(1) 3, 4, 5 (B-Coding), 6, 8 poles are available
(2) Operating voltage 60V/ 30V, rated current 3A/1A
(3) Protection degree IP67
(4) Temperature range: -40°C ~ + 105°C

2.Material data

Contacts plating:Gold plated, thickness 3μ"

Wire insulation:PVC

Overmold/ Shell:Metal shell

Connector contacts:Brass with gold plated

Insert/ Housing:NYLON66 + GF

Coupling nut/screw:Brass with nickel plated

Number of contacts	5 pin	Coding	B-Code
Sealing	O-ring	IP rating	IP67
Shielding	Non-Shielded	Orientation	Straight
Wire gauge	24AWG/0.25mm2	Rated current	3 A
Wire Termination	Soldering	Rated voltage	60 V

3.Applications
Sensor and actuators

Industrial camera
Industrial I/O connections
Material handling
Pharmaceutical manufacturing
Robotic systems; Semiconductors
Packaging, Labeling & Logistic

4.Our product Certifications

5.Company profile
Cableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

6.Product packing
(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery : 1~ 3 weeks

7.FAQ
(1) Q:Are you a manufacturer or trading company?
A:We are a connector factory.

(2) Q: What is the necessary information needed for quotation?
A:The series(M5,M8,M12,7/8"), coding, male or female, pin number, cable length etc.

(3) Q:What does Cableforce can provide for the product' certification?
A: IP67, CE and RoHS.

(4) Q:Can you provide samples?
A:Of course can be provided.

(5) Q:Sample lead time?
A:2-4 workdays

(6) Q: Volume order lead time?
A:3-10 workdays

(7) Q: How do you ship the finished product?
A:we can contact the shipping company or your shipping agent.The formal shipping way:DHL,FEDEX,UPS,TNT

Company Profile

Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

Business

CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.

Products range

Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;

Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;

NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;

I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
