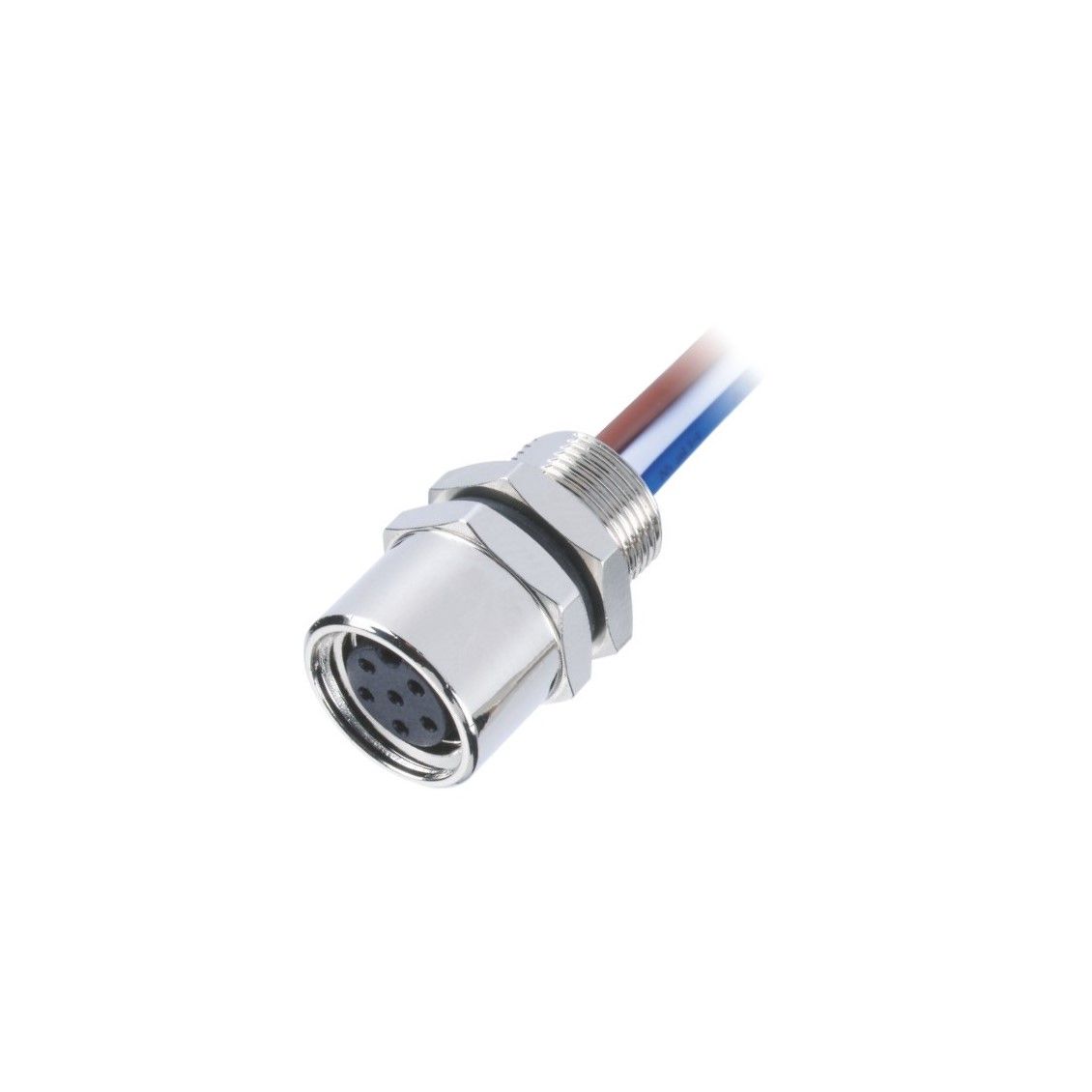

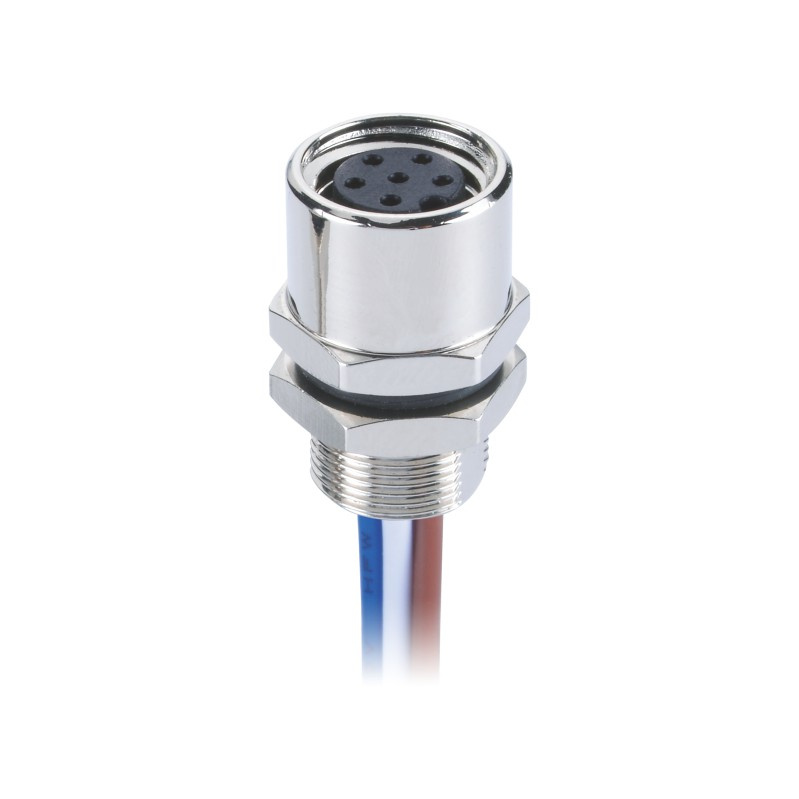

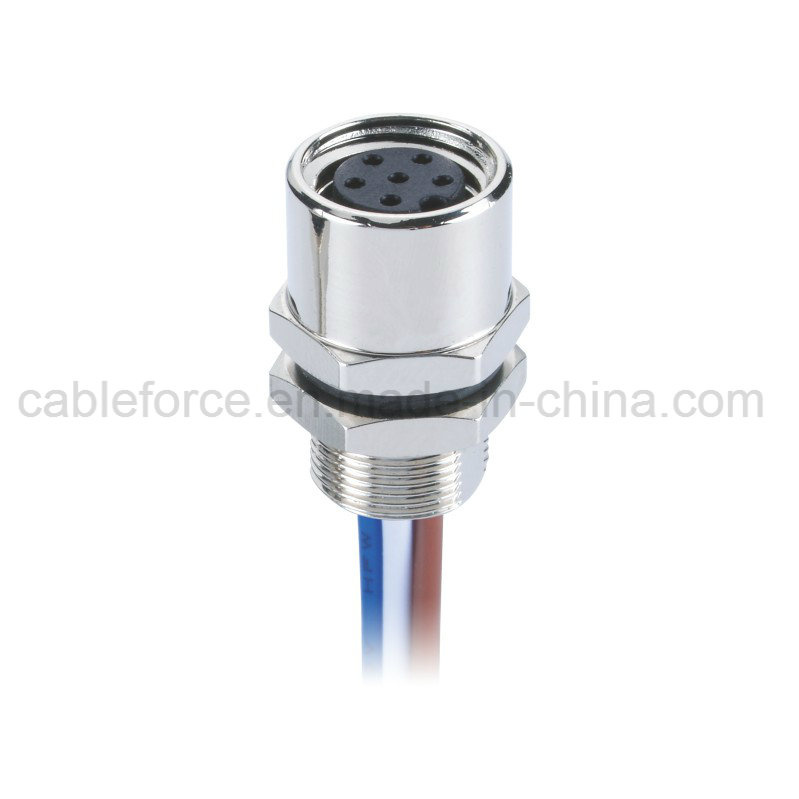

M8 6pin Female Connector Circular Waterproof Connector with Wires for Sensor
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
MB06P4LSG3AB14 |
| Standard: |
IEC 61076-2-104 |
| Shielding: |
Non-Shielded |
| Connection Type: |
Panel Mount, Rear Fastened |
| Number Of Contacts: |
6 Pin |
Product Description
M8 6pin female connector circular waterproof connector with wires for sensor1.Product descriptionThe M8 panel receptacles are ideal for compact and space-sensitive industrial applications. CABLEFORCE M8 panel connectors are available with solder termination and PCB panel assembly type, with rear mounting and front mounting.(1) 3, 4, 5 (B-Coding), 6, 8 poles are available
(2) Operating voltage 60V/ 30V, rated current 3A/1A
(3) Protection degree IP67
(4) Temperature range: -40°C ~ + 105°C
2.Material dataContacts plating:Gold plated, thickness 3μ"Wire insulation:PVCOvermold/ Shell:Metal shellConnector contacts:Brass with gold platedInsert/ Housing:TPUCoupling nut/screw:Brass with nickel plated screw | Number of contacts | 6 pin | | |
| | IP rating | IP67 |
| | | Straight |
| | | 1 A |
| | | 30 V |

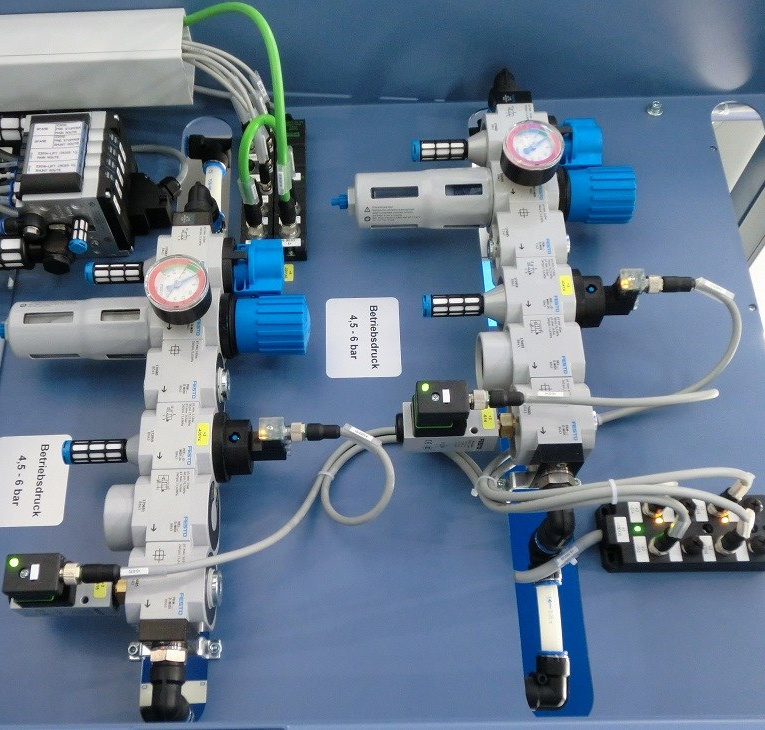

3.ApplicationsSensor and actuatorsIndustrial camera
Industrial I/O connections
Material handling
Pharmaceutical manufacturing
Robotic systems; Semiconductors
Packaging, Labeling & Logistic
4.Our product CertificationsQuality is to cableforce what health is to human beings;the core competence of products shall base on its superior performance andreliable quality.Our commitments on "height quality" come from our team's comprehensive understanding in quality,We have designed strict audit and quality control process to assure ourselves and our suppliers are offering the best practice.CE and ROHS&REACH represent our quality value.
5.Our companyCableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
6.Product packing (1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery : 1~ 3 weeks 7.Our serviceWe supply M5 M8 M12 cable connectors and sockets,phoniex Pluggable Terminal Block,heavy duty circular connector,and other many kinds of terminals. If you need cable harness,we also can supply harness processing,just let us now the spec of the cable and the connectors, we will give you a cable harness drawing.
1.We can reply your inquiry within 24 hours.
2.Payment terms acceptable: T/T,L/C and Western Union
3.Many Shipping models: By Air, By Sea, Express(DHL, Fedex, TNT,UP,EMS)
4.Lead(Delivery) time: Normally 15 days after confirming order and payment received.
5.Port of loading: Shenzhen
6.Guarantee Period : Within 12 months after shipment.
7.Operating guide(Instruction)upon request.
8.Customized drawing ,sample and package can be done according to your requirements
Cableforce listens to every single word from its customers.Welcome to contact us.
Tel:+86 769 8963 3851
Fax:+86 869 8963 3852
Add:Building No.3, XingYe Street, 1st. Industrial Zone, MiaoBianWang Village, Shipai Town,
Dongguan City, Guangdong Province, China (523330)
