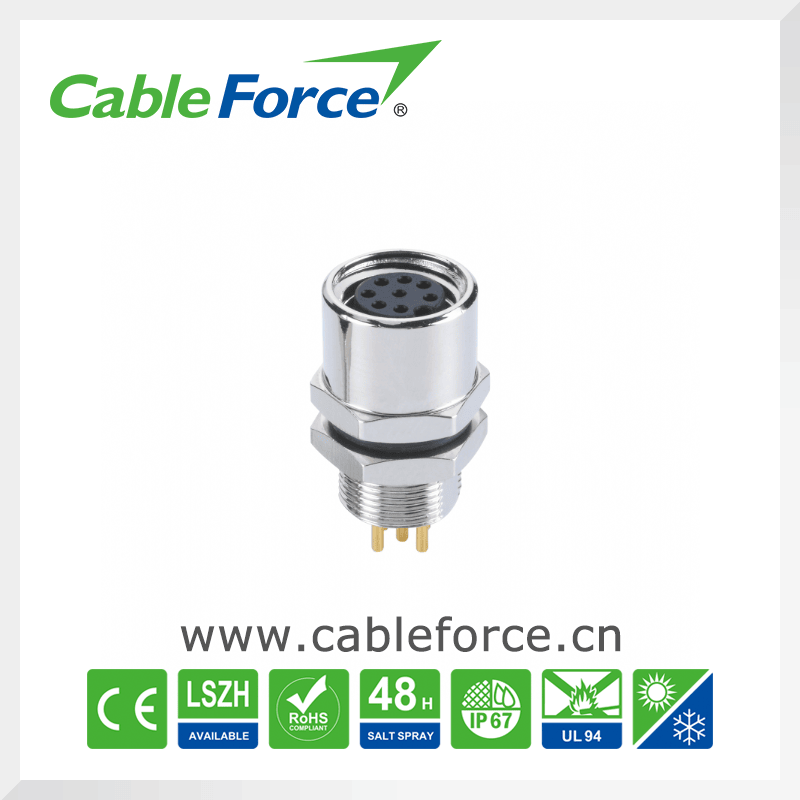

M8 8pin Female Rear Fastened Connector with PCB Contacts for Industrial Automation
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
MB08P4LPG3AB |
| Standard: |
IEC 61076-2-104 |
| Shielding: |
Non-Shielded |
| Connection Type: |
Panel Mount, Rear Fastened |
| Number Of Contacts: |
8 Pin |
Product Description
M8 8pin female rear fastened connector with PCB contacts for industrial automation1.DescriptionThe M8 panel receptacles are ideal for compact and space-sensitive industrial applications. CABLEFORCE M8 panel connectors are available with solder termination and PCB panel assembly type, with rear mounting and front mounting.
(1) 3, 4, 5 (B-Coding), 6, 8 poles are available
(2) Operating voltage 60V/ 30V, rated current 3A/1A(3) Protection degree IP67
(4) Temperature range: -40°C ~ + 105°C
2.Material dataContacts plating:Gold plated, thickness 3μ"Overmold/ Shell:Metal shellConnector contacts:Brass with gold platedInsert/ Housing:NYLON66 + GFCoupling nut/screw:Brass with nickel plated screw | Number of contacts | 8 pin | | |
| O-ring | IP rating | IP67 |
| | | Straight |
| | | 1 A |
| | | 30 V |
3.ApplicationsSensor and actuatorsIndustrial camera
Industrial I/O connections
Material handling
Pharmaceutical manufacturing
Robotic systems; Semiconductors
Packaging, Labeling & Logistic4.Quality statement(1) Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
(2) Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
(3) Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
(4) Temperature Range: Dynamic -25 ~ 80ºC, Static: -40 ~ 80ºC/105ºC.
(5) Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
(6) RoHS compliant.

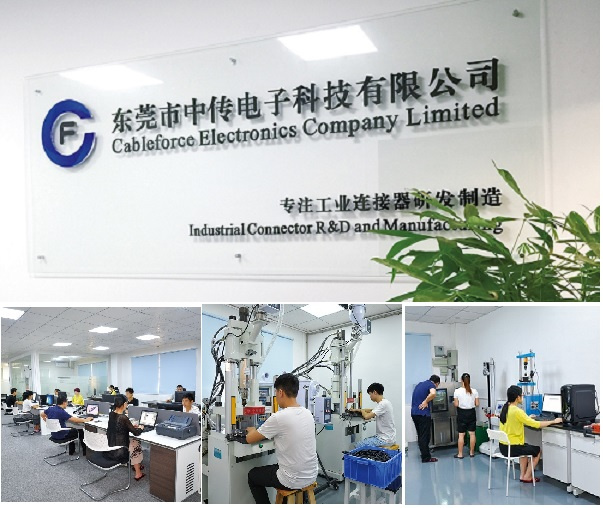

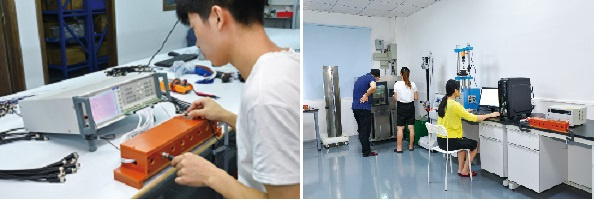

6.Our companyCableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
7.Product packing (1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery : 1~ 3 weeks
8.FAQ(1) Q:Are you a manufacturer or trading company?
A:We are a connector factory.
(2) Q: What is the necessary information needed for quotation?
A:The series(M5,M8,M12,7/8"), coding, male or female, pin number, cable length etc.
(3) Q:What does Cableforce can provide for the product' certification?
A: IP67, CE and RoHS.
(4) Q:Can you provide samples?
A:Of course can be provided.
(5) Q:Sample lead time?
A:2-4 workdays
(6) Q: Volume order lead time?
A:3-10 workdays
(7) Q: How do you ship the finished product?
A:we can contact the shipping company or your shipping agent.The formal shipping way:DHL,FEDEX,UPS,TNT
