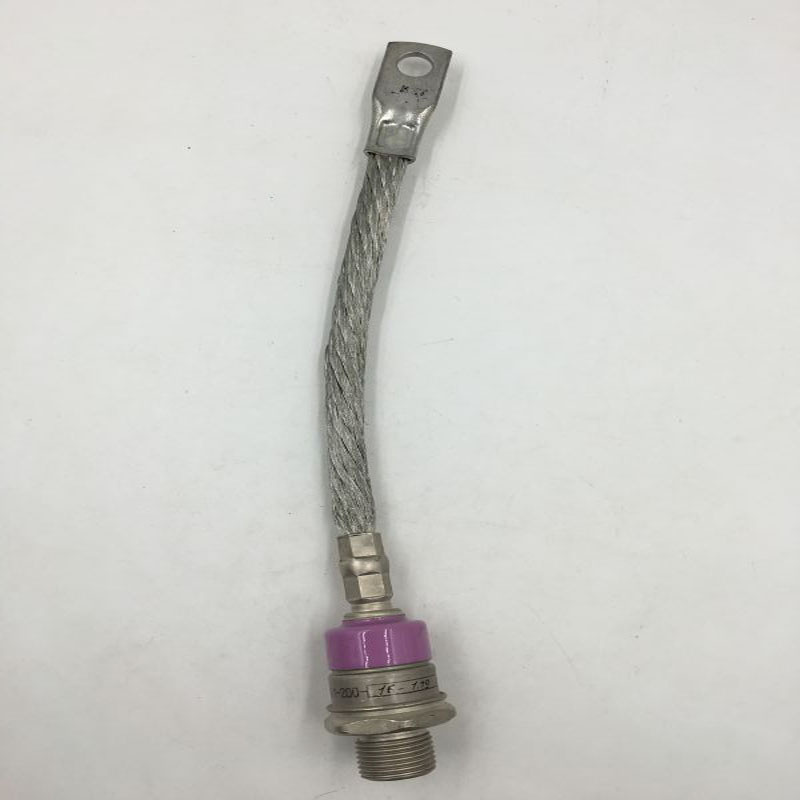

Machine Tool Controls Diode Press Fit

Name: Machine Tool Controls Diode Press Fit
Brand: all-electronics-online.com
SKU: 783840875
Availability: InStock
Rating: 4.8 (133 reviews)

Price:	US $ 0.8-4/Piece
Trade Terms:	FOB
Min Order:	12/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	100U(R)L
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
If(AV):	100
Vrrm:	20-1600V
Vfm:	1.7V
Ifm:	300A
Outline:	Do-8
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	Metal Ceramic Seal
Application:	Battery Charges, Converters, Controls, Welder
Model:	100u(R)L
Batch Number:	2016+
Brand:	Shangjing

Product Description

Features
High surge current capability
Stud cathode and stud anode version
Wide current range
Metric device version available

Typical Applications
Battery charges
Converters
Power supplies
Machine tool controls
Welder
Motor controls

Type	IF(AV)	VFM/IFM		IF(RMS)	VRRM	IRRM	Rjc	Tj	M2	Wt	Outline
	THS55° C	25° C
	A	V	A	A	V	mA	° C/W	° C	kN	kg
6F(R)	6	1.00	18	9.0	200-1200	≤ 6	≤ 2.0	-40 ~ +150	≤ 1.0	0.008	DO-4
12F(R)	12	1.10	36	19.0	200-1200	≤ 6	≤ 1.2		≤ 1.0	0.008
16F(R)	16	1.10	48	25.0	200-1200	≤ 12	≤ 1.2		≤ 1.0	0.008
25F(R)	25	1.10	75	40.0	200-1200	≤ 12	≤ 1.2		≤ 1.0	0.008
30HF(R)	30	1.20	90	48.0	200-1200	≤ 10	≤ 0.8		≤ 2.0	0.020	DO-5
40HF(R)	40	1.20	120	64.0	200-1200	≤ 10	≤ 0.8		≤ 2.0	0.020
50HF(R)	50	1.30	150	80.0	200-1200	≤ 10	≤ 0.8		≤ 2.0	0.020
60HF(R)	60	1.30	180	96.0	200-1200	≤ 12	≤ 0.6		≤ 2.0	0.020
70HF(R)	70	1.35	210	112.0	200-1600	≤ 12	≤ 0.5		≤ 2.0	0.020
85HF(R)	85	1.35	255	136.0	200-1600	≤ 12	≤ 0.4		≤ 2.0	0.020
100U(R)	100	1.70	300	160.0	200-1600	≤ 15	≤ 0.3		≤ 12	0.120	DO-8
150U(R)	150	1.40	450	240.0	200-1600	≤ 15	≤ 0.3		≤ 12	0.120	DO-8
100U(R)L	100	1.70	300	160.0	200-1600	≤ 15	≤ 0.3		≤ 12	0.140	DO-30
150U(R)L	150	1.40	450	240.0	200-1600	≤ 15	≤ 0.3		≤ 12	0.140	DO-30
200U(R)	200	1.20	600	320.0	200-1800	≤ 20	≤ 0.2		≤ 12	0.250	DO-9
250U(R)	250	1.25	750	400.0	200-1800	≤ 20	≤ 0.15		≤ 25	0.250
300U(R)	300	1.25	900	480.0	200-1800	≤ 20	≤ 0.15		≤ 25	0.250
SD400N(R)	400	1.50	1200	640.0	200-2400	≤ 40	≤ 0.07		≤ 25	0.580	B-8
SD500N(R)	500	1.50	1500	800.0	200-2400	≤ 40	≤ 0.065		≤ 25	0.580
SD600N(R)	600	1.40	1800	960.0	200-2400	≤ 40	≤ 0.065		≤ 30	0.580
