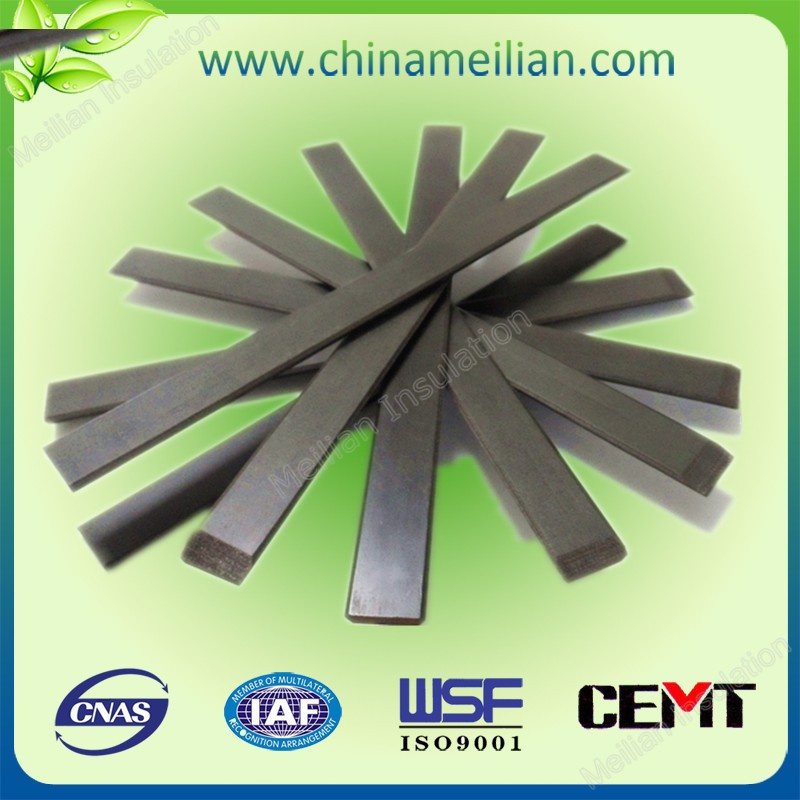

Magnetic Slot Wedge for Generator by Polyimide Tape

Magnetic Slot Wedge for Generator by Polyimide Tape
Price: US $ 13-14KG
Trade Terms: FOB,CFR,CIF
Min Order: 1KG
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: MJ-3332
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: According to Customer Requirement
Application: Generator & Transformer
Type: Insulation Sheet
Chemistry: Inorganic Insulation
Material: Fiberglass
Thermal Rating: B 130
Maximum Voltage: >100KV
Brand: Mj

Product Description

3332Insulation Laminate Fiberglass Slot Wedge:
Appearance:
Natural color Brown, Light Brown, surface smoothly without bubble and impurities, no flow marks, Cutting edge without fault and separation

Feature:
Excellent mechanical & electric property
Good heat & moisture resistance
Easy for processing & machining

Application:
Motors & generators
Traction motors
High-speed motors
Wind turbines Metro reactors

Packaging Detail: Epoxy slot wedge package: Each package is not more than 100KG. Respectively, paper and plastic film cover plate, a paper packaging box, steel strapping / or according to customers' requirements.

Delivery Detail: 7-10 working days


FAQ:
(1) Can you give me a discount price?

Answer: It is depending on the volume. The larger the volume is, the more discount you canenjoy.

(2) Why is your price a bit higher than other Chinese suppliers?

Answer: To meet the requirement of different customers and areas, our factory manufactures various kinds of quality for each item at a wide range of price. We can offer the products of different quality levels depending on customer's target price and quality requirement.

(3) How can I get a sample?

Answer: Normally small samples (sizes not larger than 300*300mm) can be sent free of charge and customers just need to bear a little shipping charge, or you can provide your DHL, FEDEX, EMS, UPS courier account number to us. For bigger sizes, it depends.

(4) How can you guarantee the quality of mass production is same with the sample sent to me before?

Answer: Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.

(5) How can you deal with quality issues that customer feedback after receiving the goods?

Answer:
1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.
3) Finally, we will negotiate with our customers to make some compensation.
Basic information
Product name Magnetic Electrical Insulation Stator Wedge
Item No. With the same item numbers of the laminates which used for processing
Brand MJ
Material Epoxy resin and Alkali free fiberglass cloth with magnetic powder
Grade Grade B - H
Technical Performance
Density ≥3.0g/cm 3
Sheets Thickness 0.1-6mm
Size ≥480x980mm
Formation methods High temperature and high pressure
Thermal stability in 24h ≥200°C
Water absorption ≤1.0%
Impact strength ≥40 KJ/m 2
Tensile strength ≥120 Mpa
Flexural strength                                       at room temperature                               at high temperature  155°C ≥195 MPa                                                                                                               ≥120 MPa
Comparative magnetic permeability 1.6KA/m (200 Oe) ≥7.5
Reference Standard GB/T1303.1-1998

Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.

We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.

Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.

We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".

The spirit of our company is: "Good Reputation, Best Products, Wonderful Services
