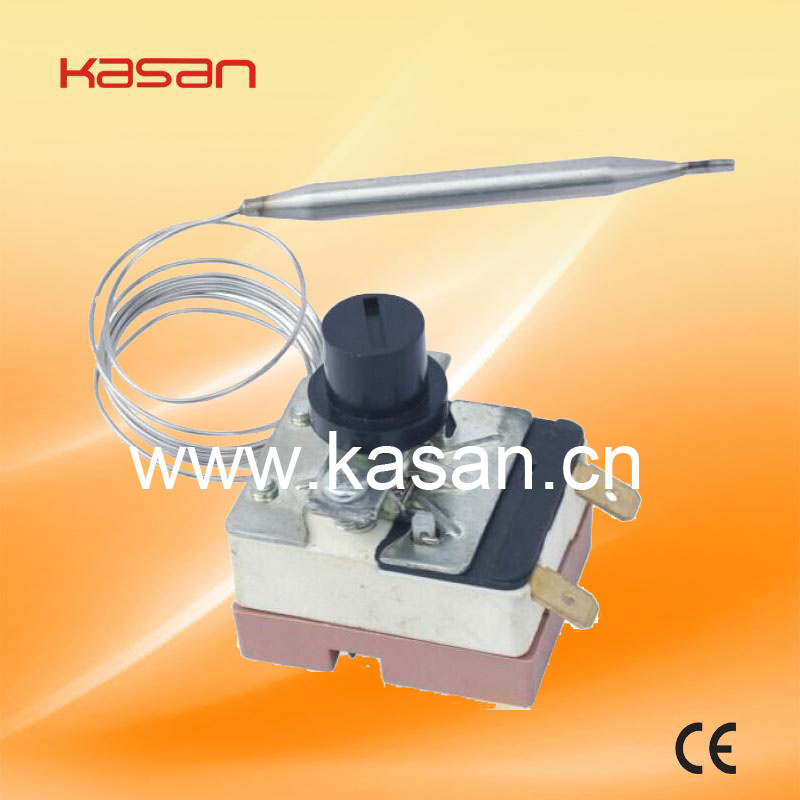

Manual Reset Capillary Thermostat for Oven, Fryer, Wateheater

Name: Manual Reset Capillary Thermostat for Oven, Fryer, Wateheater
Brand: all-electronics-online.com
SKU: 690191942
Availability: InStock
Rating: 4.3 (84 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	whd
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	0-320
Capillary Length:	400-1800mm
Usage:	Household,Household &Indu
Certification:	CE
Control Type:	Mechanical
Type:	Temperature Controller

Product Description

Description of bulb thermostat
Parameter:
1)Designed temperature range: -35°C ~ 350 °C
2)Capillary Length: 300-3000mm
3)On-off temperature difference: 3°C- 10°C
4)Fitting size:28±0.25mm
5)Rated at 16A/250V 50/60Hz
6)Main body temperature: T90 / T150
7)Electric strength: 800v/s between two pin.
8)Insulation resistance≥100MΩ
9)Control type: mechanical temperature controller
10)Contact resistance:≤50MΩ
11)Operating life: ≥ 100,000times
12)Certification: CE and CQC
13)Used for electric water heater, washer, electric oven, fried pan and refrigeration industryetc.
14)Manufactured on customers' request
15)Warmlly welcome to contact us at86-15957748531

Attentions
1, The whole bulb is supported closely aligns controlled temperature surface while thermostat installation, to achieve accurate temperature control purposes.
2, The installation must not be a bulb pressure deformation, so as not to affect its performance.
3, Don't make electricity gas and electricity material in a thermostat or contaminated thermostat surface to avoid affect the electrical insulating performance.
4, Switch box is that the electrical appliances ceramic part to handle gently and avoid damage
5, The bending radius of capillary is not less than 5mm.

MODEL	Temperature Range	Difference	Sensitivity	Capillary length(mm)	Thermometer Bulb Length(mm)
WHD-40 E	0-40°C	≤4.5°C	±5°C	300-3000	(110)
WHD-85 E	30-85°C	≤4.5°C	±5°C	300-3000	(50)
WHD-93 E	30-93°C	≤4.5°C	±5°C	300-3000	(45)
WHD-110 E	30-110°C	≤4.5°C	±5°C	300-3000	(40)
WHD-250 E	50-250°C	≤8°C	±8°C	300-3000	Φ3×170
WHD-320 E	50-320°C	≤10°C	±8°C	300-3000	Φ3×130
