Manufacturer AC / DC 50W 5V SMPS, 12V 48V

Name: Manufacturer AC / DC 50W 5V SMPS, 12V 48V
Brand: all-electronics-online.com
SKU: 839303005
Availability: InStock
Rating: 4.6 (67 reviews)

Price:	US $ 7.8-8.5/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-50
Output Type:	Single
Warranty:	1 Year
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Ann

Product Description

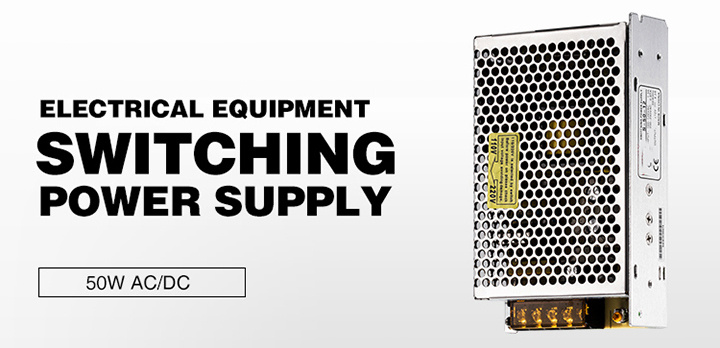

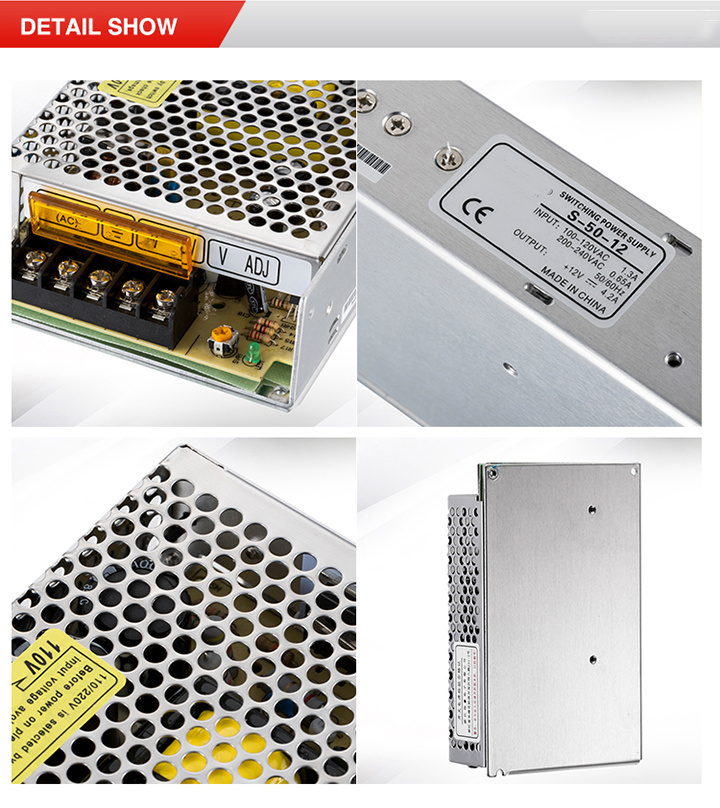

50W 5V DC Switching Power Supply

Features:

1. DC Output 5v 12v 24v

2. AC input range selectable by switch

3. Protections: Short circuit / Overload / Over voltage / Over temperature

4. 100% full load burn-in test

5. Low cost, high reliability

6. 12 months warranty

Specifications:

Model	S-50-5	S-50-12	S-50-15	S-50-24
DC Output voltage	5V	12V	15V	24V
Output voltage range(Note:2)	±2%	±1%	±1%	±1%
Rated output current	10A	4.2A	3.4A	2.1A
Output current range	0~10A	0~4.2A	0~3.4A	0~2.1A
Wave and noise(Note:3)	75mVp-p	60mVp-p	60mVp-p	50mVp-p
Inlet stability(Note:4)	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note:5)	±1%	±0.5%	±0.5%	±0.5%
DC output power	50W	50.4W	51W	50.4W
Efficiency	71%	78%	78%	80%
Adjustable range for DC voltage	+10,-5%	±10%	±10%	±10%
AC input voltage range	85~132VAC/170~264VAC selected by switch 47~63Hz,240~370VDC
Input current	1.3A/115V 0.65A/230V
AC Inrush current	Cold-start current 18A/115V 36A/230V
Leakage current	<0.5mA/240VAC
Overload protection	105%-150% Type: pulsing hiccup shutdown Reset: auto recovery
Temperature coefficient	±0.03%/°C(0~50°C)
Setup, rise, hold up time	200ms, 100ms, 30ms
Vibration	10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes
Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Working temperature and humidity	-10°C~+60°C(Refer to output load derating curve),20%~90%RH
Store temperature and humidity	-20°C~+85°C,10%~95%RH
Overall dimension	159X97X38mm (LWH)
Weight	0.5kgS
Safety standards	Meet UL 1012 requirement(Not apply for the mark)

Our Company is located in " Electric city" -Liushi, China. Ann Electric is one of specialized manufacturers and exporters in low voltage electric & automation products.

Our product range specified as following:

Automation products range including: PLC, HMI, Rotary Encoder, AC Drives, Soft starter, Proximity Switch & Sensor, Counters, Temperature Controller, Stepper Motor & Drivers, Servo Motor & Drives.

Low voltage electrical products range including: Circuit Breaker, Contactors, Fuses, Relays, Push Button& Indicator Lamps, Switches, Power Supply, Distribution Box, Industrial Sockets& Plug, Terminals, Warning light, Electrical Accessories, Electric Power Fitting, Hardware & Tools, Construction Electrical, Lamps & Lighting, Meters & Instruments.

Quality is our life, all our products produce according to the international standard like IEC60898, IEC947-2. Most of our products have got ISO9001, CCC, CE certificates and some of our products have also passed CB, GS, KEMA, UL, VDE certificates. We have won high reputation for its good quality, accurate shipments and reasonable price.

We sincerely welcome customers to cooperate with us on basis of quality and mutual benefit. If you are interested in our 'products, please don't hesitate to contact with us, we will supply quick & satisfied reply.
