Material Fr-1 PCB Single Sided Board Without Solder Mask
| Price: |
US $ 0.39/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1295R1.3 |
| Surface Finish: |
HASL Lead Free |
| Board Thick: |
1.6mm |
| Outer Copper Foil: |
44.17 Um(1 Oz) |
| Warp-Twist: |
0.68% |
| Legend Color: |
Black |
| Min Line Width (Mil): |
8.1 Mil |
| Min Line Spacing (Mil): |
6.3 Mil |
| Solder Mask Color: |
No Required |
| Forming: |
V-Cut |
| Test: |
Electronic Test |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
FR-1 |
| Material: |
Fiberglass Epoxy |
Product Description

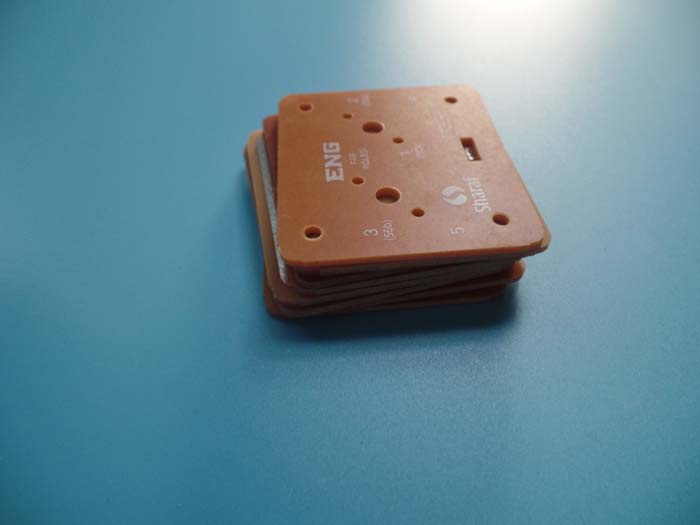

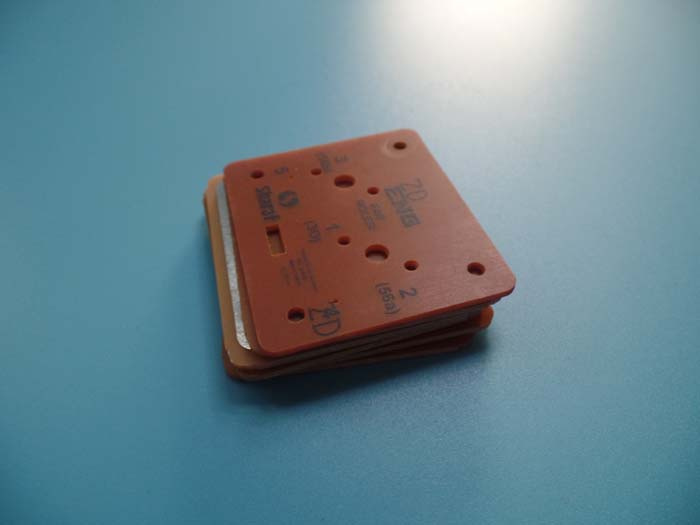

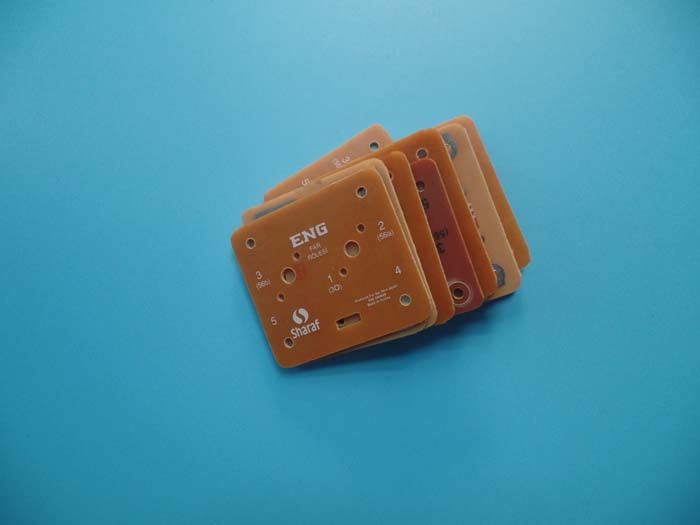

PCB circuit FR-1 Single Sided PCB 1.6mm Thick 1oz Circuit Board
Commodity Introduction
This is a type of FR-4 PCB for the application of CODEC. It's a single sided layer board at 1.61mm
thick. The base laminate is from KB, Solder mask and silkscreen from Kuang Shun. It's fabricated
per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed
separately.
Parameters & Data Sheet| Item | Requirement | Result |
| Laminate | Type | FR-1 | FR-1 |
| Supplier | KB | KB |
| Board thickness | 1.60±10% mm | 1.61-1.65 mm |
| Outer copper foil | >=35 um | 44.17 |
| Inner copper foil | / | / |
| Warp-twist | <= 0.75% | 0.68% |
| Legend | Type | KUANG SHUN | KUANG SHUN |
| Color | Black | Black |
| Location | CS | CS |
| Marking | Co.logo | / | / |
| UL.logo | / | / |
| Date code | / | / |
| Marking form | / | / |
| Location | / | / |
| Min line width (mil) | 7.874 | 8.1 |
| Min line spacing (mil) | 6.5 | 6.3 |
| Min ring width (mil) | NA | NA |
| Solder Mask | Type | / | / |
| Color | / | / |
| Thickness | / | / |
| Pencil Test | / | / |
| SOLVENT TEST | / | / |
| TAPE TEST | / | / |
| Surface Treament | Lead free HASL | OK |
| Special Treament | Silk screen | / | / |
| Location | / | / |
| Forming | V-cut | OK |
| Normal Testing | Electrical test | 100% PCB passed | OK |
| Visual inspection | IPC-A-600H&IPC-6012B | OK |
| Solderability Test | 245ºC 5S 1 Cycle | OK |
Quality Policy
Bicheng has developed series of management procedures and approaches to assure that PCBs
are in compliance with the customers' requirements, inclusive of selection of the vendors, work
in progress (WIP) inspection, outgoing delivery inspection and customer service etc.
Evaluation and Audit of Suppliers
Suppliers have to be evaluated by Bicheng. In addition, Bicheng will appraise and rank suppliers
every year to guarantee the materials supplied are meeting Bicheng's requirements. Furthermore,
Bicheng continuously develop suppliers and supervise them to improve their quality and environm
-ent management basing on the systems of ISO9001 & ISO14001.
Contract Evaluation
Bicheng shall review and verify customer's requirements to make sure that we have the capability
to satisfy customers' requirements including specifications, delivery and other demands prior to
accepting an order.
Making, audit and control of manufacturing data.
When customers' design data and specifications are provided to our market department, Bicheng
has to verify all the requirements. Then, convert the design data into manufacturing data by CAM.
Finally, a manufacturing instruction (MI) is generated according to the real manufacturing process
and technologies for manufacturing department as the basis for actual fabrication. MI must be
reviewed by independent engineers and QA engineers before issue.
Incoming Material Quality Control
All materials have to be inspected before warehousing. We established a series of strict inspection
procedure and instruction to control the incoming materials. Furthermore, various precise
inspecting instruments and apparatus guarantee the capability to judge the material good or not.
We issue material with first in first out principle, and give out "alarm" for the material that will reach
the shelf life to ensure the materials are used up before expiry.
