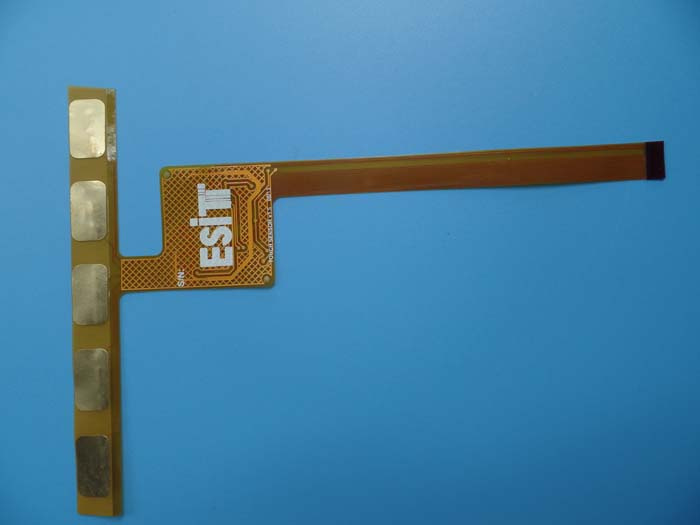

Material Polyimide Flexible PCB 2 Layer 0.15mm Thick FPC Board

Name: Material Polyimide Flexible PCB 2 Layer 0.15mm Thick FPC Board
Brand: all-electronics-online.com
SKU: 823983435
Availability: InStock
Rating: 4.9 (59 reviews)

Price:	US $ 4.01/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-277-V2.77
Board Thickness:	0.15mm +/-10%
Tg Value Of Board Material:	60ºC
Surface Cu Thickness:	35 Um (1 Oz)
Surface Finish:	Immersion Gold
Coverlay Colour:	Yellow
Color Of Silkscreen:	White
Mininum Trace (Mil):	4 Mil
Minimum Gap(Mil):	4 Mil
RoHS Required:	Yes
Function:	100% Pass Electrical Test
Structure:	Double-Sided FPC
Combination Mode:	Adhesive Flexible Plate
Conductive Adhesive:	Conductive Silver Paste
Material:	Polyimide (Pi) 25um
Application:	Analog Device

Product Description

Flexible FPC double sided PCB circuit with Immerision Gold FPC in analog device

Commodity Introduction

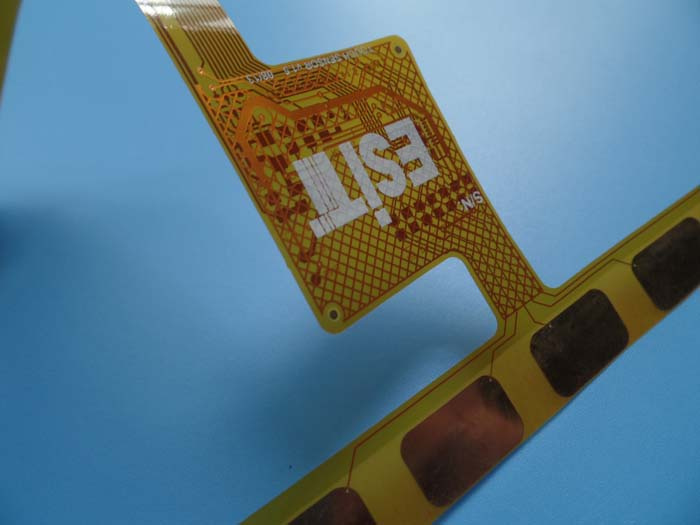

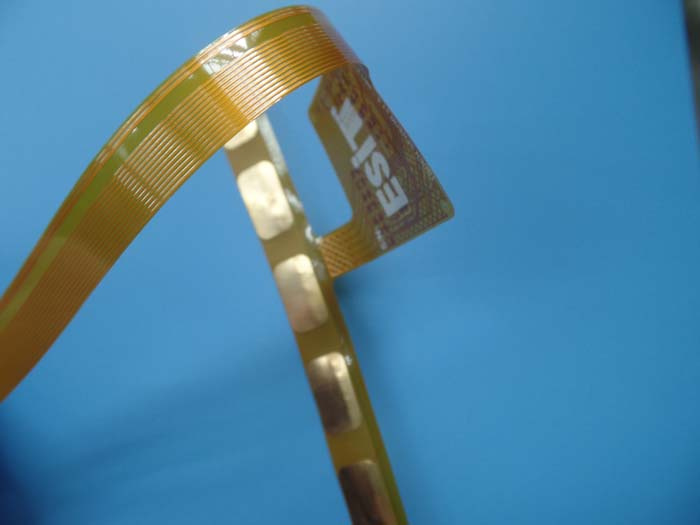

This is a type of flexible printed circuit for the application of analog device. It's a 2 layer board at 0.15mm thick. The base laminate is from ITEQ, It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Immersion gold is applied on the pads. Stiffner is applied on the connector part.

Parameters & Data Sheet

Number of Layers	2
Board Type	Flexbile cirucit
Board Thickness	0.15mm +/-10%
Board Material	Polyimide (PI) 25 um
Board Material Supplier	ITEQ
Tg Value of Board Material	60ºC

PTH Cu thickness	≥20 um
Inner Iayer Cu thicknes	N/A
Surface Cu thickness	35 um (1 oz)

Coverlay Colour	Yellow
Number of Coverlay	2
Thickness of Coverlay	25 um
Stiffener	200 um

Type of Silkscreen Ink	IJR-4000 MW300
Supplier of Silkscreen	TAIYO
Color of Silkscreen	White
Number of Silkscreen	2

Mininum Trace (mil)	4 mil
Minimum Gap(mil)	4 mil

Surface Finish	Immersion Gold
RoHS Required	Yes
Famability	94-V0

Thermal Shock Test	Pass, -25ºC±125ºC, 1000 cycles.
Thermal Stress	Pass, 300±5ºC,10 seconds,3 cycles. No delamination, no blistering.
Function	100% Pass electrical test
Workmanship	Compliance with IPC-A-600H & IPC-6013C Class 2

Microsection Hole Wall (um)

Hole Wall Cu Thickness			≥20 um	Hole Wall Cu Roughness			≤25.4 um
NO.	A	B	C	D	E	F	AVE
1	22.310	22.150	22.320	22.150	22.350	22.150	22.238

Outline dimension Unit: mm

NO.	Required Dimension (toerance)		Actual dimension
1	110.00	±0.13	110.12	110.01	110.09	110.08
2	145.00	±0.13	145.01	145.15	145.12	145.02

Hole Size and Slot Dimension (mm)

NO.	Requerment Dimension (tolerance)		PTH/NPT	Actual dimension
1	0.300	±0.075	Y	via	via	via	via
2	0.400	±0.075	Y	via	via	via	via
3	0.610	±0.075	Y	via	via	via	via

Learn PCB and Buy PCB
Bare board test (BBT)

Multiple quality assuring procedures are performed before shipment. It includes:
Visual inspection
Flying probe
Impedance control
Solderability detection
AOI (automated optical inspection)
High voltage test
Micro section
Thermal stress test
Reliability test
Insulation resistance test
Ionic contamination test

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
