Material Polyimide FPC PCB Single Sided Board with Yellow Soldermask

Name: Material Polyimide FPC PCB Single Sided Board with Yellow Soldermask
Brand: all-electronics-online.com
SKU: 823733895
Availability: InStock
Rating: 5 (30 reviews)

Price:	US $ 0.56/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-395-V3.95
Board Thickness:	0.1mm
Surface Finish:	Immersion Gold
Surface Cu Thickness:	1 Oz
Coverlay Colour:	Yellow
Silkscreen Color:	White
Function:	100% Pass Electrical Test
RoHS Required:	Yes
Workmanship:	Ipc-a-600h and Ipc-6013c Class 2
Tg Value Material:	60ºC
Thermal Stress:	No Delamination No Blistering
Structure:	Single-Sided FPC
Combination Mode:	Adhesive Flexible Plate
Conductive Adhesive:	Conductive Silver Paste
Material:	Polyimide (Pi) 25um
Application:	Antenna

Product Description

Material Polyimide FPC PCB single sided board 0.1mm thick with Yellow soldermask
for Antenna

Commodity Introduction

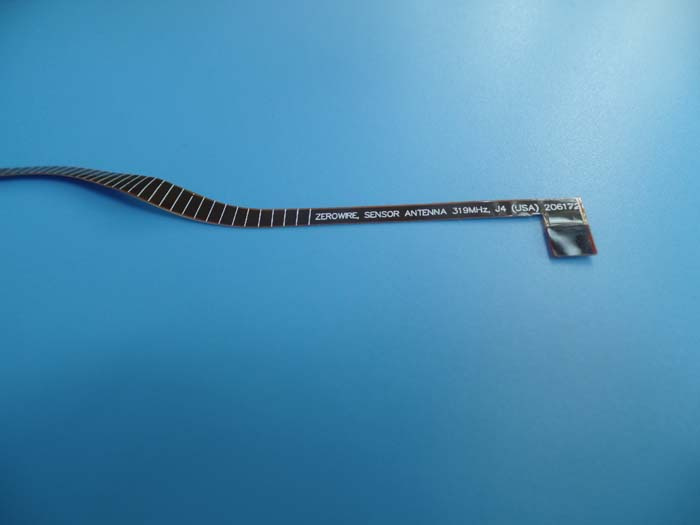

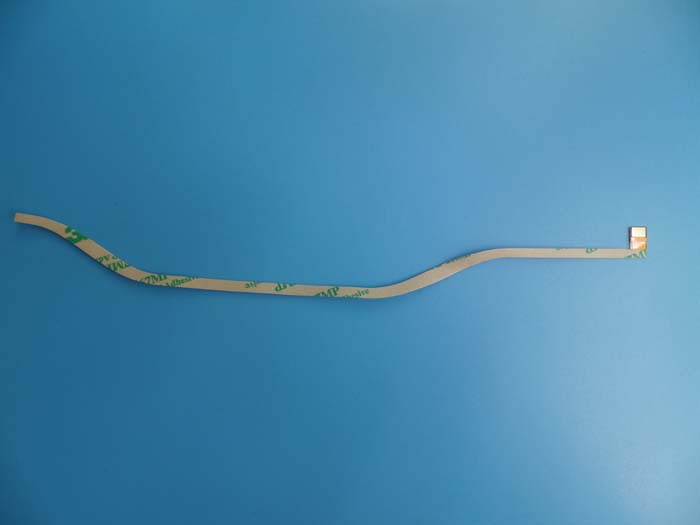

This is a type of Flexible PCB for the application of Antenna. It's a single sided board at 0.1mm
thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated
per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed
separately.

Parameters & Data Sheet

Number of Layers	1
Board Type	Flexbile cirucit
Board Thickness	0.1mm +/-10%
Board Material	Polyimide (PI) 25 um
Board Material Supplier	ITEQ
Tg Value of Board Material	60ºC

PTH Cu thickness	N/A
Inner Iayer Cu thicknes	N/A
Surface Cu thickness	35 um (1 oz)

Coverlay Colour	Yellow
Number of Coverlay	1
Thickness of Coverlay	25 um

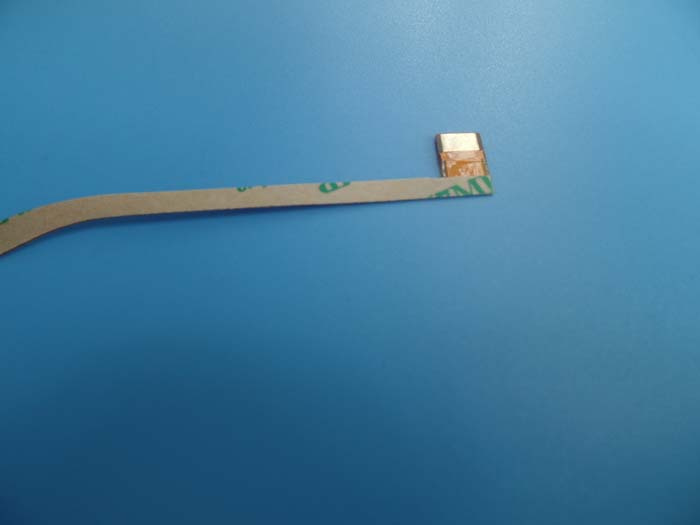

Stiffener	200 um
3M Tape	Yes

Type of Silkscreen Ink	IJR-4000 MW300
Supplier of Silkscreen	TAIYO
Color of Silkscreen	White
Number of Silkscreen	2

Mininum Trace (mil)	N/A
Minimum Gap(mil)	N/A

Surface Finish	Immersion Gold
RoHS Required	Yes
Famability	94-V0

Thermal Shock Test	Pass, -25ºC±125ºC, 1000 cycles.
Thermal Stress	Pass, 300±5ºC,10 seconds, 3 cycles. No delamination, no blistering.
Function	100% Pass electrical test
Workmanship	Compliance with IPC-A-600H & IPC-6013C Class 2

Outline dimension Unit: mm

NO.	Required Dimension (toerance)		Actual dimension
1	165.00	±0.13	165.01	165.02	165.03	165.01
2	15.00	±0.13	14.99	15.01	15.02	15.01

Learn and buy PCB
PCB fabrication process
1). Etching
Purpose: Etching is to etch off the non-circuit parts of the copper layer by chemical reaction method

2). Solder Mask
Purpose: Solder mask is transferring the solder mask film graphics to the board to protect the track
and prevent the track from the effect of tin welding during assembly.

3). Silkscreen
Purpose: The silkscreen character is a mark that is easy to recognize.

4). Edge connector plating (Gold finger)
Purpose: A nickel gold layer with a thickness is plated on the PCB edge of the plug to make it
more resistant to wear.

HASL (a process of coordinate)
HASL is a layer of tin generated on the non-solder mask area to protect pad copper surface from
oxidation to ensure good welding performance.

5). Contour
Purpose: By stamping or milling machine to cut the PCB into customers' required shape.

6). Electrical test
Purpose: Through the electronic 100% test to find the open circuit, short circuit and other
functional defects which are not easy to find by visual inspection.

7). Final Inspection
Purpose: Through 100% visual inspection to find out the defects in appearance and repair minor
defects to avoid problems and defects in the shipment.
