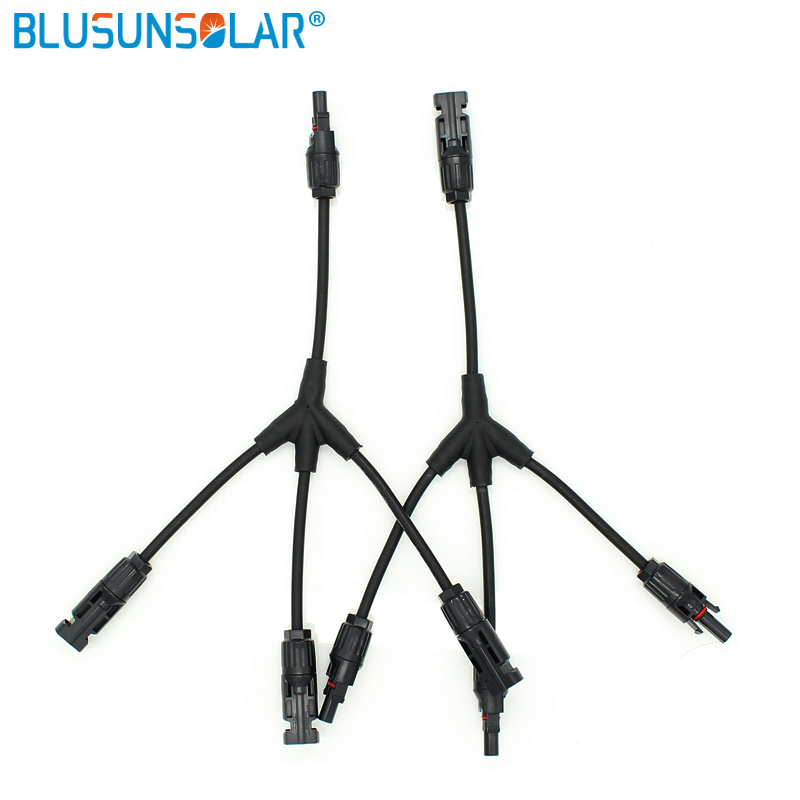

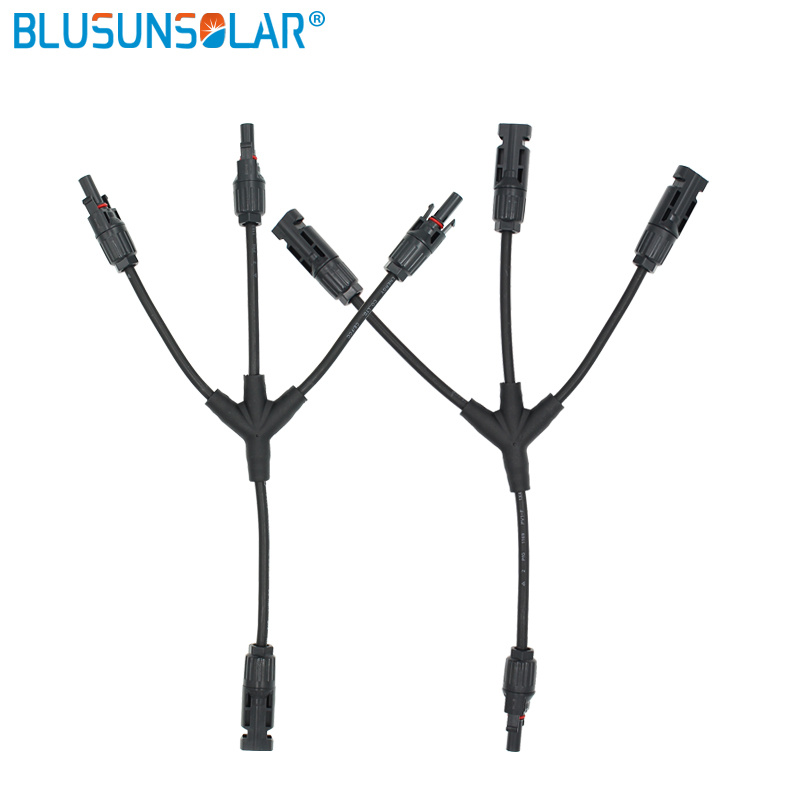

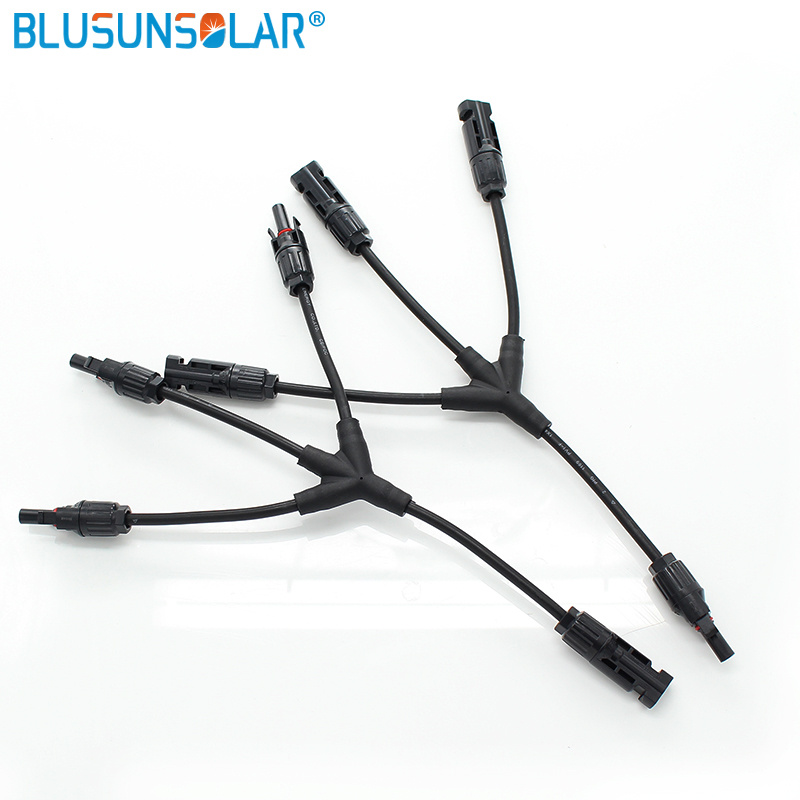

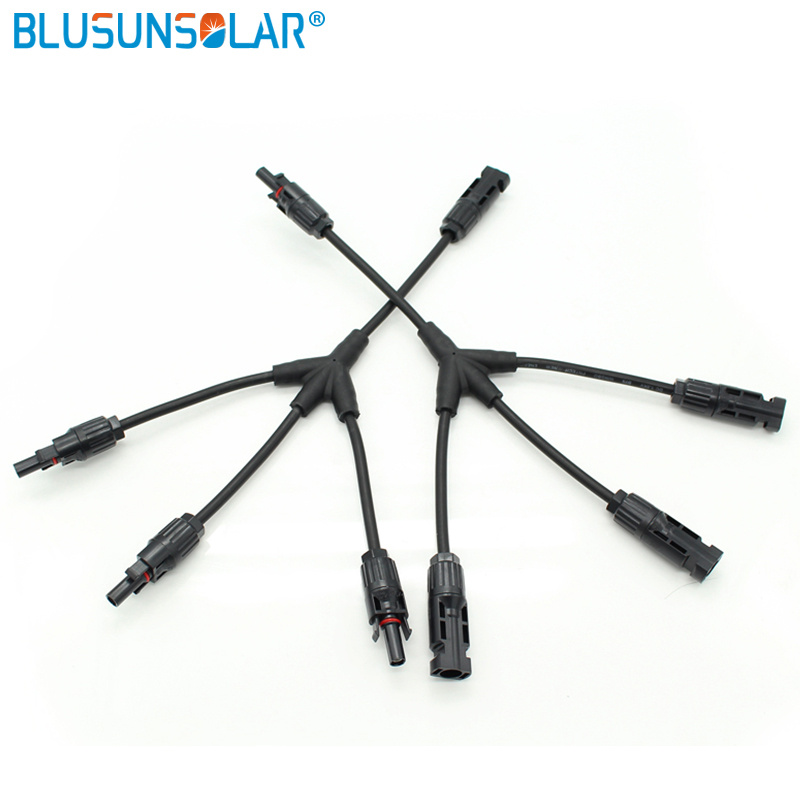

Mc4 3 to 1 Y Connectors Solar PV Branch Connector

Prod Model:	007
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Insulation Material:	PPO
Rated Voltage:	TUV 1000 DC/ UL 600V DC
Test Voltage:	6kv(50Hz, 1min)
Contact Material:	Copper Tin Plated
Contact Resistance:	Less Than 0.5 M Ohm
Degree Of Protection:	IP67
Pollution Degree:	2
Protection Class:	Class II
Pin Dimention:	4.0mm
Flame Calss:	UL94-V0
Type:	Socket Terminals
Material:	Copper
Application:	Solar Power System
Certification:	TUV,CE,RoHS
Brand:	Leader

Product Description

Technical data:

1.Can be used in  harsh environment;
2.Can be used for connecting solar panels and installed in large roof or ground;
3.Shell has  excellent aging resistance and UV endurance;
4.Adopting tight-hoop connection design, they are fit for different diameters of cables;
5.High current carrying capacity;
6.They can prevent short circuits and ground leakage;
7.They are easy to lock and unlock;
8.100% Brand new and high quality.

Characteristics:

Insulation material:	PPO
Rated Voltage	TUV 1000 DC/ UL 600V DC
Test voltage	6KV(50Hz,1Min)
Contact material	copper, tin plated
Contact resistance	less than 0.5 m ohm
Degree of protection	IP67
Pollution Degree	2
Protection class	Class II
Flame calss	UL94-V0
Plug Force	less than 50N
Withdrawal force	more than 50N
Ambient temperature range	-40  ~ +  90.
Compatible cable cross sections  Solar cable	4.0 mm²
Pin dimention	4.0mm









Our service:

We will give you a best service.
1) Reply inquiry in 24 hours.
2) Answer your questiong detailed.
3) Freight forwarder: faster, safer,and convenient.
4) Please kindly inform us which items you are interested & the reasonable price will be provided you upon.


FAQ:

Q: Is sample available and free?
A: Sample is avaible, but the sample cost should be pay by you.
The cost of sample will be refund after further order.
Q:Do you accept customized order?
A:Yes, we do.
Q: What's the delievery time?
A: It usually takes 4-27 days after confirming payment, but specific time should be based on the order quantity.
