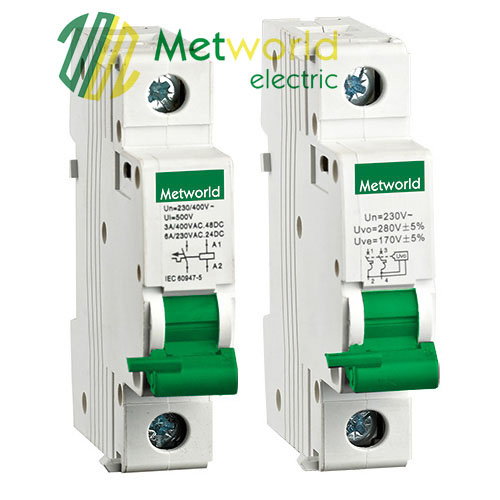

MCB Accessories Mn Over-Voltage/Under-Voltage Trip (STBA-MX MN)

Prod Model:	STBA-MX MN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Insulating Voltage(Ui):	500V
Pole:	1
Series:	Stba
Rated Voltage:	125,230,400V
Rated Insulating Voltage:	500V
Color:	White and Green
Brand:	Metworld
Standards:	CE
Category Of Current:	AC or a
Dimension:	Customized
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	SF6
Installation:	Fixed
Structure:	MCB
Poles Number:	1
Certification:	CCC

Product Description

MODEL	Rated insulating voltage(Ui)	rated voltage
STBA-MX ,MN	500V	125,230,400

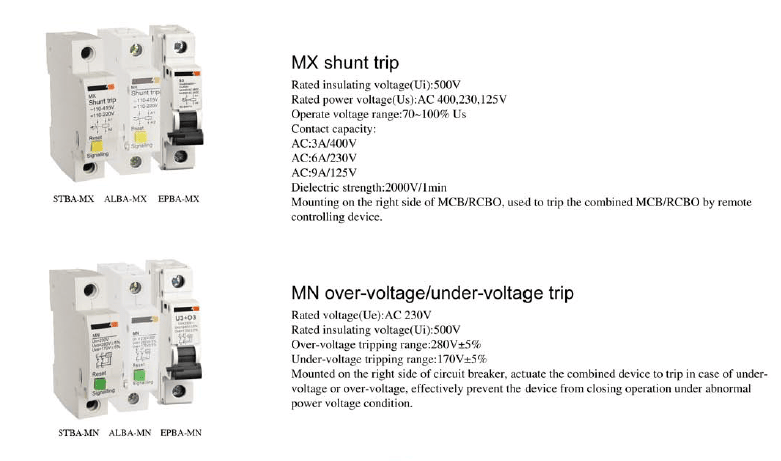

MX Shunt trip Rated insulating voltage(Ui): 500VRated power voltage(Us): AC 400, 230, 125VOperate voltage range: 70~100% UsContact capacity: AC: 3A/400V AC: 6A/230VAC: 9A/125V Dielectric strength: 2000V/1minMounting on the right side of MCB/RCBO, used to trip the combined MCB/RCBO by remotecontrolling device.

MN Over-voltage/undervoltage trip Rated voltage(Ue): AC 230VRated insulating voltage(Ui): 500VOver-voltage tripping range: 280V± 5%Under-voltage tripping range: 170V± 5%Mounted on the right side of circuit breaker, actuate the combined device to trip in case of undervoltageor over-voltage, effectively prevent the device from closing operation under abnormalpower voltage condition
