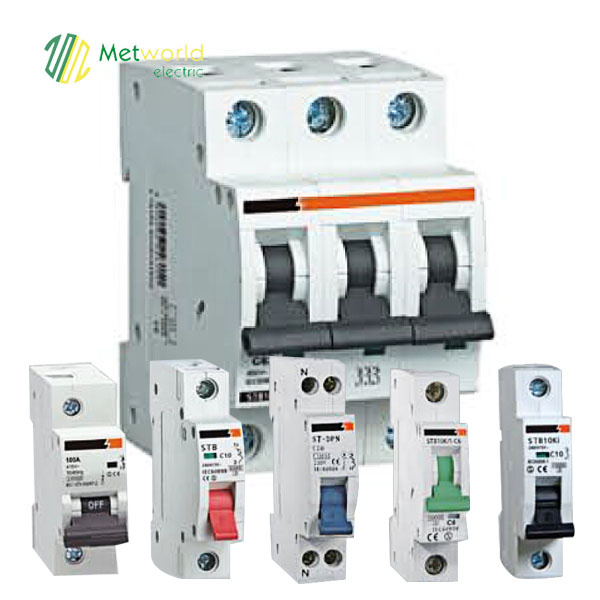

MCB Dpn Mini Circuit Breaker CE Kema Miniature Circuit Breaker

Prod Model:	CE Miniature Circuit Breaker / MCB STB DPN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	Light
Performance:	Reliable and Excellent
Customized:	Yes
Model No:	Miniature Circuit Breaker STB Dpn
Prodcut Standard:	Confirming to IEC/En60898
Ambient Temperature:	-5 to +40 Degree Centigrade
Type Of Terminal:	Lug Type and Pin Type
Degree Of Protection:	IP20
Width:	17.8mm Per Pole
Type Of Trip:	Thermal/Magnetic Release
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Energy-storage Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	3
Certification:	CB

Product Description

STB3-63 series circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short-circuit in the system.
The product novel in structure, light in weight, reliable and excellent in performance.
It has high breaking capacity, can trip quickly and its installation uses with guide, its case and items are adopted with high fire-resistant and shockproof plastic. The product, with long life, is mainly used in AC 50/60Hz single-pole 240V or two, three, four-pole 415V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. This product conform with GB10963, IEC60898.

Model	STB DPN
Standard	EN/IEC60898
Tripping curves	B/C/D
Un(V)	230/400VAC
Number of poles	1P,1P+N,2P,3P,3P+N,4P
Rated current In	0.5,1,2,3,4,6,10,16,20,25,32,40,50,63A
Breaking capacity Icn	4500A/6000A/10000A

Shipping:

1,Shipping can delivery by sea,air,or express according to customer requirement
Payment:
1. Small order under 3000USD T/T100% in advance
2. 30% deposit and 70% before shipping or after received copy of B/L
3. L/C also acceptable
Warranty:
We provide 1 year warranty.
