MCB Miniature Circuit Brekaer (YCB2-63)

Name: MCB Miniature Circuit Brekaer (YCB2-63)
Brand: all-electronics-online.com
SKU: 737476555
Availability: InStock
Rating: 4.8 (126 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1Box
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YCB2-63
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage (V):	240/415
Rated Current (a):	1,2,3,4,6,10,13,16,20,25,32,40,50,63
Rated Frequency(Hz):	50/60
Dielectric Test Voltage(Kv):	2.0
Rated Impulse Withstand Voltage(V):	6000
Rated Breaking Capacity(a):	4500/6000
Insulation Voltage(V):	500
Protection Degree:	IP20
Curve:	B,C,D
Mechanical Life:	20000
Arc-extinguishing Medium:	Air
Structure:	MCB
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	CCC
Operation:	Electric Type
Installation:	Insert
Speed:	Normal Type Circuit Breaker
Poles Number:	1p-4p

Product Description

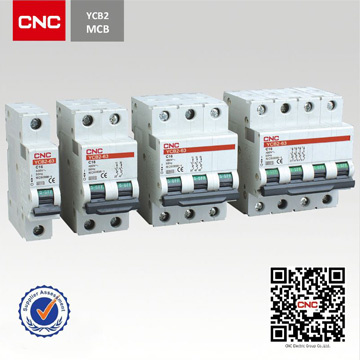

MCB Miniature Circuit Brekaer (YCB2-63)

About CNC

1. China Top 500 Enterprise
2.26 years rich experience in manufacturing electrical products
3. Sales in over 100 countries

Specifications

1. Mini circuit breaker (MCB)
2. Rated current In: 3, 6, 10, 16, 20, 25, 32A
3. Application: For protecting equipments against overload and short circuit
4. General rules for choosing MCB:
5. Technical data of the network at the point considered;
6. C curve characteristics for YCB3 magnetic operation.

WHY US?

1. We Are Suppler of Three Gorges Project, China National Petroleum, Sinopec Group;

2. China Famous Export Enterprise, Our Products Sale in Over 100 Countries;

3. Our Laboratory is China Key Industrial Electrical Laboratory;

4. We have completely sales service system, ensure every detail is going smooth.

5. We have new designed products each year by our R&D Dpartment.

6. Perfect testing system ensure each product is qualified.

7. Want know more of us? Waiting for your inquiry.

Electrical features	Rated current In	A	1,2,3,4,6,10,13,16,20,25,32,40,50,63
	Poles	P	1, 2, 3, 4
	Rated voltage Ue	V	240/415
	Insulation voltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity	A	4500/6000
	Rated impulse withstand voltage(1.2/50) Uimp	V	6000
	Dielectric test voltage at ind. Freq. for 1min	kV	2.0
	Pollution degree		2
	Thermo-magnetic release characteristic		B, C, D
Mechanical features	Electrical life	t	8000
	Mechanical life	t	20000
	Protection degree		IP20
	Reference temperature for setting of thermal element	°C	-5~+40(Special application please refer to temperature compensation correction)
	Ambient temperature (with daily average ≤35°C)	°C	30
	Contact position indicator		Yes
	Storage temperature	°C	-5~+40
Installation	Terminal connection type		Cable/Pin-type busbar
	Terminal size top / bottom for cable	mm²	25
	Terminal size top / bottom for cable	AWG	18-3
	Terminal size top / bottom for busbar	mm²	25
	Terminal size top / bottom for busbar	AWG	18-3
	Tightening torque	N*m	3.5
	Tightening torque	In-Ibs	31
	Mounting		On DIN rail EN60715(35mm)by means of fast clip device
	Connection		From top

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
