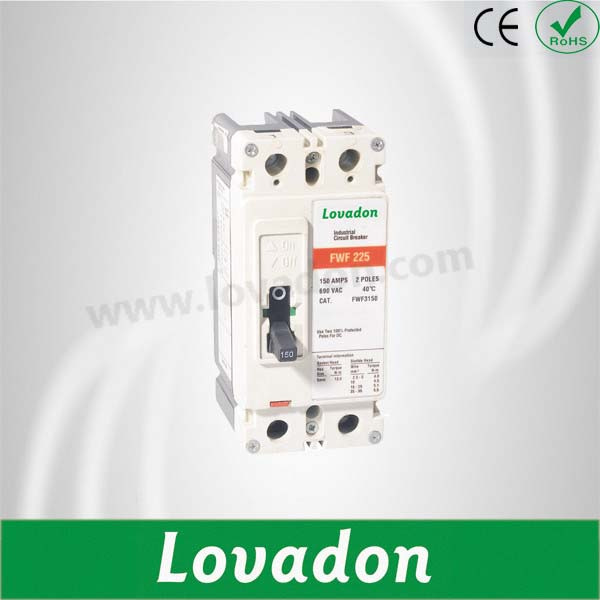

MCCB Fwf Moulded Case Circuit Breaker

Name: MCCB Fwf Moulded Case Circuit Breaker
Brand: all-electronics-online.com
SKU: 684093402
Availability: InStock
Rating: 4.7 (137 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FWF 225 2P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	Lovadon OEM
Electric Current:	100A-1600A
Material Of Plastic Body:	PC
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Certification:	CE
Poles Number:	1p, 2p, 3p, 4p

Product Description

1.Item name: moulded case circuit breaker FWF 225 2P

2.Standard:IEC60947-2

3.Function:overcurrent protection

4.Rated current: 16A to 225A

5.Frequency: 50/60Hz

GWF FWF
Frame Current (A)			100		160	225			225			250
Model			GWF		FWF	FW	HFW	FWC	FWF	HFWF	FWCF	JW	HJW	JWC
Breaking Capacity (KA ms)			AC-50/60Hz
	220-240 VAC	Icu	18	65	40	85	100	200	85	100	200	85	100	200
	220-240 VAC	Ics	9	33	40	85	100	150	85	100	150	85	100	150
	380-415 VAC	Icu	-	25	-	40	70	100	40	70	100	40	70	100
IEC60947-2	380-415 VAC	Ics	-	13	-	40	70	75	40	70	75	40	70	75
	660-690 VAC	Icu	-	-	-	12	14	18	12	14	18	14	18	22
	660-690 VAC	Ics	-	-	-	6	7	9	6	7	9	7	9	11
	250 VDC	Icu	-	10	-	10	20	20	10	20	20	10	20	20
	250 VDC	Ics	-	5	-	5	10	10	5	10	10	5	10	10
	240VAC		18	65	-	65	100	200	65	100	200	65	100	200
NEMA	480VAC		-	22	25	25	65	100	25	65	100	35	65	100
	600VAC		-	-	-	18	25	35	18	25	35	18	25	35
Number of poles	1			2.3	1	2,3,4						2,3,4
Rated Current	16-100A					16-225A						125-250A
Trip unit	Interchange able type												yes
Trip unit	Fixed thermal type	yes
Thermal magnetic	Fixed thermal type	yes							yes
	adjustale type		Fixed
	Magnetic type		Fixed			fixed	adjustable		fixed			adjustable
Rms Solid	LS		-					-
	LS1		-					-
	LSG		-					-
	LS1G		-					-
Dimensions(mm)		H	W	D	H		W		D			H	W	D
	1P	123.8	254.4	66.7	152.4		35		686
	2P	123.8	50.8	66.7	152.4		70		86
	3P	123.8	76.2	66.7	152.4		105		86			177.8	105	103
	4P				152.4		140		86			177.8	140	103
Weight(KG)					1P 0.7,2P 1.8,3P 2.4,4P 3.1							2P 5.2,3P 5.2,4P 7.0

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

Yueqing Lovadon Electric Co., Ltd wsa founded in 2012, located in Liushi Chandong Industrial Zone where is near the national scenery area-Yandang Mountain. Our company covers an area of 500m² And has around 30 staff members. It has advanced automation equipment and testing equipment, with a number of high-education management team and staffs. The company speciallized in manufacturing low voltage and high voltage electrical product such as Circuit Breaker, Contactors, Distrubition Boxes, Automation products, Switches, Power source, Lightning arrester, Composite suspension insulator, and so on. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.
