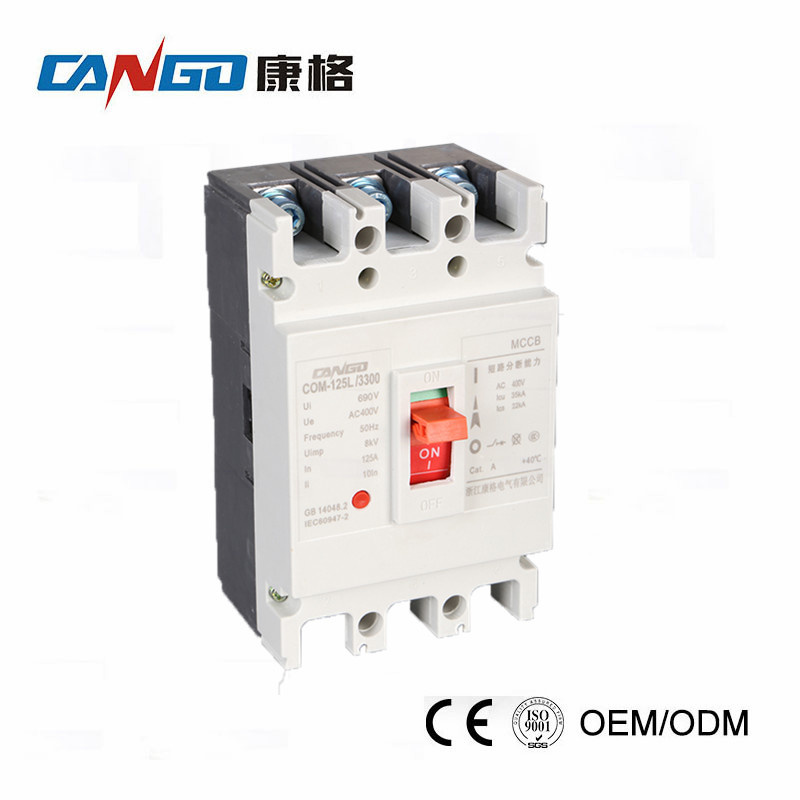

MCCB Moulded Case Circuit Breaker COM-125 Series

Name: MCCB Moulded Case Circuit Breaker COM-125 Series
Brand: all-electronics-online.com
SKU: 733992522
Availability: InStock
Rating: 4.9 (50 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	COM-125 Series
Poles:	2p 3p 4p
Frequency:	50/60Hz
Rated Current In(a):	10,16,20,25,32,40,50,63,80,100,125
Rated Insulated Voltage Ui(V):	800
Rated Working Voltage Ue(V):	400/690
Rated Impulse Withstand Voltage Uimp(V):	8000
Over Current Trip:	Electromagnetic Type /Thermal Magnetic Type
Flash Over Distance:	Less Than 50mm
Frame Rated Current:	6
Mechanical Life(Times):	20000
Type:	Temperature Fuse
Usaga:	Low Voltage
Breaking Capacity:	10ka
Standard:	IEC

Product Description

COM-125 MCCB
1. Rated Insulation Voltage: 800V
2. High Breaking Capacity, upto 100kA
3. Reasonable design, small size, reliable, beautigul appearance
4. Full range accessory, easy to install and use

Poles	2P 3P 4P
Frequency	50/60Hz
Rated Current in(a)	10,16,20,25,32,40,50,63,80,100,125
Rated Insulated Voltage Ui(V)	800
Rated Working Voltage Ue(V)	400/690
Rated Impulse Withstand Voltage Uimp(V)	8000
over current trip:	Electromagnetic Type /Thermal Magnetic Type

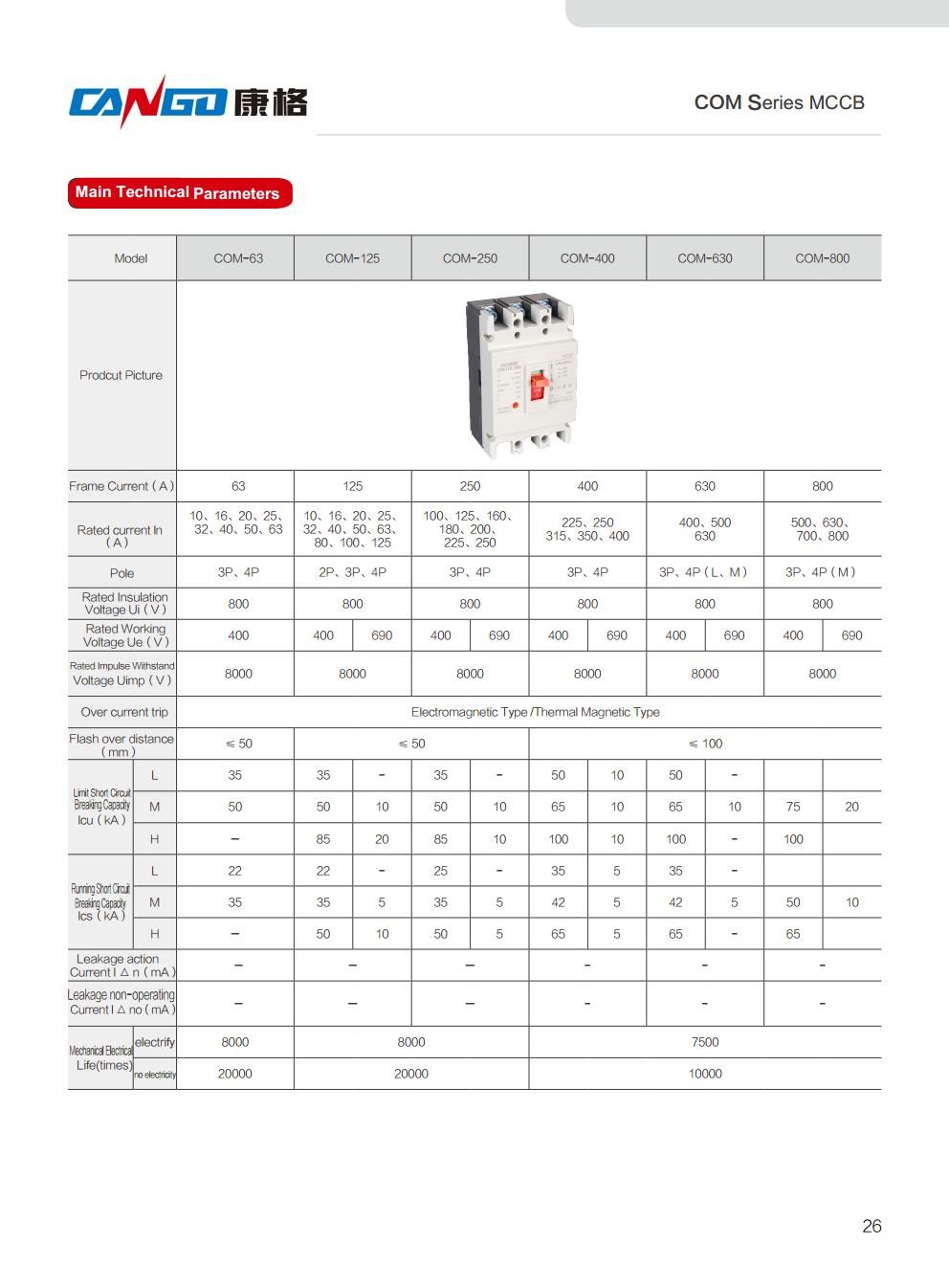

Technical Parameters of COM series MCCB

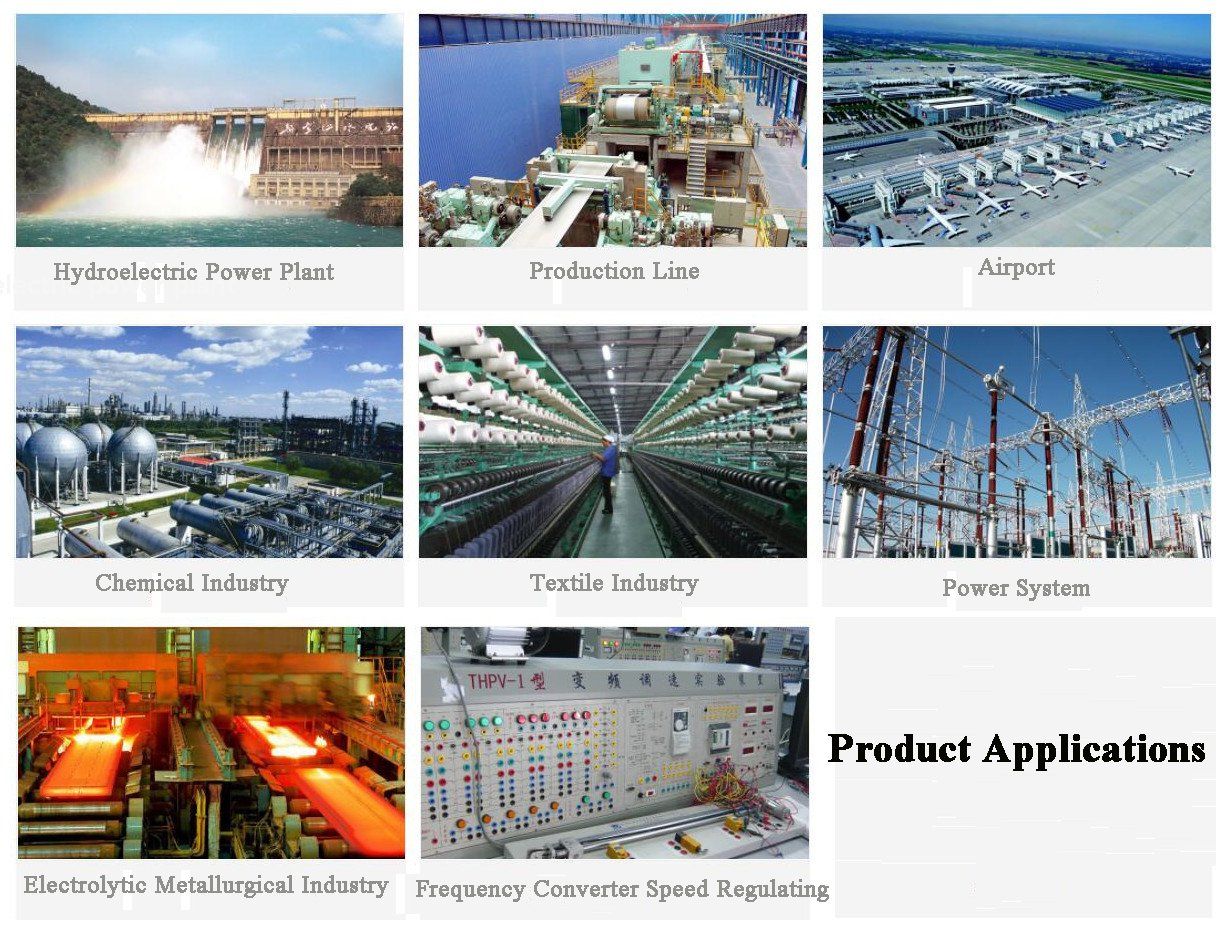

Application of our COM Series MCCB:

Our Factory:

Pls feel free to contact us.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
