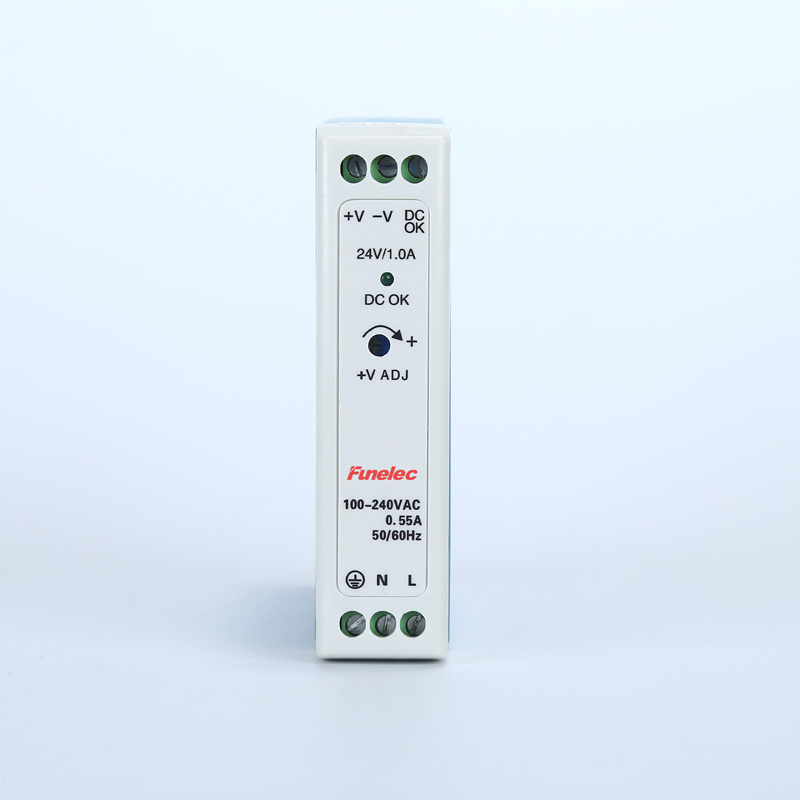

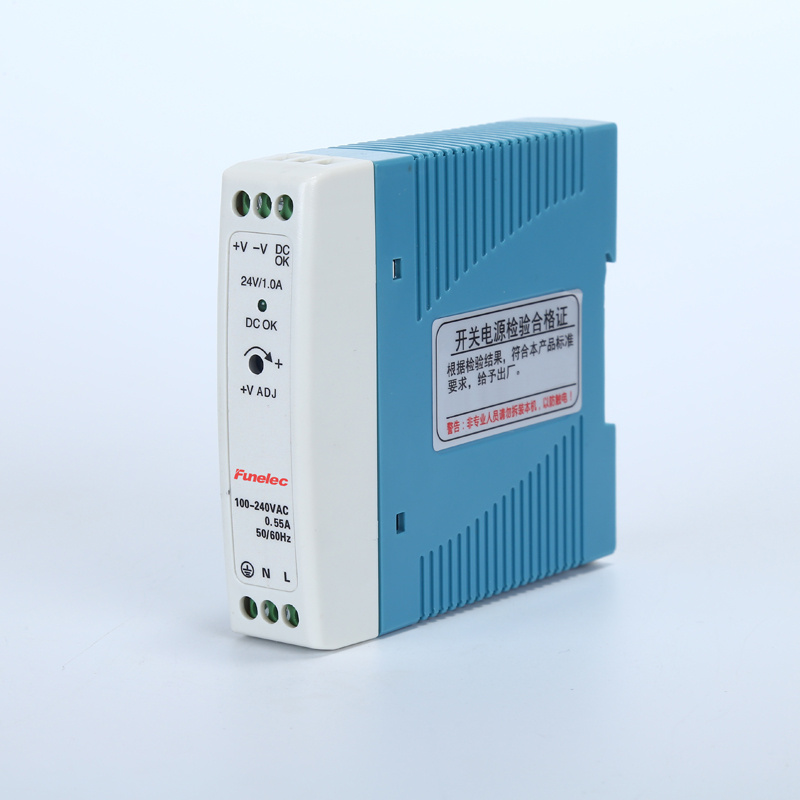

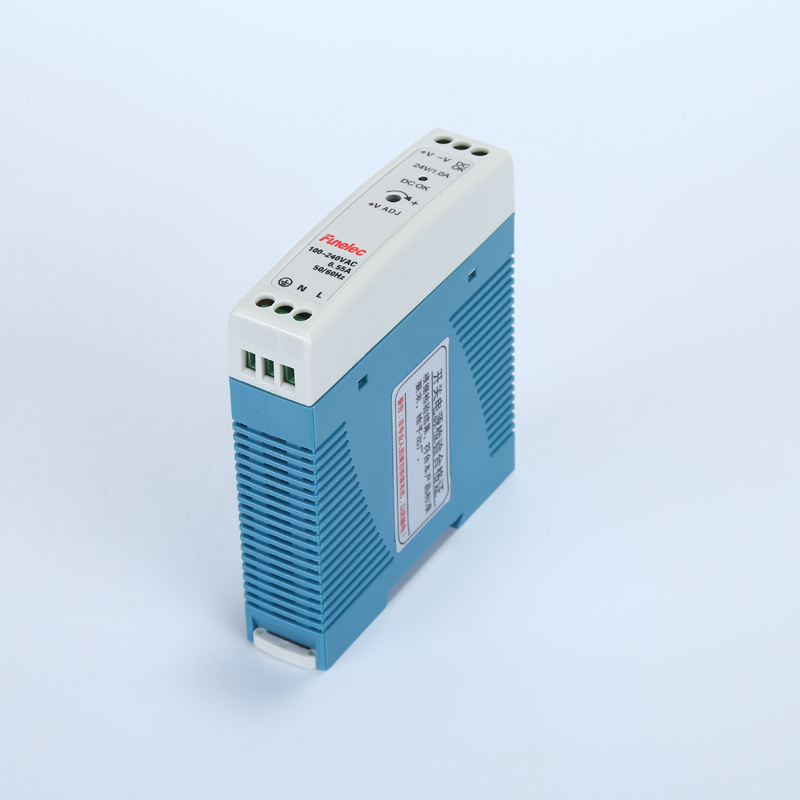

Mdr-20W-24V DC 0.83 AMP Slim DIN Rail Switching Power Supply LED Switching Power Supply
| Price: |
US $ 6.58-7.6/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
MDR-20-24 |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
1 - 50W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CB |
| Brand: |
Funelec |
Product Description
Wenzhou Funelec Electric Co., Ltd. is a high-tech enterprise which is engaged in the design, development, production switching power series products. we are a professional manufacturer of power supplies ,all of our products have approved CE CB and ISO9001.
The EFC capacitors and our own transformers make our products have 3 years warranty,The payment terms which we accept L/C T/T westion union and paypal !
We get a good feedback from our customers ,what we want to do is make your business easy ,
We accept OEM and Sample order,MOQ IS 1PC .| MODEL | MDR-20-5 | MDR-20-12 | MDR-20-15 | MDR-20-24 |
| | DC VOLTAGE | 5V | 12V | 15V | 24V |
| | RATED CURRENT | 3A | 1.65A | 1.3A | 0.83A |
| | CURRENT RANGE | 0-3A | 0-1.65A | 0-1.3A | 0-0.83A |
| | RATED POWER | 15W | 20W | 19.5W | 20W |
| | RIPPLE & NOISE (max.) Note.2 | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p |
| OUTPUT | VOLTAGE ADJ. RANGE | 4.75 ~ 5.5V | 10.8 ~ 13.2V | 13.5 ~ 16.5V | 21.6 ~ 26.4V |
| | VOLTAGE TOLERANCE Note.3 | ±2.0% | ±1.0% | ± 1.0% | ± 1.0% |
| | LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| | LOAD REGULATION | ±1.0% | ±1.0% | ± 1.0% | ± 1.0% |
| | SETUP, RISE TIME Note.5 | 500ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load |
| | HOLD UPTIME (Typ.) | 50ms/230VAC 20ms/115VAC at full load |
| | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| | FREQUENCY RANGE | 47 ~63Hz |
| INPUT | EFFICIENCY (Typ.) | 76% | 80% | 81% | 84% |
| | AC CURRENT (Typ.) | 0.55A/115VAC 0.35A/230VAC |
| | INRUSH CURRENT (Typ.) | COLD START 20A/115VAC,40A/230VAC |
| | LEAKAGE CURRENT | <1mA/240VAC |
| | OVERLOAD | 105 ~ 160% rated output power |
| PROTECTION | Protection type : Constant current limiting, recovers automatically after fault condition is removed |
| | OVER VOLTAGE | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 17.25 ~ 20.25V | 27.6 ~ 32.4V |
| | Protection type : Shut down o/p voltage, re-power on to recover |
| FUNCTION | DC OK ACTIVE SIGNAL (max.) | 3.75 ~ 6V / 50mA | 9 ~ 13.5V / 40mA | 11.5 ~ 16.5V / 40mA | 18 ~ 27V / 20mA |
| | WORKING TEMP. | -20 ~ +70C (Refer to "Derating Curve") |
| | WORKING HUMIDITY | 20 ~ 90% RH non-condensing |
| ENVIRONMENT | STORAGE TEMP., HUMIDITY | -40 ~ +85C, 10 ~ 95% RH |
| | TEMP. COEFFICIENT | ±0.03%/C (0 ~ 50C) |
| | VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 |
| | SAFETY STANDARDS | UL508, TUV EN60950-1 approved |
| SAFETY & | WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| EMC | ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25C/ 70% RH |
| (Note 4) | EMC EMISSION | Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3 |
| | EMC IMMUNITY | Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024,EN61000-6-1,EN61204-3, light industry level, criteria A |
| | MTBF | 236.9K hrs min. MIL-HDBK-217F (25C) |
| OTHERS | DIMENSION | 22.5*90*100mm (W*H*D) |
| | PACKING | 0.19Kg; 70pcs/21.5Kg/0.91CUFT |
| NOTE | 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. |
| 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor. |
| 3.Tolerance : includes set up tolerance, line regulation and load regulation. |
| 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
| 5.Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time. |
