| Prod Model: |
PS-35-12 |
| Output Voltage: |
12VDC |
| Output Voltage Range: |
10.8 to 13.2VDC |
| Output Current: |
3A |
| Output Power1: |
36W |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
1 - 50W |
| Input Voltage: |
220V |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Power Supplying System: |
Level 1 Power Distribution Equipment |
| Certification: |
FCC |
| Connection Mode: |
Switching Power Supply |
| Voltage Regulating Mode: |
Switch Power Supply |
| Brand: |
Meanwell |
Product Description

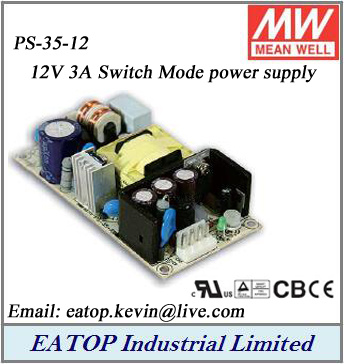

Mean well 12V 3A 36W single output ac dc power supply Meanwell PS-35-12
PS-35-12 Short Brief:
Meanwell PS-35-12 is a 12V 36W switch mode power supply
Mean well PS-35-12 Features:
- Meanwell Slim Power Supply
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at 60KHz
- 2 years warranty
Meanwell PS-35-12 Specification:
| MODEL | PS-35-3.3 | PS-35-5 | PS-35-7.5 | PS-35-12 |
| OUTPUT | DC VOLTAGE | 3.3V | 5V | 7.5V | 12V |
| RATED CURRENT | 6A | 6A | 4.7A | 3A |
| CURRENT RANGE | 0 ~ 6A | 0 ~ 6A | 0 ~ 4.7A | 0 ~ 3A |
| RATEDPOWER | 19.8W | 30W | 35.25W | 36W |
| RIPPLE & NOISE E | 80mVp | 100mVp | 100mVp | 120mVp |
| VOLTAGE ADJ. RANGE | 3.14 ~ 3.63V | 4.75 ~ 5.5V | 7.13 ~ 8.25V | 10.8 ~ 13.2V |
| VOLTAGE TOLERANCE | ±2.0% | ±2.0% | ±1.0% | ±1.0% |
| LINEREGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| LOADREGULATION | ±1.0% | ±1.0% | ±1.0% | ±0.5% |
| SETUP.RISEHOLD.TIME | 1200ms, 30ms/230VAC,1200ms,30ms/115VAC at full load |
| HOLD TIME | 50ms/230VAC,10ms/115VAC at full load |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~370VDC |
| FREQUENCYRANGE | 47 ~ 440Hz |
| EFFICIENCY | 70% | 78% | 80% | 81% |
| AC CURRENT | 0.75A/115VAC 0.5A/230VAC |
| INRUSH CURRENT | COLD START 23A/115VAC 45A/230VAC |
| LEAKAGE CURRENT | <2mA / 240VAC |
| PROTECTION | OVERLOAD | 105 ~ 150% 105 ~ 160% rated output power (3.3V: rated output power) |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 3.8 ~ 4.95V | 5.75~ 6.75V | 8.63 ~ 10.5V | 13.8 ~ 16.2V |
| Protection type : shut down O/P voltage,re-power on to recover |
| ENVIRONMENT | WORKING TEMP | -20~+65°C (refer to output load derating curve) |
| WORKINGHUMIDITY | 20~90% RH non-condensing |
| STORAGE TEMP HUMIDITY | -20~+85°C 10~95%RH |
| TEMPCOEFFICIENT | ±0.05%/°C(0~50°C) |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, Period for 60min.each along X, Y, Z axes |
| SAFETY&EMC | SAFETY STANDARDS | U60950-1, TUV EN60950-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| ISOLATIONRESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH |
| EMC EMISSION | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 |
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, Light industry level, criteria A |
| QTHERS | MTBF | 588.8Khrs MIL-HDBK-217F(25°C) |
| DIMENSION | 101.6*50.8*24mm (L*W*H) |
| PACKING | 0.124Kg;96PCS/12.9Kg/0.8CUFT |
Mechanical Specification:
PS-35-12 Weight: 0.124kg
Dimensions: 101.6 x 50.8 x 24 mmPS-35-12Mean well 12V 3A 36W single output ac dc power supply Meanwell PS-35-12
