| Prod Model: |
NES-100-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item No: |
Nes-100-12 |
| Rated Power: |
100W |
| Output Voltage: |
11.4~13.2V |
| Rated Current: |
850mA |
| Efficiency: |
83% |
| Input Voltage Range: |
100-264V |
| Application: |
LED Lighting, CCTV Camera, DVR, Industrial Equipm |
| Frequency Range: |
47~63Hz |
| Material: |
Metal Case |
| Product Dimension: |
159*97*38mm(L*W*H) |
| Output Type: |
Single |
| Warranty: |
>2 Years |
| Output Power: |
101 - 200W |
| Input Voltage: |
Full Range |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
EMC |
Product Description

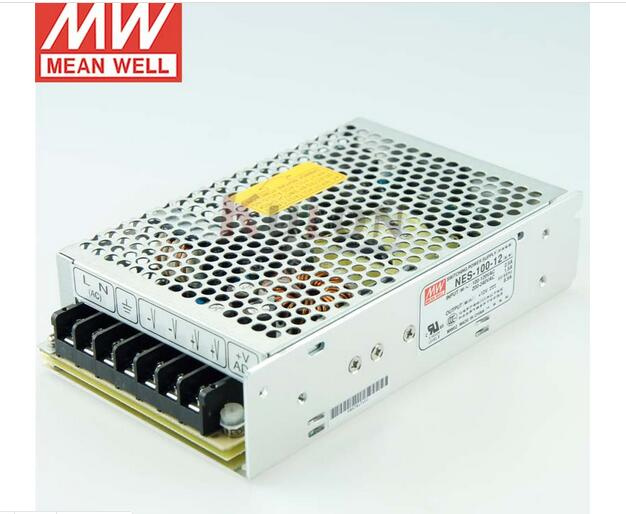

Meanwell 100w 12V indoor use switching power supply
Features:
1.100W Single output switching power supply
2. Economical non-PFC models with complete safety certificates (UL/CB/EMC/CCC)
3. Miniature size suitable for varieties of installation conditions
4. Universal AC input/ Full range
5. Complete Protections: Short circuit / Overload / Over voltage / Over temperature
6. Cooling by free air convection
7. LED indicator for power on
8. 100% full load burn-in test
9. 2 years warranty
10.Strong built for heavy duty and long usage performance
11.Wattages from 15~350W switching power supply
Specification
MODEL | NES-100-12 |
| OUTPUT | DCVOLTAGE | 12V |
| RATEDCURRENT | 8.5A |
| CURRENTRANGE | 0~8.5A |
| RATEDPOWER | 102W |
| RIPPLE&NOISENOTE.2 | 120MVP-P |
| VOLTAGEADJ.RANGE | 11.4~13.2V |
| VOLTAGETOLERANCENOTE.3 | ±1.0% |
| LINEREGULATION | ±0.5% |
| LOADREGULATION | ±0.5% |
| SETUP.RISEHOLD.TIME | 1000ms,20ms/230VAC ,1000ms, 20ms/115VAC at fill load |
| INPUT | VOLTAGERANGE | 85 ~ 132VAC / 176 ~ 264VAC selected by switch 248 ~ 373VDC |
| FREQUENCYRANGE | 47~63HZ |
| EFFICIENCY | 83% |
| AC CURRENT | 2a/115vac 1.2a/230vac |
| INRUSH CURRENT | Cold start 45A |
| LEAKAGECURRENT | <2mA/240VAC |
| PROTECTION | OVERLOAD | 110~150%rated output power |
| Protection type:Hiccup mode,recovers automatically after r fault condition is removed |
| OVER VOLTAGE | 13.8~16.2V |
| Protection type: Hiccup mode, recovers automatically after fault condition is removed |
| | |
| |
| ENVIRONMENT | WORKING TEMP | -20~+60ºC(Refer to "Derating Curve") |
| WORKING HUMIDITY | -20~90%Rhnon-condensing |
| STORAGE TEMP HUMIDITY | -40~+85ºC 10~95%RH |
| TEMPCOEFFICIENT | ±0.03%(0~45ºC) |
| VIBRATION | 10~500HZ,2G10min/1cycle period for 60 min each alongX,Y,Zaxes |
| SAFETY&EMC | SAFETYSTANDARDS | UL60950-1 Approved,CB Approved by TUV(design Refer to IEC 60950-1) |
| WITHSTAND VOLTAGE | 1/P-0/P:3KVAC 1/P-FG:1.5KVAC 0/P-FG:0.5KVAC |
| ISOLATIONRESISTANCE | 1/P-0/P,1/P-FG,0/P-FG:100M Ohms/500VDC |
EMI CONDUCTICN&
RADIATION | Compliance to EN55022(CISPR22)classB |
| HARMONICCURRENT | Compliance to EN61000-3-2,-3 |
Applications
Our company-- Honglet can support your needs by the technology you are working on. Whether it is for a specifical need for a Medical Power Supply or just a generic Universal Input Power Supply, we probably have a power supply solution for you.
Other power supply applications and uses include: LED lighting, CCTV Camera, Low noise amplifiers, signal prosessing, data acquisition, sensors, automatic test equipment, laboratory test equipment, control circuits, etc.
Our Service
Famous brand + Quality Assurance + Fast Delivery + Satisfied Customer Service
1.We supply real MEANWELL brand, products approved by UL, CE, CB, RoHS, etc.
2.We will find the cheapest and reliable shipping term and show you the freight charge and shipping time.
Regarding to the urgent order, quick shipping term and freight will be advised to you for consideration.
3.Delivery time is guaranteed. For our standards products, we usually have stocks for prompt delivery of small/medium quantity orders.
For large quantity or new product orders, 3-5 weeks lead-time is needed.
