Mechanical Cabinet Thermostat Temperature Controller Fzk 012

Name: Mechanical Cabinet Thermostat Temperature Controller Fzk 012
Brand: all-electronics-online.com
SKU: 782134485
Availability: InStock
Rating: 4.8 (119 reviews)

Price:	US $ 4.5-5.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FZK 011
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sensor Element:	Thermostatic Bimetal
Contactor:	Normally Open Cloased
Range:	5-60
Mounting:	35mm DIN Rail
Size:	60X50X38mm
Weight:	100g
Control Type:	Mechanical
Type:	Temperature Controller
Material:	Plastic
Operating Principle:	Thermostatic

Product Description

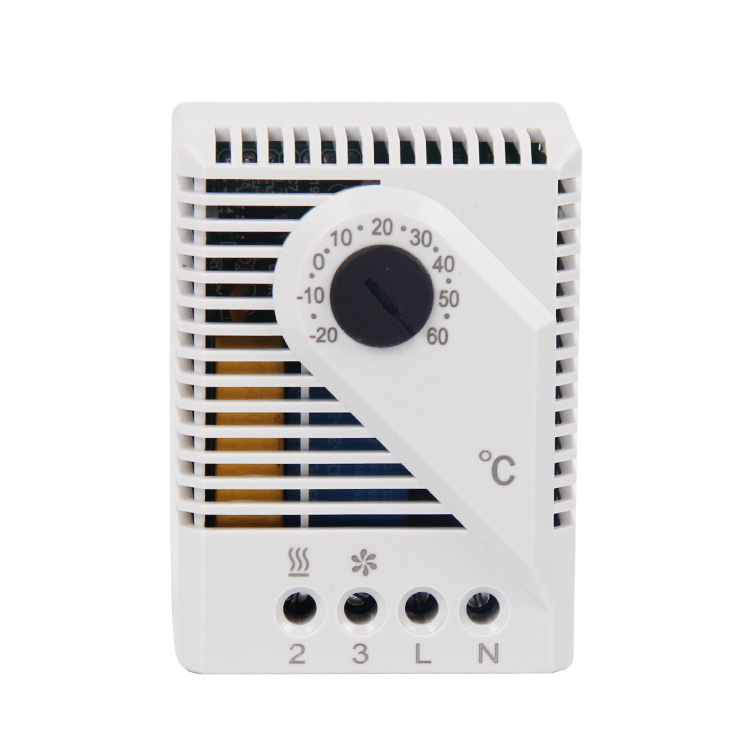

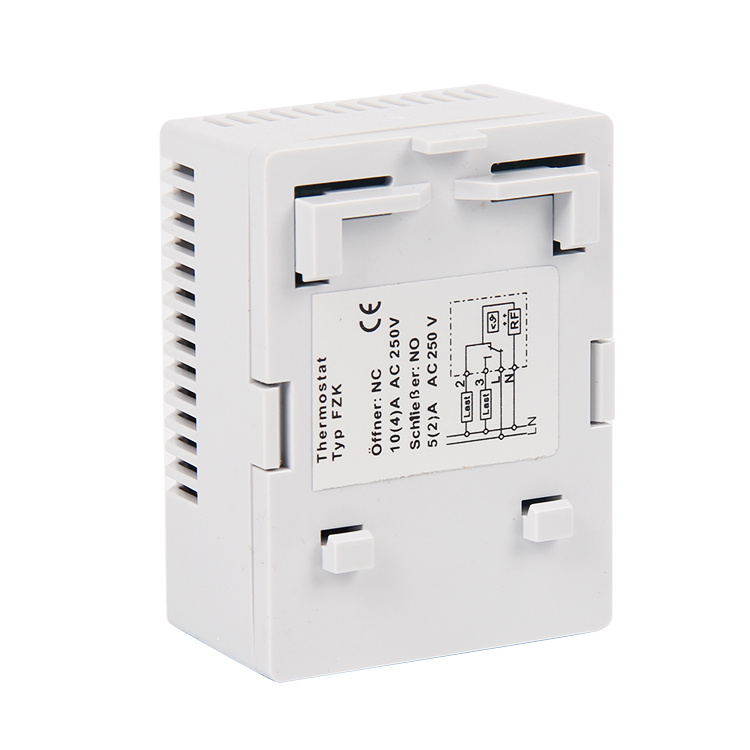

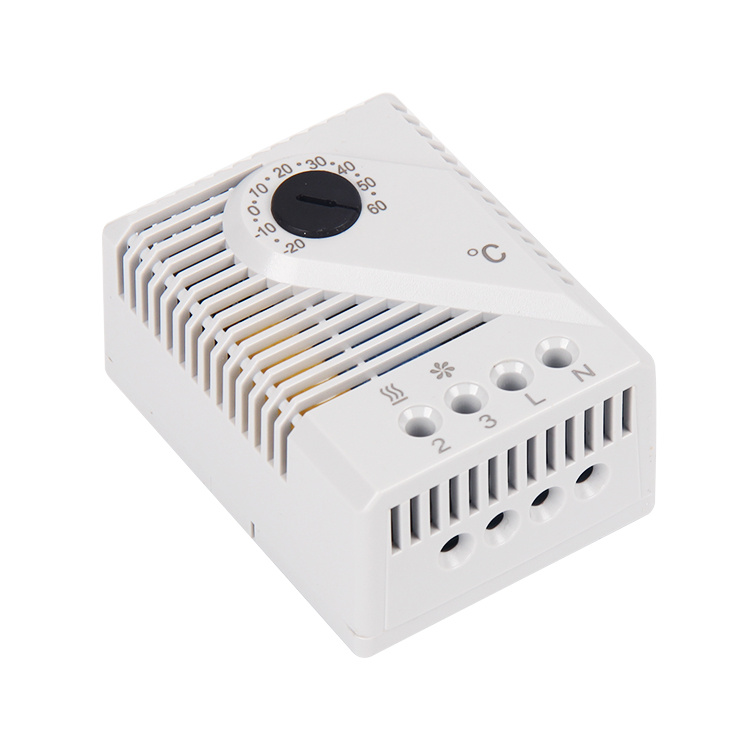

Mechanical Cabinet Thermostat Temperature Controller FZK 012

Industrial Thermostat Temperature Controller
1.Adjustable Temperature
2.High Switching Capacity
3.Small Hysteresis
4.Terminal Easy Accessible
5.CE , LVD approved
6.2 years warranty

Switch temperature difference	4K (± 1.5K tolerance)
Sensor element	thermostatic bimetal
Service life	> 100,000 cycles
Max. Switching capacity	250VAC, 10 (4) A 120VAC, 10 (4) A DC 30W
Connection	4-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm²
Mounting	clip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series)
Casing	plastic according to UL94 V-0, light grey
Dimensions Weight Protection type	67 x 50 x 38mm approx. 100g IP20
Operating / Storage	-45 to +80°C (-49 to +176°F) max. 90 % RH (non-condensing)
Fitting position	variable

Order No.

Setting range	Operating Voltage	Art. No. Contact Maker (NO)	Approvais
5 ~ +60°C	230VAC	01141.0-00	CE
40 ~ +140°F	230VAC	01143.0-00	CE
-20 ~ +30°C	230VAC	01158.0-00	CE
+40 ~ +140°F	120VAC	01141.9-00	CE
+5 ~ +60°F	120VAC	01143.9-00	CE
