| Prod Model: |
h05vvc4v5-k |
| Conductor: |
Bare Copper or Tinned Copper |
| Color ID: |
in Accordance with HD402 Standard |
| Application Standard: |
HD21.3 S3,VDE-0281 Part-3,Ce Low Voltage Directive |
| Features: |
Ultrafine Conductor,Soft,Small Bending Angle |
| Conformity Approval: |
RoHS Ce |
| Rated Voltage: |
300/500V |
| Min. Bending Radius(Fixed/Movable): |
Fixed:5*D(Cable Od);Movable:8*D(Cable Od) |
| Norminal Section(mm2): |
2*0.75/2*1.0/2*1.5/2*2.5/2*4.0/3*0.75/4*0.75...... |
| Appilcation: |
Electrical Installation and Connections |
| Description: |
Mechanical Elevator Control Cable H05vvc4V5-K |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Application: |
Electrical Installation and Connections |
| Range Of Application: |
Wiring in Switchboard of Electrical Appliance, etc |
| Brand: |
Jiukai |
Product Description
Item: mechanical elevator control cable h05vvc4v5-k --- Code:8544492100 Product Description & ParametersAPPLICATION
For external & internal wiring of electrical instrument,power device & automatic device without forcible traction.Without direction,at times for movable wiring.

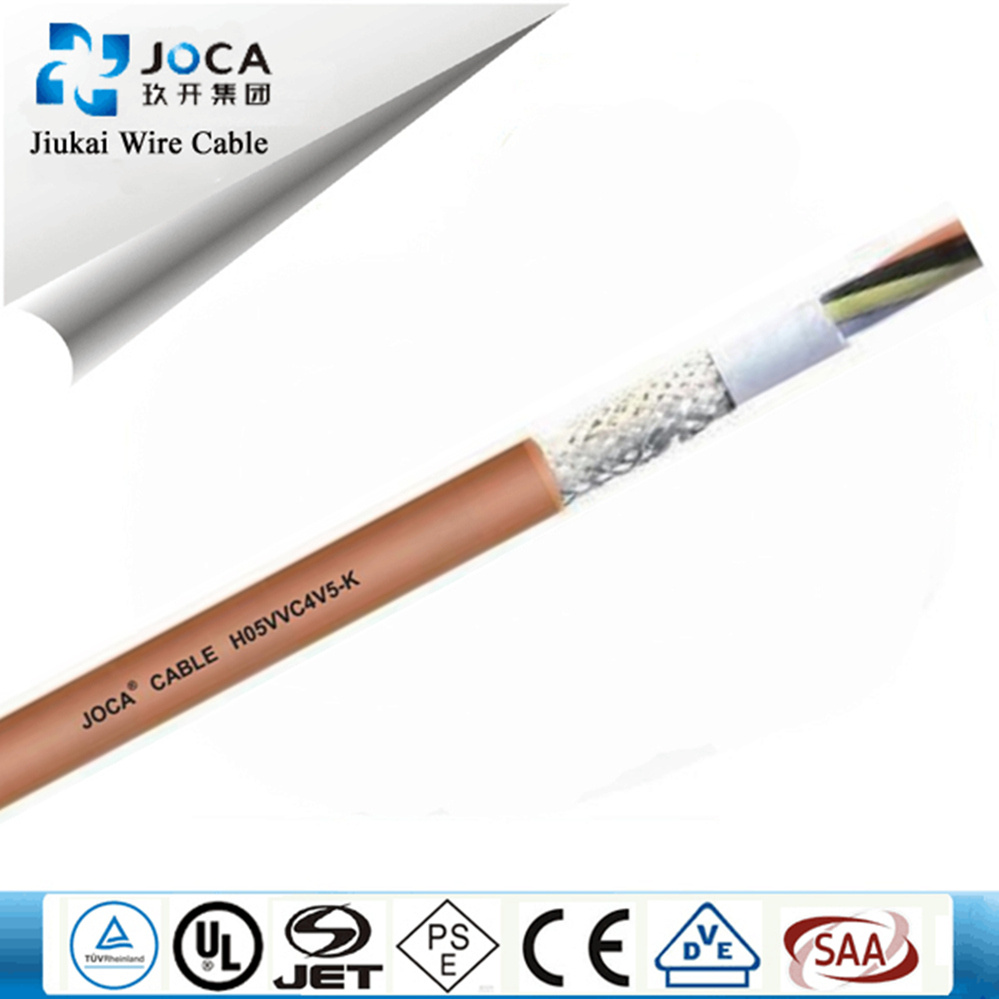

STRUCTURE
Conductor: Stranded bare copper or tinned copper in accordance with VDE 0281 Part5 HD21.583S3 IEC227-5
Insulation:PVC/TI2 polyvinyl vhloride in accordance with DIN VDE 0281
Colour ID: Core color In accordance with VDE 0293 Standard
Shielding: Copper wire braiding Shielding
Sheath material: PVC/TM5 PVC
STANDARD: IEC227-7:1995, HD 21.13
FEATURES & CONFORMITY:Superfine conductor,flexible and small bend angle
Good oil resistance
In accordance with EU coordination standard
Conformity approval: RoHS CE

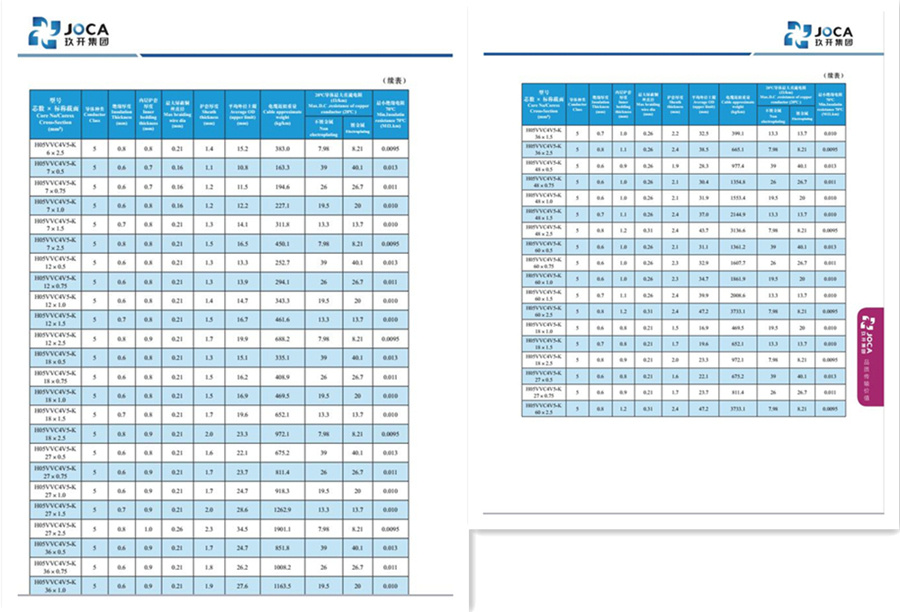

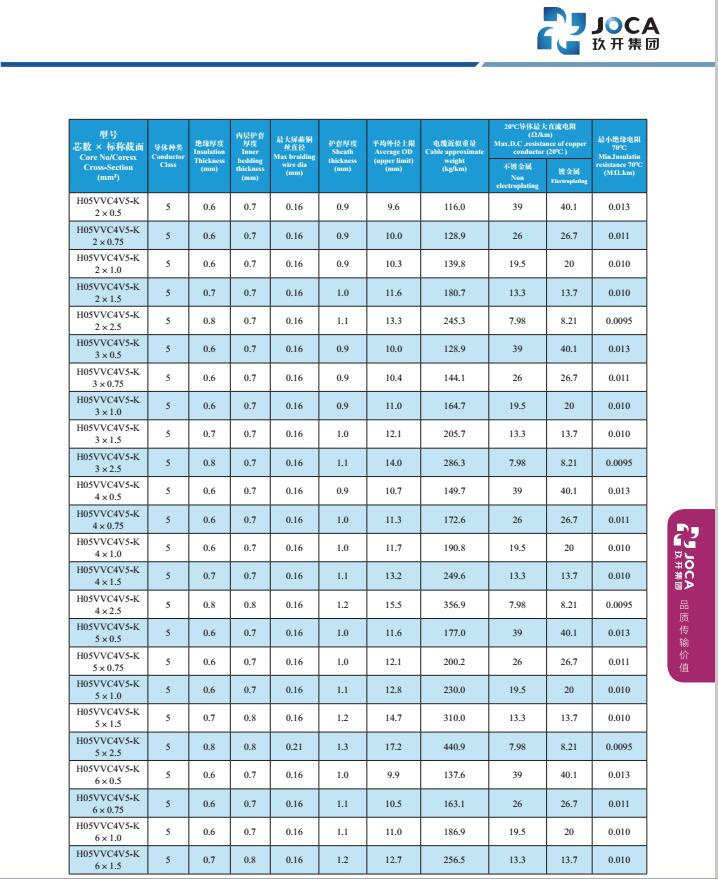

TECHNICAL PARAMETERS: Rated voltage:300/500V
Test voltage: insulation thickness<=0.6:1500V; insulation thickness>0.6:2000V
Min. bending radius: Fixed installation: 6D
Movable installation: 12D
Temperature Range: Fixed installation: -20ºC~+70ºC
Movable installation:-5ºC~+70ºC
Packaging & Shipping | Packaging Details: | Package:
1. Plastic/Wooden Drum: 100M/Roll,500M/Roll,1000M/Roll.
2. According to customer requiremet. |
|---|
| Delivery Detail: | 7-15 days |
|---|
Certification
Related product1: Solar Cable
2: Coaxial Cable
3: Electrical Wire
4: Elevator Cable
5: Submersible Pump Cables
1.Quality control: Our defective products rate is 0.01%
2.Economically priced, exquisitely made
3.Adequate supply capacity, punctual delivery time
4.Best of sales service are providedCompany Information
FAQ Q:What are the product's characteristics?
A:1.UV,ozone and hydrolysis resistant
2.High temperature resistant,the materials do not metl or flow
3.Good cold flexibility

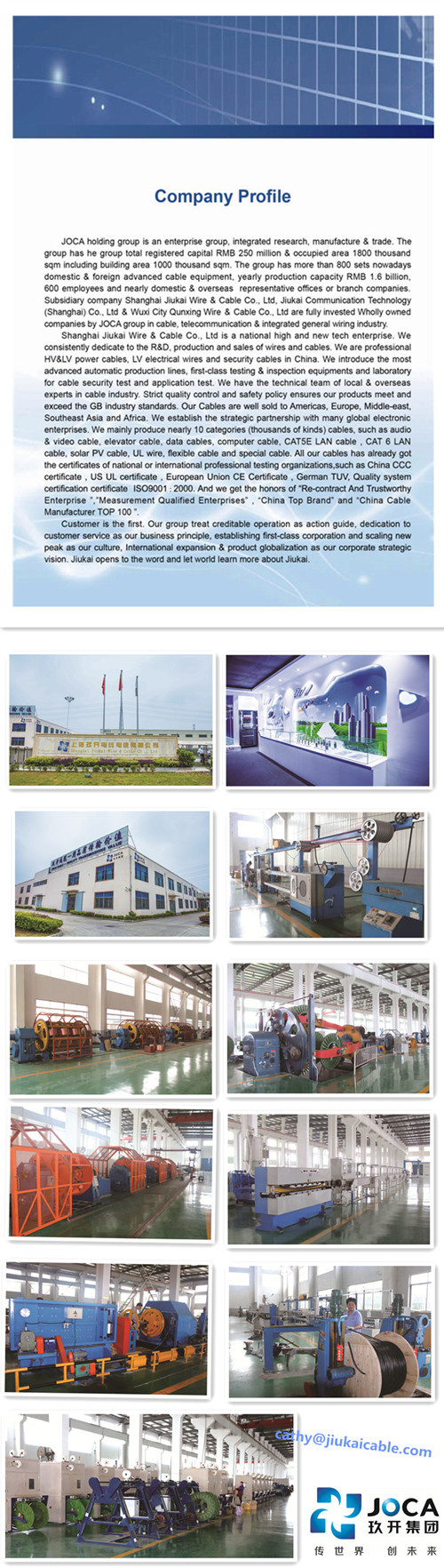

Q:What is the size of your company?
A:JOCA holding group is an enterprise group, integrated research, manufacture & trade.
The group has he group total registered capital RMB 250 million & occupied area 1800 thousand sqm including building area 1000 thousand sqm.
The group has more than 800 sets nowadays domestic & foreign advanced cable equipment, yearly production capacity RMB 1.6 billion,600 employees and nearly domestic & overseas representative offices or branch companies.
Subsidiary company Shanghai Jiukai Wire & Cable Co., Ltd, Jiukai Communication Technology (Shangshai) Co., Ltd & Wuxi City Qunxing Wire & Cable Co., Ltd are fully invested Wholly owned companies by JOCA group in cable, telecommunication & integrated general wiring industry.
Q:What is the turnover of the company?
A:Our turnover was 7 billion last year.

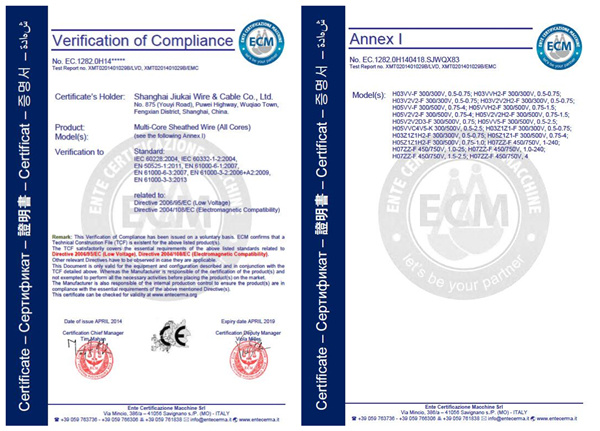

Q:What kind of certifications do you have?
A:Such as China CCC certificate,US UL certificate,European Union CE Certificate,German TUV,Quality system certification certificate ISO9001:2000,Japanese Standard PSE certificate and so on,
And we get the honors of "Re-contract And Trustworthy Enterprise ","Measurement Qualified Enterprises" , "China Top Brand" and "China Cable Manufacturer TOP 100 " and so on.
Q: Does the company take relevant exhibition ?
A:Yes,of course!We have taken relevant exhibition in Australia,Japan, Thailand, the united Arab emirates,Mexico
