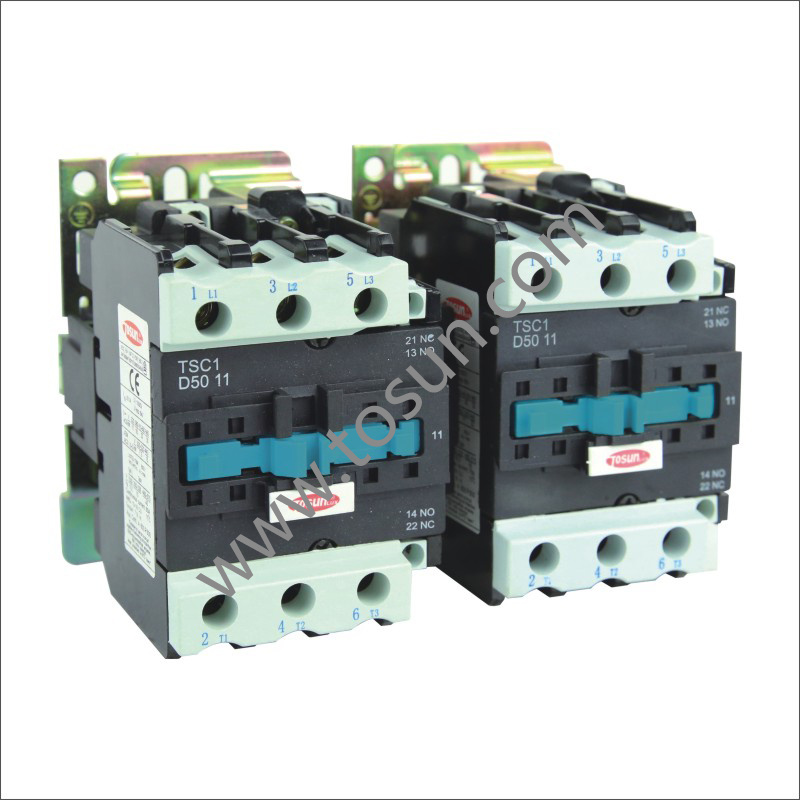

Mechanical Interlocked AC Contactor (LC2)

Name: Mechanical Interlocked AC Contactor (LC2)
Brand: all-electronics-online.com
SKU: 755940235
Availability: InStock
Rating: 4.5 (53 reviews)

Price:	US $ 5.3-27.7/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TSC2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Poles:	3p, 4p
Rated Heat Current (a):	9-800
Usage:	Household Appliances Relay, Communication Relay
Action Principle:	Electromagnetic Type

Product Description

Specification

Model	Rated current AC-3(A)	Controlled power(KW)
Model	Rated current AC-3(A)	220V	380V	415V	440V	660V
TSC2-D09	9	2.2	4	4	4	5.5
TSC2-D12	12	5.5	5.5	5.5	5.5	7.5
TSC2-D18	18	7.5	7.5	9	9	10
TSC2-D25	25	5.5	11	11	11	15
TSC2-D32	32	7.5	15	15	15	18.5
TSC2-D40	40	18.5	18.5	22	22	30
TSC2-D50	50	15	22	25	30	33
TSC2-D63	63	18.5	30	37	37	37
TSC2-D80	80	22	37	45	45	45
TSC2-D95	95	22	45	45	45	41
TSC2-D115	115	30	55	59	59	80
TSC2-D150	150	40	75	80	80	100
TSC2-D170	170	55	90	100	100	110
TSC2-D205	205	63	110	110	110	129
TSC2-D245	245	75	132	132	132	160
TSC2-D300	300	100	160	200	200	220
TSC2-D410	410	110	220	250	250	280
TSC2-D475	475	148	265	280	280	355
TSC2-D620	620	200	335	400	400	450

Model	Number of Poles	Rated current AC-3(A)	Rated current In/A	Controlled power(KW)
Model	Number of Poles	Rated current AC-3(A)	Rated current In/A	440V	660V
TSC2-F115	3P	115	250	4	5.5
TSC2-F1154	4P	115	250	5.5	7.5
TSC2-F150	3P	150	355	9	10
TSC2-F1504	4P	150	355	11	15
TSC2-F185	3P	185	425	15	18.5
TSC2-F1854	4P	185	425	22	30
TSC2-F225	3P	225	500	30	33
TSC2-F2254	4P	225	500	37	37
TSC2-F265	3P	265	630	45	45
TSC2-F2654	4P	265	630	45	41
TSC2-F330	3P	330	800	59	80
TSC2-F3304	4P	330	800	80	100
TSC2-F400	3P	400	800	100	110
TSC2-F4004	4P	400	800	110	129
TSC2-F500	3P	500	1000	132	160
TSC2-F5004	4P	500	1000	200	220
TSC2-F630	3P	630	1250	250	280
TSC2-F6304	4P	630	1250	280	355
TSC2-F800	3P	800	1250	400	450
