Medical Equipment Cable 2 Core with Ldw18

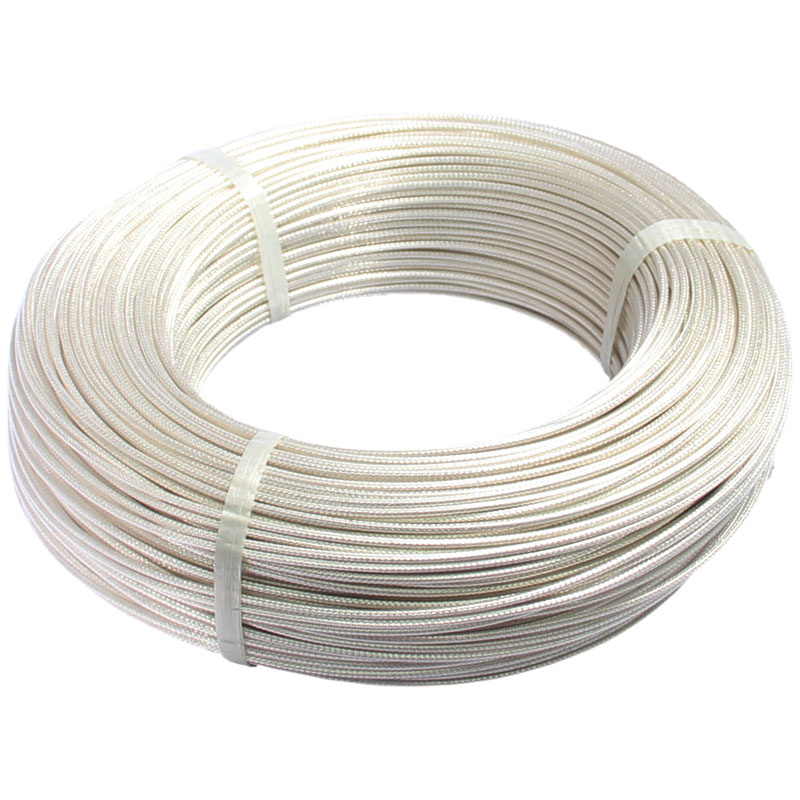

Name: Medical Equipment Cable 2 Core with Ldw18
Brand: all-electronics-online.com
SKU: 695736155
Availability: InStock
Rating: 4.6 (111 reviews)

Price:	US $ 1.26-5.9/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LDW18
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
2 Core --Medical Equipment Cable:	(Ldw18)
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Certification:	RoHS
Conductor Material:	Tinned Copper
Sheath Material:	Silicone Rubber&PVC
Insulation Material:	FEP&PFA
Brand:	Dewei

Product Description

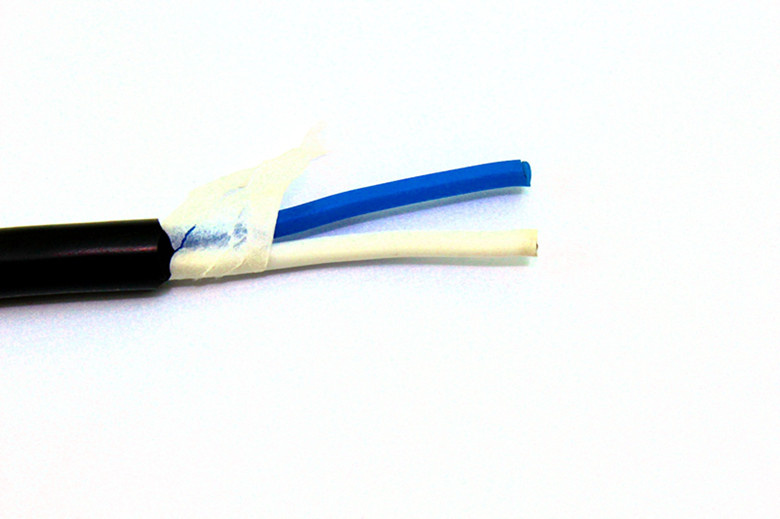

2 Core --Medical Equipment Cable
Nominal Voltage: 300V/500V
Temperature Range: -40º C to 250º C
Conductor: Tinned copper
Insulator: FEP&PFA
Jacket: Silicone rubber&PVC
Braid: Silver copper
O. D. Tolerance: ± 0.10mm
Color: Black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow. Ect

Size(AWG)	con.of conductor.(MM)	Thickness of insulator(MM)	over diameter(MM)	Packing(MT/COIL)
30*2C	7/0.10	0.25	2.62	305
28*2C	7/0.12	0.25	2.74	305
26*2C	19/0.10	0.25	3.00	305
24*2C	19/0.12	0.25	3.02	305
22*2C	19/0.15	0.25	3.52	100

DONGGUAN DEWEI WIRE Co., Ltd, established in 2004, specializes in manufacturing various kinds of silicone sleeve and electrical cable: Silicone rubber wire, FEP wire, PFA wire, PTFE wire, ETFE wire, heating wire, braided wire, power cable, twin flat cable, coaxical cable, high temperature cable and high voltage cable which can meet the requirements of UL, VDE, CCC.

Besides, we set up a wire processing workshop to provide customers with well processed wire group and wire harness of the batteries, the brushes, electric adjustment, steering gear, all kinds of JST, AMP connector, T-type plugs, banana plugs etc,

We set up and implement quality management system strictly according to international standard ISO9000, and had been awarded the certification of AMT ISO 9001: 2008 in 2009.

Our philosophy is quality-oriented, continuous innovative, reputation first and to treat our clients sincerely. In the meantime we persist in providing our customers with competitive high-quality products, creating a belief that quality decides the survival of the company.

Welcome to visit and give advice, let' S work together and create brilliant future.
