Medium Voltage Power Cable

Prod Model:	YJV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Power Cable
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	AC Cable
Insulation Material:	XLPE
Certification:	ISO
Sheath Material:	PVC or PE
Wire Core Material:	Copper
Brand:	Yifang

Product Description

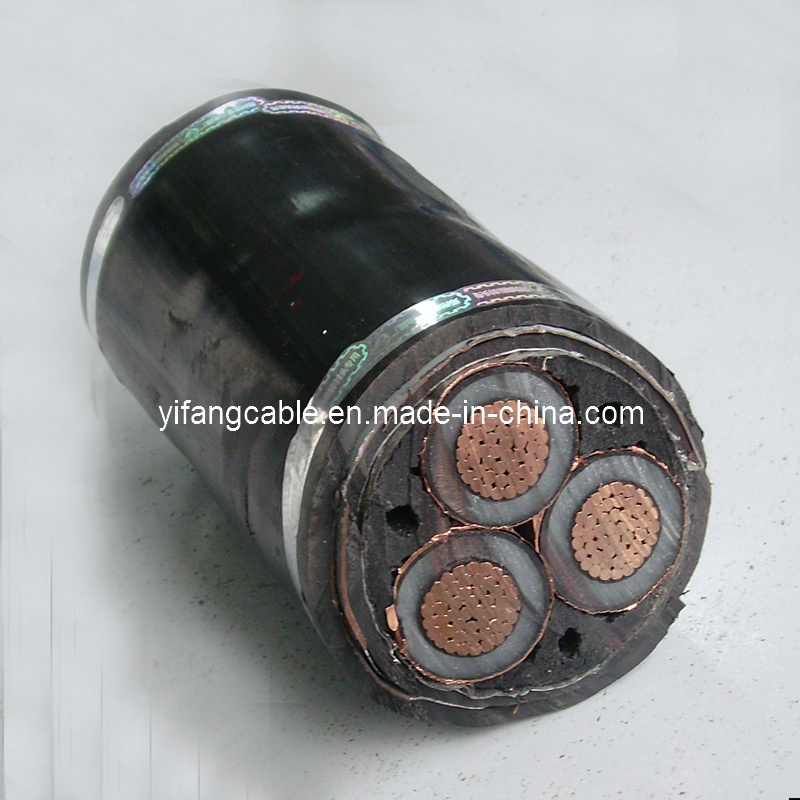

XLPE insulated armoured FR power cable
Cable Construction:
Conductor: Al or Copper Wire
Rated Voltage: 6~35kV
Insulation: XLPE
Inner sheath: PVC
Armour: Galvanized steel tape
Outer Sheath: PVC or PE
Chinese code: YJV22, YJLV22, YJV23, YJLV23
Application
This series of XLPE power cable is mainly laid underground. Cable can bear outer machanic Force. but power cable shouldnot bear large tractional Force.
General Characteristics
This product is suitable for use in rated AC voltage (Uo / U) 6/6 ~26 / 35kV system transmitting and distributing lines. According to different sheath make UPS, they can be used for layingin the air (cable bridges, indoor wall supponts and groove boxes) and in soil (direct burying, cable canals and pipelines, etc. )
XLPE insulated power cable has anumber of advantages overpaper insulated and PVC insulated cable. XLPE cable has excellent electric property, mechanical property, high ageing resisting, environmetal stress resisting anti-chemical corrossion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laidwith no drop restriction. Various offlame-retardant andnon-flame retardant XLPE cable can be manufacturedwith three technology
(peroxide, silance and irradiation crosslinking). The flame-retardant cable covers all kinds of low-smoke, low-halogen, low-smoke halogen free, and non-smoke nonhalogenated and three classes ofA, B, C.
Our XLPE cable can be manufactured according to company's specification which is equivalent to IEC60502, IEC 60 332, and IEC 60 754. Some of indexes are superior to above international standard IEC. Some of special XLPE cable can be manufactured according to the other standards required by customs.
XLPE cable having higher long-term working temperature and greater current rating, at the same environment XLPE cable may be reducedsize (nominal cross-section) 1 or 2 class in comparison with paper and PVC cable. This is not only improve the quality and properties of products, but also reduce cable's production costs.
STANDARDS
IEC BS DIN ASTM CSA NFC AS
